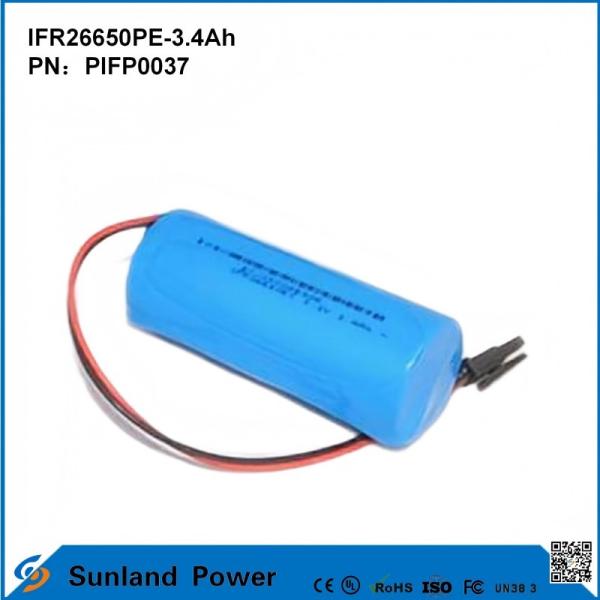

IFR26650PE-3.4Ah 3.2V LiFePO4 Battery Cell For Solar Light Flashlight Circle Life 2000 Times
IFR26650PE-3.4Ah 3.2V LiFePO4 Battery Cell For Solar Light Flashlight Circle Life 2000 Times
IFR26650PE-3.4Ah 3.2V LiFePO4 Battery Cell For Solar Light Flashlight Circle Life 2000 Times
IFR26650PE-3.4Ah 3.2V LiFePO4 Battery Cell For Solar Light Flashlight Circle Life 2000 Times
IFR26650PE-3.4Ah 3.2V LiFePO4 Battery Cell For Solar Light Flashlight Circle Life 2000 Times
IFR26650PE-3.4Ah 3.2V LiFePO4 Battery Cell For Solar Light Flashlight Circle Life 2000 Times
IFR26650PE-3.4Ah 3.2V LiFePO4 Battery Cell For Solar Light Flashlight Circle Life 2000 Times
IFR26650PE-3.4Ah 3.2V LiFePO4 Battery Cell For Solar Light Flashlight Circle Life 2000 Times
IFR26650PE-3.4Ah 3.2V LiFePO4 Battery Cell For Solar Light Flashlight Circle Life 2000 Times
IFR26650PE-3.4Ah 3.2V LiFePO4 Battery Cell For Solar Light Flashlight Circle Life 2000 Times
IFR26650PE-3.4Ah 3.2V LiFePO4 Battery Cell For Solar Light Flashlight Circle Life 2000 Times
IFR26650PE-3.4Ah 3.2V LiFePO4 Battery Cell For Solar Light Flashlight Circle Life 2000 Times
Specifications
Brand Name :
Sunland
Model Number :
IFR26650PE-3.4Ah 3.2V
Certification :
CE,SGS recognized,ISO9001 approved
Place of Origin :
GUANGZHOU CHINA
MOQ :
100PCS
Price :
USD 0.8-1.5/PCS
Supply Ability :
100000 PCS PER MONTH
Description

IFR26650PE-3.4Ah 3.2V LiFePO4 Battery Cell

IFR26650PE-3.4Ah 3.2V LiFePO4 Battery Cell For Solar Light Flashlight Circle Life 2000 TimesIFR26650PE-3.4Ah 3.2V LiFePO4 Battery Cell For Solar Light Flashlight Circle Life 2000 TimesIFR26650PE-3.4Ah 3.2V LiFePO4 Battery Cell For Solar Light Flashlight Circle Life 2000 TimesIFR26650PE-3.4Ah 3.2V LiFePO4 Battery Cell For Solar Light Flashlight Circle Life 2000 TimesIFR26650PE-3.4Ah 3.2V LiFePO4 Battery Cell For Solar Light Flashlight Circle Life 2000 TimesIFR26650PE-3.4Ah 3.2V LiFePO4 Battery Cell For Solar Light Flashlight Circle Life 2000 TimesIFR26650PE-3.4Ah 3.2V LiFePO4 Battery Cell For Solar Light Flashlight Circle Life 2000 Times

Specification

1.1. Electrical characteristics

No. Items Test Method and Condition Criteria
1 Standard Charge Charging the cell initially with constant current at 1C and then with constant voltage at 3.65V till charge current declines to 0.05C. N.A.
2 Rated Cap 0.2C Capacity measured with discharge current of 0.2C with 2.0V cut-off voltage after the standard charge. ³3300mAh
Rated Cap 0.5C Capacity measured with discharge current of 0.5C with 2.0V cut-off voltage after the standard charge. ³3250mAh
Rated Cap 1C Capacity measured with discharge current of 1C with 2.0V cut-off voltage after the standard charge. ³3200mAh
Rated Cap 2C Capacity measured with discharge current of 2C with 2.0V cut-off voltage after the standard charge. ³3200mAh
Rated Cap 3C Capacity measured with discharge current of 3C with 2.0V cut-off voltage after the standard charge. ³3200mAh
3 Cycle Life

Test condition:

Temperature: 23± 5°C

Charge: 1C CC to 3.65V, and CV to 0.05C cut off

Discharge: 1C discharge to 2.0V

80% or more of 1st cycle capacity at 1C discharge of operation

 ³ 2000 times
4

Storage

Performance

 Battery cell stored at 25°C with 50% SOC
1Month 3Month 6Month
Cap Retention 90% 85% 80%
Cap Recovery 95% 90% 85%
5 Initial Impedance Internal resistance measured at AC 1KHz after 50% charge £ 20mohm
6 Cell Voltage As of shipment 3.3V ~ 3.4V
No. Items Specifications
1 Charge cut-off voltage 3.65V
2 Nominal voltage 3.2V
3 Minimal capacity 3300mAh @ 0.2C Discharge
4 Nominal capacity 3400mAh @ 0.2C Discharge
5 Standard Charge current 0.2C
6 Standard charging method 1C CC (constant current) charge to 3.65V, then CV (constant voltage 3.65V) charge till charge current decline to £ 0.05C
7 Charging time Standard charge: 2.0 hours Ref
8 Max. charge current 1C
9 Max. continue discharge current 1C (Cell skin temperature cannot exceed 80°C)
10 Discharge cut-off voltage 2.0V
11 Operating temperature

Charging: -10°C ~ 45°C

Discharging: -20°C ~ 60°C

(Cell skin temperature cannot exceed 80°C)
12 Storage temperature/humidity

Temperature -10°C ~ +35°C

Humidity 65%±20%RH

(Recommended to store 23 ± 5°C for long term storage)
13 Cell Weight 80.0g±1.0g
14 Cell Dimension

Length: 65.0±0.3 mm

Width: 26.2±0.2 mm
