Specifications
Brand Name :
TKM MS
Model Number :
HC
Certification :
ISO9001:2008, SGS,Rohs
Place of Origin :
China
MOQ :
100pcs
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000000Pieces per month
Delivery Time :
15-20days
Packaging Details :
Polybag per pcs，50per cartoon
Key option :
Flat or Emboss
Back adhesive :
3M467/468
Type :
Meet Customer's Demand
Printing :
Silk Screen Printing

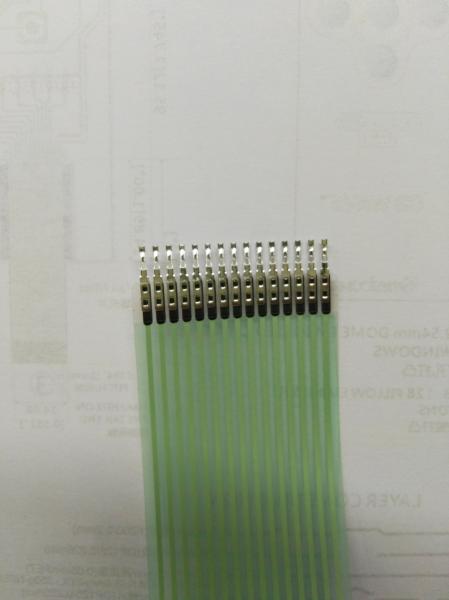

Connector :
Custom
Keypad Button Material :
Metal
Description

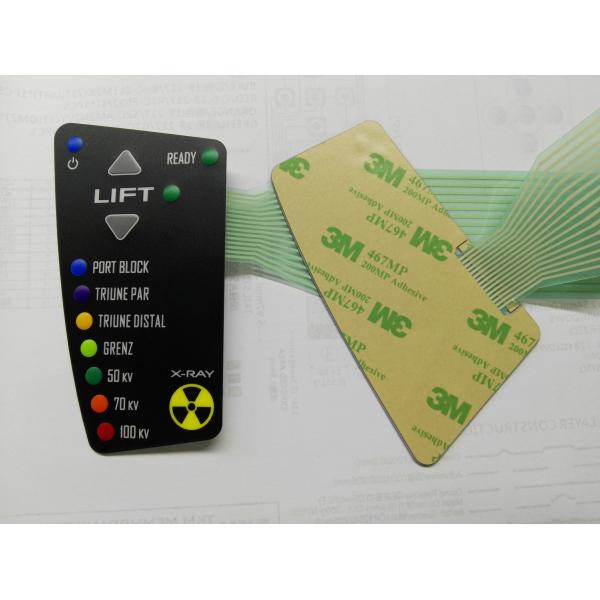

New Emboss Type Tactile Membrane Switch Of Custom Design With 3M Adhesive

Technical Specification

Environmental Operating Temperature -20° to 65° C (-4° to 149° F)
Storage Temperature -40° to 85° C (-40° to 185° F)
Seals 3M permanent acrylic adhesive resists against dust, water, oil and moisture conditions.

Special sealing options are available for wet environments.
Mechanical Travel .007 inches to .015 inches
Operating Force 4oz to 8oz
Electrical Operating Voltage 30 volts maximum
Operating Current 10 microamps to 100 milliamps, resistive
Closed Circuit Resistance 100 ohms typical, dependent on size and layout
Open Circuit Resistance 10 megohms
Operating Power 1 watt maximum
Circuitry X-Y matrix or one side common

Our advantage

1. 10 years' producing history and 10 years' exporting experience.

2. Professional engineering team will offer technical support in development step

of new project.

3. Provide one-stop production and assembly service from custom membrane

switch to PCBA, enclosure, back plate etc.

4. Using high standard mould to assure the products with high quality and precise

dimensions.

5. In-house 100% functionally tested.

Tactile Membrane Switch Specifications:

1. Material: PET Advised, Matte PC (smooth), Gloss PC + Matte Oil, Gloss PC And PVC

2. Color:Pantone And RAL Color Matching System

3. Thickness: 0.4---1.4mm

4. LED windows:Transparent And Translucent

5. Keys: No Embossed Keys And Domes

Domes Without Embossed Keys

Embossed Keys Without Domes

Embossed Keys And Domes

6. Adhesive: 3M9448,3M300LSE,3M467,3M468 , etc.

Custom Design Emboss Type Tactile Membrane Touch Switch With 3M Adhesive

Membrane Switch Main Application:

1. Information application products,

2. remote control,

3. telecommunication equipment,

4. OA equipment,

5. household appliance,

6. medical instruments,

7. measuring instruments,

8. toys

9. ...etc.

we manufacture complete line of membrane switches, our experienced Design team are ready to work with you to design membrane switches to meet Your unique needs of your project.
