Touch Screen Panel/Membrane Switch/Membrane Control Panel/

Introduction of Membrane Switch

Membrane switches and membrane panels are an internationally popular new operating system for electronic products that integrate decoration and functionality in recent years. They have been widely used in intelligent electronic measuring instruments, medical instrument computer control, CNC machine tools, Electronic weighing apparatus, post and telecommunications, photocopiers, refrigerators, microwave ovens, electric fans, washing machines, electronic game consoles and other industrial and household appliances products. It is precisely because the membrane switch has the advantages of resistance to friction, water, dust, harmful gas, long service life, stable performance, etc., it has become more and more widely used in various fields.

Company Introduction

The company is equipped with the same industry advanced production equipment, key equipment (such as automatic punching machine, baking line, screen printing machine, punch, film thickness meter, etc.) are from Taiwan and Japan, and is committed to the new form of intelligent automation upgrade and transformation; At the same time, the company has perfect testing equipment (high and low temperature, salt spray, adhesion, life tester, etc.) to fully ensure the reliability of products, all the management cadres have taiwan-funded factory working experience, to provide a strong guarantee for the reliability and consistency of products.

Descriptions:

Flexible Remote Control Panels
1) Custom made OEM/ODM
2) Precise silk screen printing overlay add touch screen panel
3) Rich colors
4) High sensity & High quality
5) Environment Friendly
6) Perfect exterior
6) Raw Materials: PET film overlay+ touch panel

Product construction

Applications:

Our membrane switches are widely used in :
• Medical Equipment
• Telecommunications apparatus
• Telephone systems
• Household appliances
• Security systems
• Point of sale apparatus
• Industrial controls
• Toys

Working Principle:

When the panel is not pressed down, the film switch is in the normal state, its upper and lower contacts are disconnected, the isolation layer plays an isolation role on the upper and lower lines; When the panel is pressed, the contact of the upper circuit is deformed downward, and the line is merged with the lower line to make the line on, and the line after the conduction is sent to the external connection instrument (substrate) to signal, so as to achieve its corresponding function; When the finger is released, the upper circuit contact bounces back, the circuit breaks, and the loop triggers a signal.

Competitive Advantage:
Hard wear,
corrosion resistance,
high transmittance,
control feel smooth,
high reliability

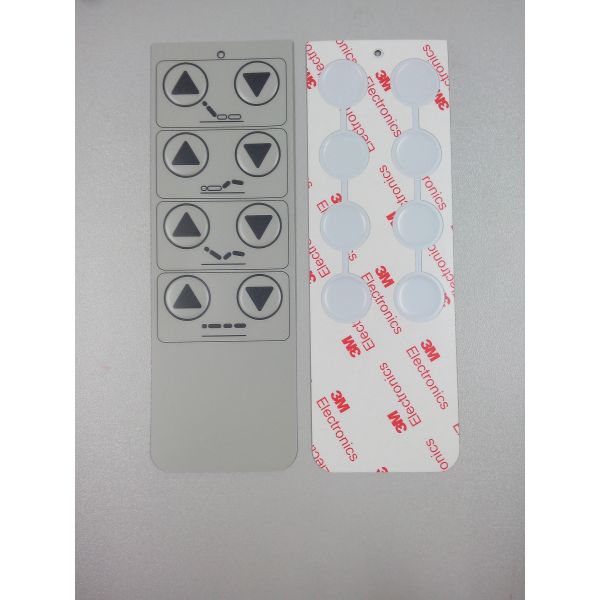

Product show
