Specifications
Place of Origin :
Shaanxi, China
Brand Name :
LEEO
Model Number :
LA-15-120
Packaging Details :
Plastic wrap + iron pallet or wooden case according to customer requirements
Supply Ability :
200 units/ per Month
Price :
$2000---$5000/unit
Certification :
CE
MOQ :
1-5 units
Delivery Time :
10-20 work days
Material :
Steel or Aluminum Alloy
Truck Model :
DONGFENG, Foton, Howo, JieFang
Load Rated :
1500KG
Max lift Height :
1200MM
Operating Voltage :
DC12V/DC24V
Power :
2KW
OEM :
Available
Warranty :
12 Months
Description

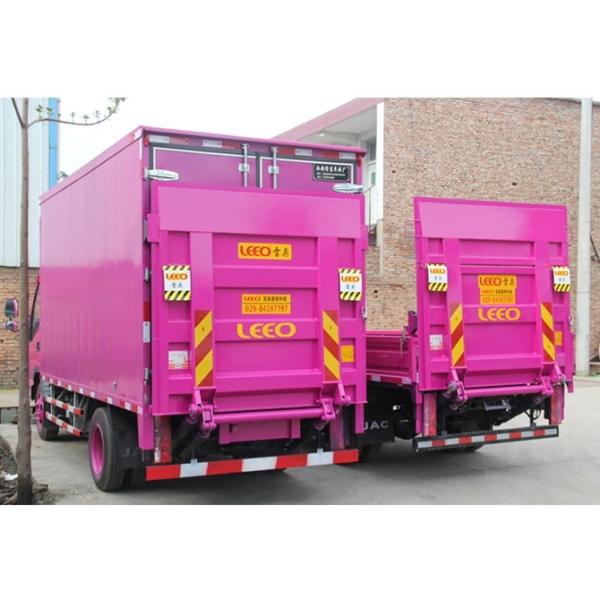

1500 KG Loading Hydraulic tail lift for trucks car tail lift for sales

Product Description

Brand LEEO
Load Rated 1500 KG
Max Lift Height 1200 MM
Platform Material Steel or Aluminum Alloy
Platform Dimension (Width* height) 2000 * 1800 MM(also can do customized)
Platform Weight 340-440 KG(depends on material)
Operating Voltage DC24V
Power 2KW
Lift Speed 60-90mm/s(adjustable)
System Pressure 18MPa

A tail lift (term used in the UK, also called a "liftgate" in North America) is a mechanical device permanently installed on the rear of a work truck, van, or lorry, and is designed to facilitate the materials handling of goods from ground level or a loading dock to the level of the vehicle bed, or vice versa.

The majority of tail lifts are hydraulic or pneumatic in operation, although they can be mechanical, and are controlled by an operator using an electric relay switch.

Tail lifts make it much easier to safely load and unload trucks and are synonymous with cost efficiency, flexibility and a high level of operating comfort for users.

Plate size (standard size, width × height) 1900(2000,2100,2200,2300)×1800mm
The size can be customized according to the carriage. Standard board material: steel. The large plate made of aluminum alloy has the advantages of light weight, high strength, corrosion resistance, and beautiful appearance.

Why Choose US

A>Our products have a high technical starting point: they are at the highest level in China, and a large number of products are exported to Hong Kong.

B> Our product hydraulic system selects European well-known brands—HALDEX, PAKER.MPI to ensure quality

C> Our Philosophy is: Active service, Pursuit of perfection

D> We are a professional team and we are proficient in products, understand customers, put people first, and pursue excellence.

Main Products Parameter

Model No Load capacity (KG) Height from Ground to Carriage (MM) Platform Dimension (W*H) MM Operating Voltage (V) Lifting Speed (CM/S) Total weight (KG)
Steel Aluminum Alloy
LA-7-90 700 800-900 1600*1700 12 6-9 320 260
LA-10-120 1000 950-1200 1800*1700 12/24 6-9 390 290
LA-15-120 1500 950-1200 2000*1700 12/24 6-9 450 330
LA-15-135 1500 1050-1350 2200*1800 24 6-9 490 370
LA-15-152 1500 1150-1520 2300*1800 24 6-9 550 430
LA-20-135 2000 1050-1350 2400*1800 24 6-9 520 410
LA-20-152 2000 1150-1520 2400*1800 24 6-9 580 460
LA-25-152 2500 1150-1520 2400*1800 24 6-9 630 490
LA-25-160 2500 1150-1600 2400*1800 24 6-9 750 590

Company Profile

Xi'an Leeo Hydraulic Equipment Co., Ltd., established in August 2011, is located in the beautiful historical city - Xi'an, Shaanxi Province. It is a professional manufacturer of "truck hydraulic tailgate lift" products of high-tech private enterprises, the company gathered a number of domestic and foreign outstanding truck tailgate lift industry specialized persons, concentrate, professional, focus on truck tailgate lifts products and parts of the technology research and development, manufacturing and sales, "integrity, innovation, creating value for customers" business philosophy, To build "LEEO ® " tailgate lift high-end national brand, based on the domestic, look at the world, exhausted and domestic and foreign automobile manufacturing enterprises, logistics and transport enterprises and the community sincere cooperation and provide excellent products and the highest quality services.

1200MM Loading Hydraulic Power Liftgate Truck 1.5 Ton  Car Tail Lift

FAQ

Q: HOW LONG IS THE WARRANTY TIME?

A:2000 WORKING HOURS OR 12 MONTHS,WHICHEVER COMES FIRST.

Q:HOW ABOUT THE PAYMENT?

A:WE USED T/T 50% AS DEPOSIT AND BALANCE BEFORE SHIPMENT.

Q: WHAT ABOUT THE AFTER-SALE SERVICE?

A: IF THERE ANY QUALOTY ISSUE, PLEASE SEND US THE PHOTOS OR VIDEO,WE WILL OFFER THE SOLUTION WITHIN 24 HOURS.

Q:HOW TO DELIVERY THE GOODS.

A: BY SEA OR BY RAILWAY.

Q:HOW AHOUT THE DELIVERY TIME?

A:THE DELIEVERY TIME IS ABOUT 10-15 DAYS AFTER RECEIPT DEPOSITE.
