Specifications
Place of Origin :
Shaanxi, China
Brand Name :
LEEO
Model Number :
LA-15-152
Supply Ability :
200 units/ per Month
MOQ :
1-5 units
Price :
$2000---$5000/unit
Delivery Time :
10-20 work days
Certification :
CE
Type :
Doors
Material :
Steel or Aluminum
Truck Model :
DONGFENG, Foton, Howo, JieFang
Product name :
truck tail lift gate
Description :
Heavy truck Spare parts
Application :
Truck Van
Color :
Customer Demands
Warranty :
12 Months
Description

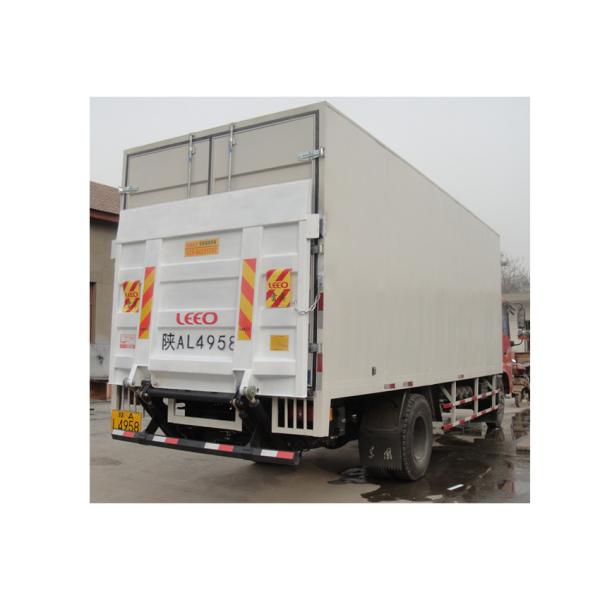

Truck Hydraulic tail lift remote control tail lift of truck parts for sales

Product Description
Max Lift Height 1520 MM
Platform Material Steel or Aluminum Alloy
Platform Dimension (Width* height) 2300 * 1800 MM(also can do customized)
Platform Weight 390-515 KG(depends on material)
Operating Voltage DC24V
Power 2KW

What does a tail lift do?

A tail lift (term used in the UK, also called a "liftgate" in North America) is a mechanical device permanently installed on the rear of a work truck, van, or lorry, and is designed to facilitate the materials handling of goods from ground level or a loading dock to the level of the vehicle bed, or vice versa.

Tail lifts make it easier to load and unload trucks with cost efficiency, flexibility and a high level of operating comfort for users.

Tail lifts are available for many sizes of vehicle, from standard vans to articulated lorries, and standard models can lift anywhere

Why Choose US

A>Our products have a high technical starting point: they are at the highest level in China, and a large number of products are exported to Hong Kong.

B> Our product hydraulic system selects European well-known brands—HALDEX, PAKER.MPI to ensure quality

C> We are a professional team composed of professionals in hydraulic tail lift; and we proficient in products, understand customers, put people first, and pursue excellence.

Main Products Parameter

Model No Load capacity (KG) Height from Ground to Carriage (MM) Platform Dimension (W*H) MM Operating Voltage (V) Lifting Speed (CM/S) Total weight (KG)
Steel Aluminum Alloy
LA-7-90 700 800-900 1600*1700 12 6-9 320 260
LA-10-120 1000 950-1200 1800*1700 12/24 6-9 390 290
LA-15-120 1500 950-1200 2000*1700 12/24 6-9 450 330
LA-15-135 1500 1050-1350 2200*1800 24 6-9 490 370
LA-15-152 1500 1150-1520 2300*1800 24 6-9 550 430
LA-20-135 2000 1050-1350 2400*1800 24 6-9 520 410
LA-20-152 2000 1150-1520 2400*1800 24 6-9 580 460
LA-25-152 2500 1150-1520 2400*1800 24 6-9 630 490
LA-25-160 2500 1150-1600 2400*1800 24 6-9 750 590

Company Profile

Xi'an Leeo Hydraulic Equipment Co., Ltd., established in August 2011, is located in the beautiful historical city - Xi'an, Shaanxi Province. It is a professional manufacturer of "truck hydraulic tailgate lift" products of high-tech private enterprises, the company gathered a number of domestic and foreign outstanding truck tailgate lift industry specialized persons, concentrate, professional, focus on truck tailgate lifts products and parts of the technology research and development, manufacturing and sales, "integrity, innovation, creating value for customers" business philosophy, To build "LEEO ® " tailgate lift high-end national brand, based on the domestic, look at the world, exhausted and domestic and foreign automobile manufacturing enterprises, logistics and transport enterprises and the community sincere cooperation and provide excellent products and the highest quality services.

Remote Control 2 Ton Tail Lift 2000w Electric Tailgate Lifter For Truck

FAQ

Q:HOW ABOUT THE PAYMENT?

A:WE USED T/T 50% AS DEPOSIT AND BALANCE BEFORE SHIPMENT.

Q:HOW TO DELIVERY THE GOODS.

A: BY SEA OR BY RAILWAY.

Q: HOW LONG IS THE WARRANTY TIME?

A:2000 WORKING HOURS OR 12 MONTHS,WHICHEVER COMES FIRST.

Q: WHAT ABOUT THE AFTER-SALE SERVICE?

A: IF THERE ANY QUALOTY ISSUE, PLEASE SEND US THE PHOTOS OR VIDEO,WE WILL OFFER THE SOLUTION WITHIN 24 HOURS.
