Specifications
Place of Origin :
Shaanxi, China
Brand Name :
LEEO
Model Number :
LA-15-120
Supply Ability :
200 Set/Sets per Month
Price :
$2000---$5000/unit
MOQ :
1-5 units
Delivery Time :
10-20 work days
Certification :
CE
Size :
Customized
product :
truck tail gate
Load Rated :
1500KG
Max lift Height :
1200MM
Operating Voltage :
DC12V/DC24V
Power :
2KW
System pressure :
18MPa
Lift speed :
60-90mm/s (adjustable)
Description

CE/ISO certificate smart electric tail gate lift,tail lift loading for trucks for sales

Product Description
Load Rated 1500 KG
Max Lift Height 1200 MM
Platform Material Steel or Aluminum Alloy
Platform Dimension (Width* height) 2000 * 1800 MM(also can do customized)
Platform Weight 340-440 KG(depends on material)
Operating Voltage DC24V
Power 2KW

How often should a tail lift be inspected?


every six months
Those inspections must take place at a frequency of no more than every six months, and it is a legal requirement that you have the current report of this examination for the tail-lift that is fitted to the vehicle.

Tail lifts can help you save labor cost,improve working efficiency,and are synonymous with cost efficiency, flexibility and a high level of operating comfort for users.

Tail lifts are available for many sizes of vehicle, from standard vans to articulated lorries, and standard models can lift anywhere

Why Choose US

A We use European well-known brands—HALDEX, PAKER.MPI for our product hydrulic system to ensure quality

C> Our Philosophy is: Active service, Pursuit of perfection

D> We are proficient in products, understand customers, put people first, and pursue excellence.

Main Products Parameter

Model No Load capacity (KG) Height from Ground to Carriage (MM) Platform Dimension (W*H) MM Operating Voltage (V) Lifting Speed (CM/S) Total weight (KG)
Steel Aluminum Alloy
LA-7-90 700 800-900 1600*1700 12 6-9 320 260
LA-10-120 1000 950-1200 1800*1700 12/24 6-9 390 290
LA-15-120 1500 950-1200 2000*1700 12/24 6-9 450 330
LA-15-135 1500 1050-1350 2200*1800 24 6-9 490 370
LA-15-152 1500 1150-1520 2300*1800 24 6-9 550 430
LA-20-135 2000 1050-1350 2400*1800 24 6-9 520 410
LA-20-152 2000 1150-1520 2400*1800 24 6-9 580 460
LA-25-152 2500 1150-1520 2400*1800 24 6-9 630 490
LA-25-160 2500 1150-1600 2400*1800 24 6-9 750 590

Company Profile

Xi'an Leeo Hydraulic Equipment Co., Ltd., established in August 2011, is located in the beautiful historical city - Xi'an, Shaanxi Province. It is a professional manufacturer of "truck hydraulic tailgate lift" products of high-tech private enterprises, the company gathered a number of domestic and foreign outstanding truck tailgate lift industry specialized persons, concentrate, professional, focus on truck tailgate lifts products and parts of the technology research and development, manufacturing and sales, "integrity, innovation, creating value for customers" business philosophy, To build "LEEO ® " tailgate lift high-end national brand, based on the domestic, look at the world, exhausted and domestic and foreign automobile manufacturing enterprises, logistics and transport enterprises and the community sincere cooperation and provide excellent products and the highest quality services.

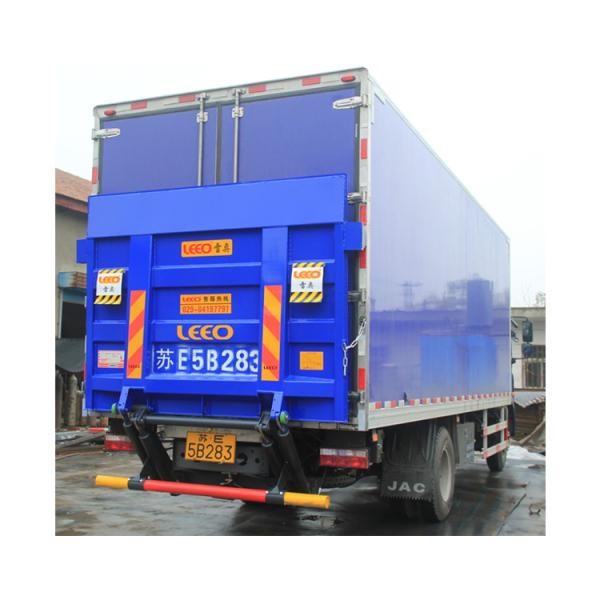

CE ISO Truck Tail Gate Lift 1500KG Truck Electric Tail Gate Lift Loading

FAQ

Q: WHAT ABOUT THE AFTER-SALE SERVICE?

A: IF THERE ANY QUALOTY ISSUE, PLEASE SEND US THE PHOTOS OR VIDEO,WE WILL OFFER THE SOLUTION WITHIN 24 HOURS.

Q:HOW AHOUT THE DELIVERY TIME?

A:THE DELIEVERY TIME IS ABOUT 10-15 DAYS AFTER RECEIPT DEPOSITE.

Q: HOW LONG IS THE WARRANTY TIME?

A:2000 WORKING HOURS OR 12 MONTHS,WHICHEVER COMES FIRST.

Q:HOW ABOUT THE PAYMENT?

A:WE USED T/T 50% AS DEPOSIT AND BALANCE BEFORE SHIPMENT.
