Max Lift Height:1350MM

Load Capacity: 2000KG

Operating Voltage:DC24V

Main cable: National standard YH-25mm²/8.5m

Platform Material: Aluminum alloy

Power:2.5KW

Lift Speed:60-90mm/s (adjustable speed)

Platform Dimension (Standard size: Width * Height) 2200 *1800 MM

Platform Weight (KG): About 410

Lift Mechanism: Manual

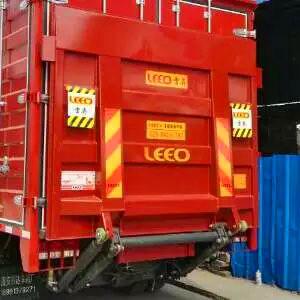

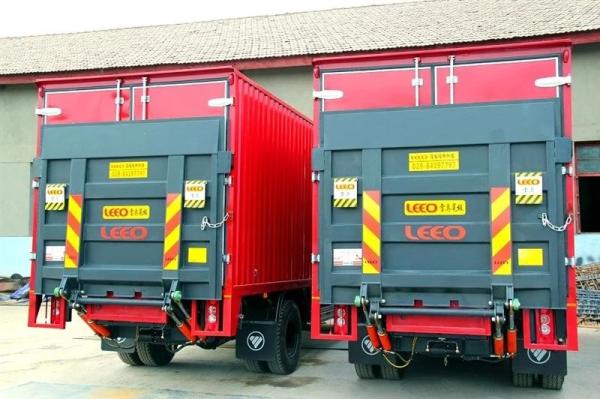

What is cantilever tail lift?

Cantilever tail-lifts are stowed vertically and form part or all of the rear closure. The platform has an angled lip at the end allowing it to be rotated downwards. This allows roll cages and pallet trucks to be easily loaded from ground level.

Tail lifts make it much easier to safely load and unload trucks and are synonymous with cost efficiency, flexibility and a high level of operating comfort for users.

The majority of tail lifts are hydraulic or pneumatic in operation, although they can be mechanical, and are controlled by an operator using an electric relay switch.

Why Choose US

A>Our products have a high technical starting point: they are at the highest level in China.

B> Our product hydraulic system selects European well-known brands—HALDEX, PAKER.MPI to ensure quality

C> Our Philosophy is: Active service, Pursuit of perfection

D> We are proficient in products, understand customers, put people first, and pursue excellence.

Main Products Parameter

Xi'an Leeo Hydraulic Equipment Co., Ltd., established in August 2011, is located in the beautiful historical city - Xi'an, Shaanxi Province. It is a professional manufacturer of "truck hydraulic tailgate lift" products of high-tech private enterprises, the company gathered a number of domestic and foreign outstanding truck tailgate lift industry specialized persons, concentrate, professional, focus on truck tailgate lifts products and parts of the technology research and development, manufacturing and sales, "integrity, innovation, creating value for customers" business philosophy, To build "LEEO ® " tailgate lift high-end national brand, based on the domestic, look at the world, exhausted and domestic and foreign automobile manufacturing enterprises, logistics and transport enterprises and the community sincere cooperation and provide excellent products and the highest quality services.

FAQ

Q:HOW AHOUT THE DELIVERY TIME?

A:THE DELIEVERY TIME IS ABOUT 10-15 DAYS AFTER RECEIPT DEPOSITE.

Q:HOW ABOUT THE PAYMENT?

A:WE USED T/T 50% AS DEPOSIT AND BALANCE BEFORE SHIPMENT.

Q: HOW LONG IS THE WARRANTY TIME?

A:2000 WORKING HOURS OR 12 MONTHS,WHICHEVER COMES FIRST.

Q: WHAT ABOUT THE AFTER-SALE SERVICE?

A: IF THERE ANY QUALOTY ISSUE, PLEASE SEND US THE PHOTOS OR VIDEO,WE WILL OFFER THE SOLUTION WITHIN 24 HOURS.

Q:HOW TO DELIVERY THE GOODS.

A: BY SEA OR BY RAILWAY.
