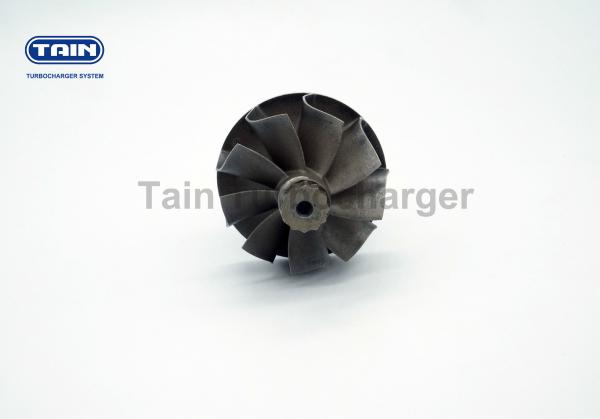

GTC1244VZ 775517-0002 806291-0002 Turbine Wheel Shaft For Audi / CITROEN / PEUGEOT / SKODA / VOLKSWAGEN
GTC1244VZ 775517-0002 806291-0002 Turbine Wheel Shaft For Audi / CITROEN / PEUGEOT / SKODA / VOLKSWAGEN
GTC1244VZ 775517-0002 806291-0002 Turbine Wheel Shaft For Audi / CITROEN / PEUGEOT / SKODA / VOLKSWAGEN
GTC1244VZ 775517-0002 806291-0002 Turbine Wheel Shaft For Audi / CITROEN / PEUGEOT / SKODA / VOLKSWAGEN
Specifications
Brand Name :
Tain Turbo
Model Number :
GTC1244VZ
Certification :
ISO9001:2000
Place of Origin :
China
MOQ :
5 pc
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000 Pcs / Month
Packaging Details :
Neutral package
Material :
K418+42CrMo
Model :
GTC1244VZ
Fit turbo NO. :
775517-0001, 775517-0002 , 806291-0002, 784011-0005
Dimension :
35.5 / 32.3 / 7.6
Balancing data :
< 5mg.mm / 30000RPM
Application :
Audi / CITROEN / PEUGEOT / SKODA / VOLKSWAGEN
Description

GTC1244VZ 775517-0002 806291-0002 Turbine Wheel Shaft For Audi / CITROEN / PEUGEOT / SKODA / VOLKSWAGEN

The turbine wheel is one of the most important parts of a turbocharger.

It is resposible to transform the energy from an engine’s exhaust gases into kinetic energy.As the turbine wheel

rotates, it spins the turbine shaft, which in turn spins the compressor wheel.When it works,it always be in a

high temperature environment.So the only material can be selected to manufacturer turbine wheel is the

Inconel austenitic nickel-chromium-iron alloy, a high strength investment casting.The materials now in wide use

is K418.


DETAILS

Name

turbine wheels, turbo shaft wheels, shaft&wheels

Model

 GTC1244VZ

Fit turbocharger NO.

775517-0001 775517-0002 806291-0002 784011-0005

Engine No.

282012A850

9606120680

Material

K418+42CrMo

Application

AUDI 1.6TDI 77KW 2009.

CITROEN 1.6HDI 84KW 2003.

PEUGEOT 1.6HDI 84KW 2003.

SKODA 1.6TDI 77KW 2009.

VOLKSWAGEN / VW 1.6TDI 77KW 2009.

Balancing Test

< 5mg.mm / 30000RPM






GTC1244VZ 775517-0002 806291-0002 Turbine Wheel Shaft For Audi / CITROEN / PEUGEOT / SKODA / VOLKSWAGEN

Blade

A(mm)

 B(mm) C(mm) D(mm) E(mm)

9

 35.45 32.4 7.6 6.00 4.08


WHY CHOOSE US

GTC1244VZ 775517-0002 806291-0002 Turbine Wheel Shaft For Audi / CITROEN / PEUGEOT / SKODA / VOLKSWAGEN We use a set of SCHENCK balancing equipments including compressor wheel balancing equipment, shaft balancing equipment and SCHENCK TB Sonio,which help us to ensure the quality.

GTC1244VZ 775517-0002 806291-0002 Turbine Wheel Shaft For Audi / CITROEN / PEUGEOT / SKODA / VOLKSWAGEN Professional in turbochargers and years of experience.
Complete product chain system,to meet customers’ different demands.

GTC1244VZ 775517-0002 806291-0002 Turbine Wheel Shaft For Audi / CITROEN / PEUGEOT / SKODA / VOLKSWAGEN Competitive price because of our good cost control.
GTC1244VZ 775517-0002 806291-0002 Turbine Wheel Shaft For Audi / CITROEN / PEUGEOT / SKODA / VOLKSWAGEN Strictly control the production flow to ensure the on-time delivery.
GTC1244VZ 775517-0002 806291-0002 Turbine Wheel Shaft For Audi / CITROEN / PEUGEOT / SKODA / VOLKSWAGEN 3D sample to help customers develop new products.
GTC1244VZ 775517-0002 806291-0002 Turbine Wheel Shaft For Audi / CITROEN / PEUGEOT / SKODA / VOLKSWAGEN 12 months warranty and aftersalses testing.
GTC1244VZ 775517-0002 806291-0002 Turbine Wheel Shaft For Audi / CITROEN / PEUGEOT / SKODA / VOLKSWAGEN Customized OEM products,offer flexible ways of packing to meet customers’ requirement.

Technology updates and equipment service.
