Specifications
Brand Name :
Tain turbo
Model Number :
K04
Certification :
ISO9001:2000
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T, L/C, D/P
Supply Ability :
1000 pcs per month
Delivery Time :
3-5 work days
Packaging Details :
Neutral Packing
Model :
K04
Turbo No. :
53049700020 . 53049700022 . 53049700023
Application :
AUDI/VW TT Quattro 225hp 1.8L-5V quer/transversal
Balancing Test :
SCHENCK
OE NO. :
06A145702/4M
Chra NO. :
5304-710-0507
Description

Turbocharger cartridge 53049700020 53049700022 for AUDI/VW TT Quattro 225hp 1.8L-5V quer/transversal

PRODUCTION DETAILS

TURBO NO.

53049700020 . 53049700022 . 53049700023


MODEL

K04

Balancing Test

<0.5Mg.mm / 150000RPM


Fitted Cars

AUDI/VW TT Quattro 225hp 1.8L-5V quer/transversal


Condition

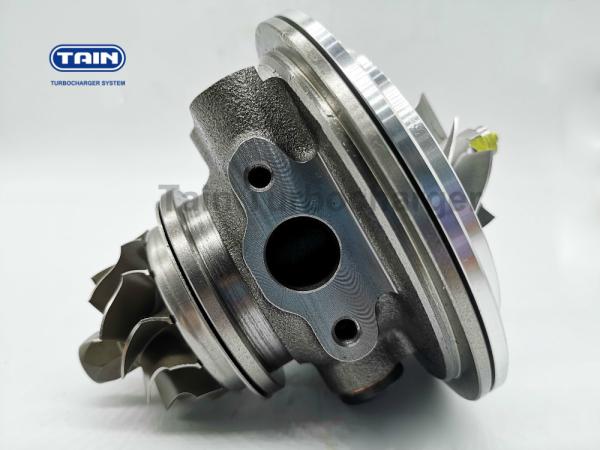

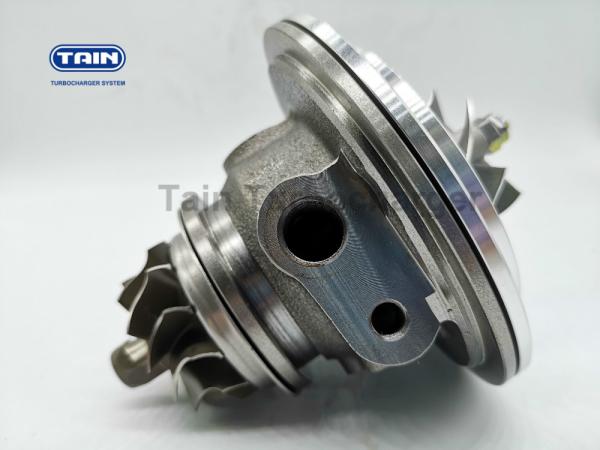

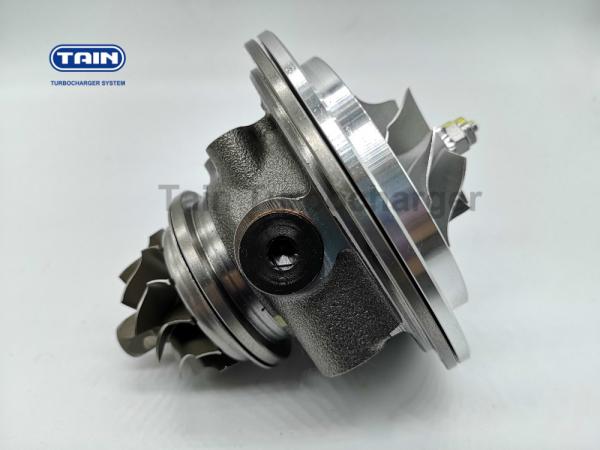

►This is a high quality brand new CHRA (cartridge or core assembly) of a turbocharger.
►It is balancing tested with a qualified report.
►It is carefully tested,without damage and rust.
►It is carefully cleaned and packed with safety package.

Turbocharger Cartridge 53049700020 53049700022 For AUDI / VW TT Quattro 225hp 1.8L -5V Quer / Transversal

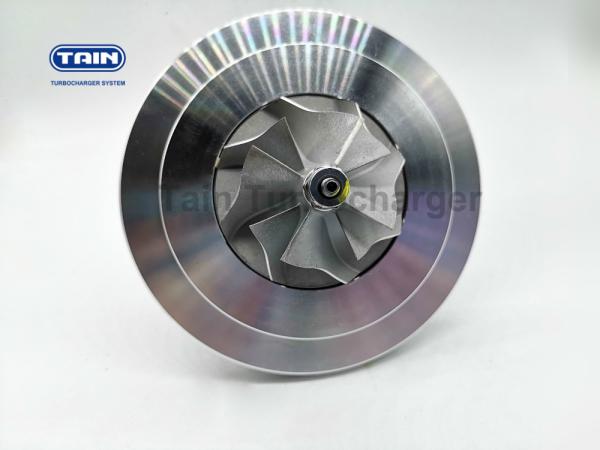

Turbine wheels & compressor wheels size information

Turbine Wheels
(A) Inducer (B) Exducer Blades

50

 42 12
Compressor Wheels
(A) Inducer (B) Exducer Blades
41.6 59

4/4



Material

► turbine wheel: K418

► compressor wheel: C355

► bearing house: HT250 Gray iron

OTHER MODELS WE SUPPLY


Tain supplies high performance turbo cartridges(CHRAS) and turbo kits to aftermarket worldwide.

Originally manufactured by Honeywell(Garrett),Borg Warner(KKK),MHI(Mitsubishi), IHI, Toyota, Holset.

Model cover :

Garrett: GT12,GT14,GT15-25,GT35,GT37,GT42,T2,T3,T04B-E

KKK: K03,K04,K14,K16,K24,K27,KP35,BV39,BV40,BV45,BV50

Schwitzer: S100,S1A,S1B,S200,S2A,S2B-E,S300,S3A,S3B,S400,S410

Holset: HX30(W),HX35(W),HX40(W),HX50(W),HX55(W),HE211(W),HE35V,HE40V,HE55V

IHI: RHB3,RHF3,RHF4,RHF5,
