Specifications
Brand Name :
TAIYI
Model Number :
Jewelry Laser Welding Machine
Certification :
CE
Place of Origin :
China
MOQ :
1Set
Price :
Contact us for the price
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
300 sets per month
Delivery Time :
7 working days
Packaging Details :
Export standard packing
Product name :
Gold Sliver Copper Laser Welding Machine
Laser beam :
1064nm
Power consumption :
200W
Warranty :
2 years
Positioning accuracy :
Red light position
Demand for electricity :
AC220v/50HZ/30A
Cooling :
Built-in Water Cooling
Single Pulse Energy :
120J
Pulse Width :
0.5-20ms
Dimensions :
890*530*1140mm
Description

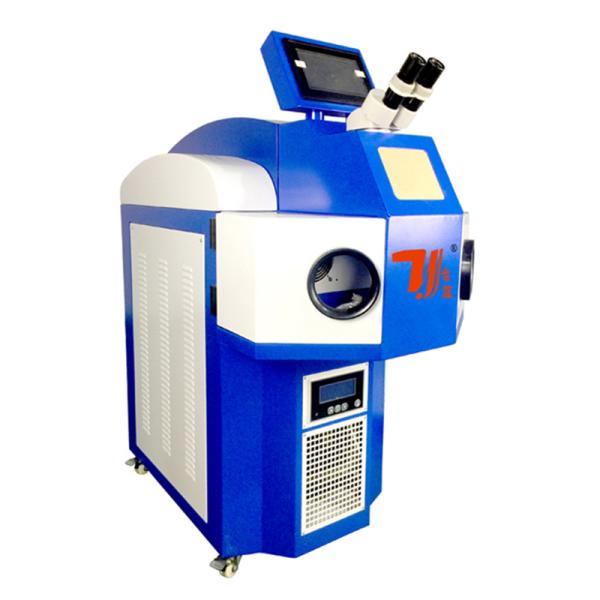

Built-in Water Cooling Chiller Integrated Gold Silver Copper Laser Welding Machine Jewelry Laser Welders

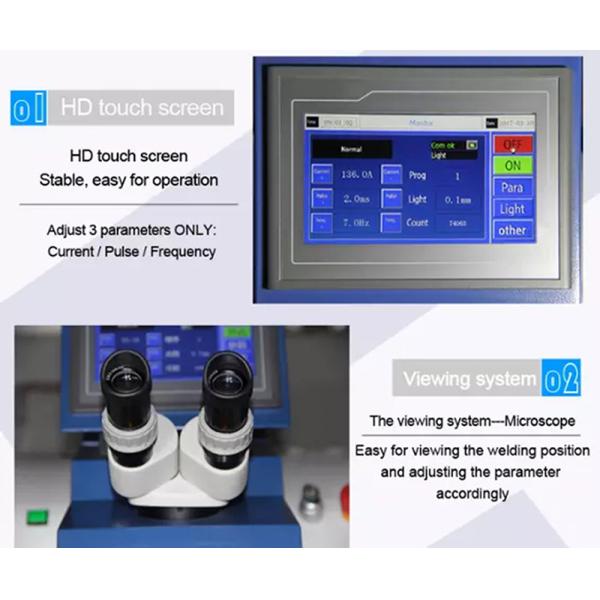

Jewelry spot welding machine with External chiller is specially developed for laser welder of jewelry by Maxwave Laser and mainly used in perforating and spot welder of gold and silver jewelry. It is of touch screen type, adopting new style power source, elaborating operation, and optimizing the optical path, with high photoelectric conversion efficiency, high stability, small size, high configuration and other characteristics.

The laser spot welding is an important aspect of laser process technology application. The spot welding process is thermal conduction, i.e. the laser radiation heats the surface of work piece, and the surface heat diffuses to the interior through thermal conduction and melts the work piece by controlling the width, energy, peak power and repeating frequency of laser pulse to form specific molten pool.

Canton Fair Promotion Built-in Water Cooling Chiller Integrated Gold Silver Copper Jewelry Laser WeldersCanton Fair Promotion Built-in Water Cooling Chiller Integrated Gold Silver Copper Jewelry Laser WeldersCanton Fair Promotion Built-in Water Cooling Chiller Integrated Gold Silver Copper Jewelry Laser Welders

Model TY-H20021
Laser Power 200W
Laser Wavelength 1064nm
Pulse Frequency ≤100Hz
Repeating Precision ±0.1mm
Pulse width ≤20ms
Spot Adjusting Range 0.1-3.0mm
Power Consumption 6KW
Viewing System Microscope
Voltage Single-Phase 220V/50HZ/20A
Cooling Water Cooling
Cabinet Size 1000*580*1280mm

Application:

Widely used in aviation,aerospace,sporting goods,jewelry,gold

head,medical,equipment,aluminum,alloy denture,instrumentation,electronic,

mechanical processing,automobile and other industries,especislly for gold and

silver jewelry fill holes,spot weld lines,Mosaic forces and claw foot position welding

Canton Fair Promotion Built-in Water Cooling Chiller Integrated Gold Silver Copper Jewelry Laser Welders
