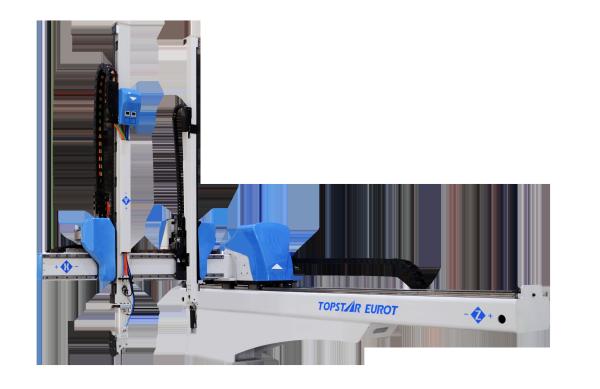

High Speed Take Out Robot For Inejction Molding 1 . 6Kg Pendant 50 / 60HZ
High Speed Take Out Robot For Inejction Molding 1 . 6Kg Pendant 50 / 60HZ
High Speed Take Out Robot For Inejction Molding 1 . 6Kg Pendant 50 / 60HZ
High Speed Take Out Robot For Inejction Molding 1 . 6Kg Pendant 50 / 60HZ
High Speed Take Out Robot For Inejction Molding 1 . 6Kg Pendant 50 / 60HZ
High Speed Take Out Robot For Inejction Molding 1 . 6Kg Pendant 50 / 60HZ
High Speed Take Out Robot For Inejction Molding 1 . 6Kg Pendant 50 / 60HZ
High Speed Take Out Robot For Inejction Molding 1 . 6Kg Pendant 50 / 60HZ
Specifications
Brand Name :
TOP-Star
Model Number :
EU-120、EU-120S
Certification :
ISO9001,Europe-CE, TOP-Brand Manipulator
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
300per month
Delivery Time :
10~30 working days
Packaging Details :
wooden case
Power source :
AC220±10% 50/60HZ
Max Power consumption :
2.1KW 3.25KW
Air pressure :
0.5~0.7Mpa
Air consumption :
3.6 NL/cycle
Drive system :
AC Servo Motor
Posture Air Cylinder :
90º fix
Max Load :
8 kg include Chuck weight
Posture Torque :
25.7N.m
Stroke-Main arm vertical :
1200mm
Stroke-Sub arm vertical :
1250 mm
Stroke-Crosswise :
main arm:500~1200mm/ sub arm 250~950mm
Traverse :
1800mm
weight of main body :
520/561kg
Pendant :
1.6kg
Injection press range :
350~450T
Description

Servo Traverse high speed take out robot for injection molding industrial robot manipulator

Injection press range 350~450Ton

High Speed Take Out Robot For Inejction Molding 1 . 6Kg Pendant 50 / 60HZ

Standard function

Packaging motion(Max. 256 points)

Posture control during traverse

Posture midway descent at release side

Ejector link

Defective product reject circuit

Initial defective product reject circuit

Free packaging motion(115 points×2 stages)

Forward and rotate at removing side

Down-standby

Midway runner release(Move,Revert)

Runner release within mold

Vacuum confirmation unit ( 2 circuit)

Outside safety door area standby

Undercut extract circuit

Start signal of conveyor

Internal memory(for Ma100 molds)

Lock function of setting value

Extraction from fixed mold

Two language exchange(Chinese/English)

High Speed Take Out Robot For Inejction Molding 1 . 6Kg Pendant 50 / 60HZ

Outer Dimension EU-120 EU-120S OptionFunction
A Overall High 2190mm 2220mm Option function

Air nipple circuit in gripper

NT runner cutting

Vacuum confirmation unit ( 4 circuits)

Product gripping 4 circuits
Mold close during ascend
Rotation unit
Ejector return link EuroMAP12 EuroMAP67
B Overall Length 2650mm
C Traverse Stroke 1800mm
D Main-Arm vertical stroke 1200mm
E Main-Arm vertical stand by 230mm
F Bottom of Crosswise to chuck mount position 325mm
G Base side face Box end 405mm
H Sub arm vertical standby -- 280mm
I Main arm reach Max 1200mm 　
J Main arm crosswise stroke Max 935mm 700mm
K Main arm crosswise standby min 265mm 500mm
L Main/sub arm proximity min -- 260mm
M Sub arm crosswise stroke Max -- 700mm
N Sub arm crosswise standby min -- 250mm
O Crosswise arm end-box end 1740mm

Control Panel

High Speed Take Out Robot For Inejction Molding 1 . 6Kg Pendant 50 / 60HZ

Assembly work shop

High Speed Take Out Robot For Inejction Molding 1 . 6Kg Pendant 50 / 60HZ

Application customer factory:

High Speed Take Out Robot For Inejction Molding 1 . 6Kg Pendant 50 / 60HZ
