GYFTS GYTS Underground Duct Outdoor Armored Fiber Optic Cable PE Sheath Rodent Resistant
GYFTS GYTS Underground Duct Outdoor Armored Fiber Optic Cable PE Sheath Rodent Resistant
GYFTS GYTS Underground Duct Outdoor Armored Fiber Optic Cable PE Sheath Rodent Resistant
GYFTS GYTS Underground Duct Outdoor Armored Fiber Optic Cable PE Sheath Rodent Resistant
Specifications
Brand Name :
OEM/Takfly
Model Number :
GYFTS, GYTS
Certification :
CE,ROHS,REACH,ISO9001,ISO14001
Place of Origin :
China
MOQ :
2KM
Price :
USD300/pcs ~ USD1000/pcs
Payment Terms :
T/T, Western Union, MoneyGram, Paypal, L/C
Supply Ability :
2000km channels each month
Delivery Time :
4-6 working days
Packaging Details :

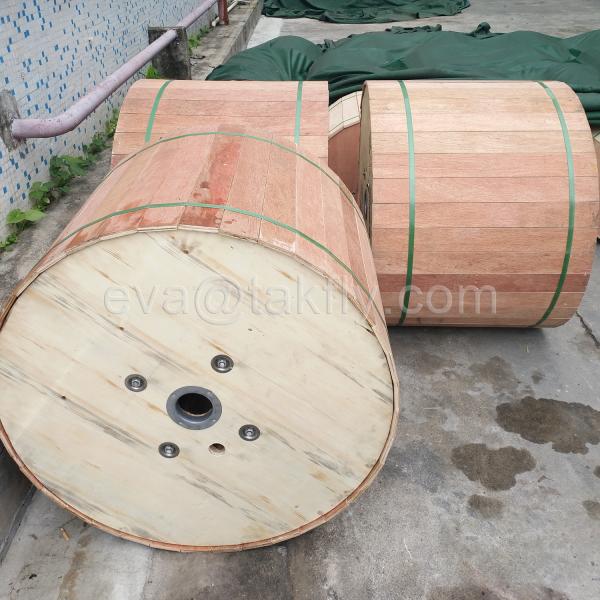

2-4km per Wooden Drum
Product Name :
GY(F)TS Fiber Optic Cable
Sheath :
Single Sheath
Outer Sheath Material :
PE
Armor :
Steel
Central Strength Member :
FRP / Steel Wire
Max Fiber Amount :
288
Description

GYFTS GYTS Underground Duct Outdoor Cable Armored PE Sheath Rodent Resistant Fiber Optic Cable Cable


Description

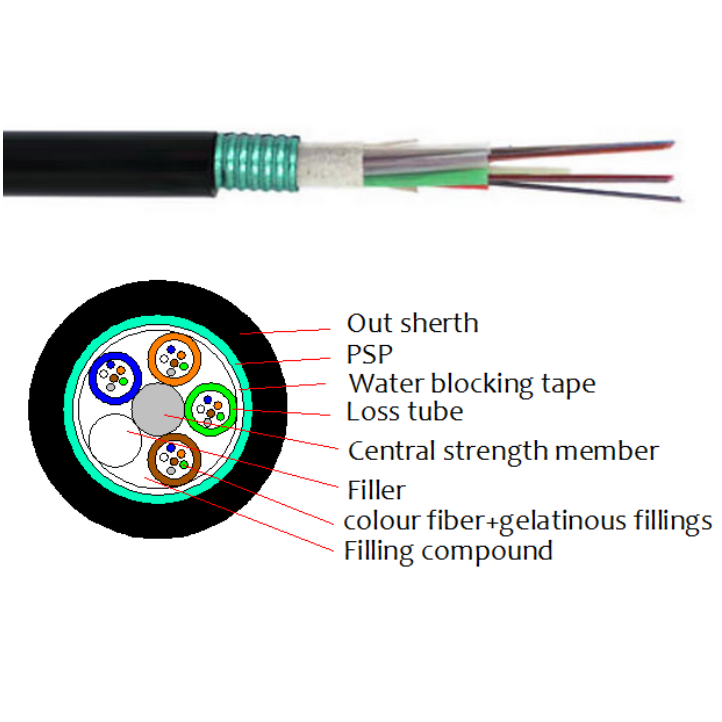

The fibers, 250μmm, are position in a loose tube made of a high modulus plastic. The tube are filled with a water resistant filling compound.A steel wire,sometimes sheathed with ployethylene(PE) for cable with high fiber count,locates in the center of core as a metallic strength member.

Tubes (and fillers) are stranded around the strength member into a compact and circular cable core.The PSP is longitudinally applied over the cable core,which is filled with filling compound to protect it from water ingress,the cable is completed with a PE sheath.


Feature

  • Up to 288 fibers.
  • Loose tube gel-filled construction for superior fiber protection.
  • Aluminum tape armor to protect cable from mechanical damage.
  • UV and waterproof design.

Application

  • Interbuilding voice or data communication backbone.
  • Installed in duct, underground conduit.


Optical Fiber Characteristics

G.652.D G.6555 50/125μm 62.5/125μm
Attenuation @850nm ≤3.0 dB/km ≤3.0 dB/km
@1300nm ≤1.0 dB/km ≤1.0 dB/km
@1310nm ≤0.36 dB/km ≤0.40 dB/km
@1550nm ≤0.23 dB/km ≤0.23dB/km
Bandwidth @850nm ≥500 MHz·km ≥200 MHz·km
@1300nm ≥1000 MHz·km ≥600 MHz·km
Numerical Aperture 0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wavelengthλcc ≤1260nm ≤1480nm

Technical Data

Item Contents Value
Loose Tube material PBT/PP
diameter Ф2.2mm
Central strength member material Steel wire/Steel wire with PE cover
diameter Ф2.0mm
Outer sheath material MDPE/HDPE
Thickness 1.7mm

Cable Mechanical characteristic

Cable type Diameter
(mm)		 Weight
(Kg/km)		 Max.Tension Crush Resistance
(N)		 Min. Bending Radius Storage Temperature
(℃)
Long/Short Term Long/Short Term Dynamic Static
GYTS, 2~60F 10.0 115 1000/3000 1000/3000 20D 10D -20~+70
GYTS, 62~72F 10.5 130
GYTS, 74~96F 12.0 160
GYTS, 74~96F 14.0 220
GYTS, 122~144F 16.0 280

GYFTS GYTS Underground Duct Outdoor Armored Fiber Optic Cable PE Sheath Rodent Resistant

GYFTS GYTS Underground Duct Outdoor Armored Fiber Optic Cable PE Sheath Rodent ResistantGYFTS GYTS Underground Duct Outdoor Armored Fiber Optic Cable PE Sheath Rodent Resistant

FAQ:

Q: Do you provide OEM service ?
A: Yes, we can print your logo or label on the products or on the box.

Q: Can you provide free samples ?
A: Some of low value samples can be free for you, but you need pay for the shipping cost.

Q: How can you guarentee the quality ?
A: Build on our perfect quality management system, all of our products were 100% tested before the shipment.

Q: What is your delivery time ?
A: Generally, sample: 3~5 working days. Formal order: 7-10 working days.

Q: What's your payment terms ?
A: We accept T/T, Western Union, Paypal, L/C
For samples: 100% payment. Formal order: 30%~100% as deposit, balance payment before shipment.
