6F-144F SM ADSS Aerial Outdoor Fiber Optic Cable 100M 120M 150M PE Single Sheath
6F-144F SM ADSS Aerial Outdoor Fiber Optic Cable 100M 120M 150M PE Single Sheath
6F-144F SM ADSS Aerial Outdoor Fiber Optic Cable 100M 120M 150M PE Single Sheath
6F-144F SM ADSS Aerial Outdoor Fiber Optic Cable 100M 120M 150M PE Single Sheath
6F-144F SM ADSS Aerial Outdoor Fiber Optic Cable 100M 120M 150M PE Single Sheath
6F-144F SM ADSS Aerial Outdoor Fiber Optic Cable 100M 120M 150M PE Single Sheath
Specifications
Brand Name :
OEM/Takfly
Model Number :
ADSS
Certification :
CE,ROHS,REACH,ISO9001,ISO14001
Place of Origin :
China
MOQ :
2KM
Price :
USD300/pcs ~ USD1000/pcs
Payment Terms :
T/T, Western Union, MoneyGram, Paypal, L/C
Supply Ability :
2000km channels each month
Delivery Time :
4-6 working days

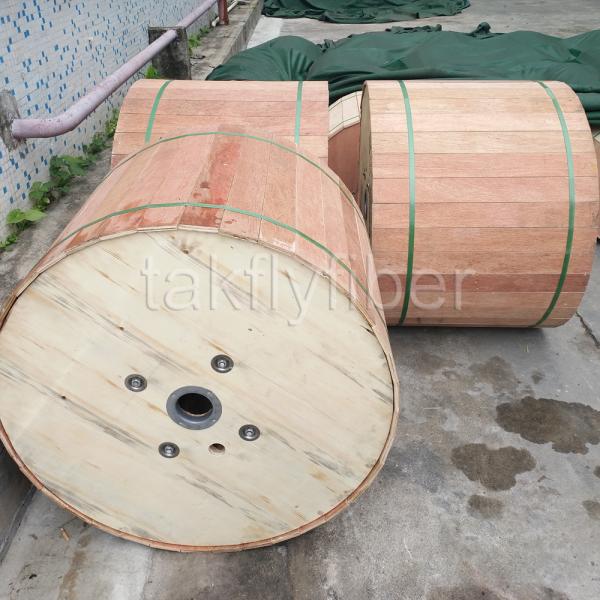

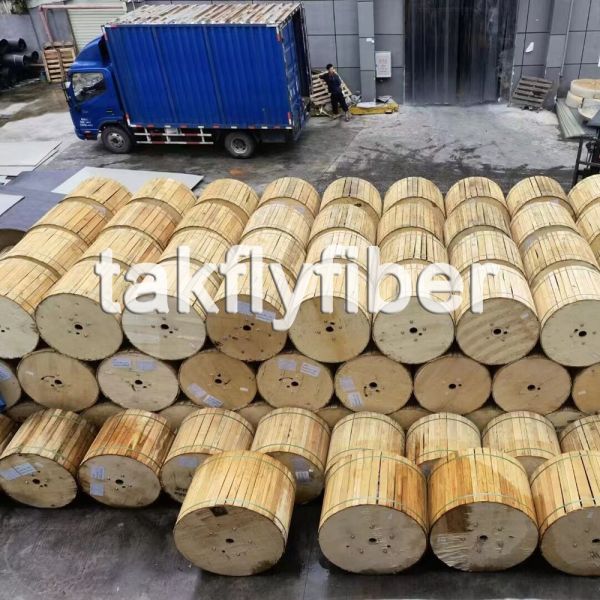

Packaging Details :
2-4km per Wooden Drum
Product Name :
ADSS Aerial Outdoor Fiber Optic Cable
Sheath :
Single Sheath
Outer Sheath Material :
PE/AT
Storage Temperature :
-40~85℃
Description

6F-144F SM ADSS Aerial Outdoor Fiber Optic Cable 100M 120M 150M PE Single Sheath


Description

The fibers are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of Kevlar. Between the Kevlar yarn and the loose tube water-blocking material is applied to keep the cable compact and watertight. The cable is completed with a polyethylene (PE) or AT sheath.


Feature

  • Can be installed without shutting off the power
  • Light weight and small diameter reducing the load caused by ice and wind and the load on towers and backprops
  • Large span lengths and the largest span is over 1000m
  • Good performance of tensile strength and temperature

Application

The actual status of overhead power lines is taken into full consideration when ADSS cable is being designed. For overhead power lines under 110kV, PE outer sheath is applied. FOR power lines equal to or over 110kV, AT outer sheath is applied. The dedicate design of aramid quantity and stranding process can satisfy the demand on various spans.


Optical Fiber Characteristics

G.652.D G.6555 50/125μm 62.5/125μm
Attenuation @850nm ≤3.0 dB/km ≤3.0 dB/km
@1300nm ≤1.0 dB/km ≤1.0 dB/km
@1310nm ≤0.36 dB/km ≤0.40 dB/km
@1550nm ≤0.23 dB/km ≤0.23dB/km
Bandwidth @850nm ≥500 MHz·km ≥200 MHz·km
@1300nm ≥1000 MHz·km ≥600 MHz·km
Numerical Aperture 0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wavelengthλcc ≤1260nm ≤1480nm

Fiber optic cable parameter

Items Specifications
Fiber Count 2~36 38~72 74~96
Coating optical fiber Dimension 260±5μm 260±5μm 260±5μm
Material printing ink printing ink printing ink
Color Blue. Orange. Green. Brown. Gray. White.

Blue. Orange. Green. Brown. Gray. White.

Red. Black. Yellow. Purple. Pink. Aqua

Blue. Orange. Green. Brown. Gray. White.

Red. Black. Yellow. Purple. Pink. Aqua
Losse tube Material FBT FBT FBT
Dimension 2.0±0.1mm 2.1±0.1mm 2.2±0.1mm
Filling materials Fiber Oil Paste Fiber Oil Paste Fiber Oil Paste
Color Blue. Orange. Green. Brown. gray. white Blue. Orange. Green. Brown. gray. white Blue. Orange. Green. Brown. gray. white
Reinforcement materials Strengthening of the Centre FRP FRP FRP
Dimension 2.0mm 2.2mm 3.6mm
Self-sustained strengthening Aramind yarn Aramind yarn Aramind yarn
Water-blocking materials Water blocking yarn Water blocking tape / Water blocking yarn Water blocking tape / Water blocking yarn
Jacket Material PE PE PE
Dimension 10±0.2mm 10.6±0.2mm 11.8±0.2mm
Color Black Black Black
KG/KM 85 100 100

6F-144F SM ADSS Aerial Outdoor Fiber Optic Cable 100M 120M 150M PE Single Sheath6F-144F SM ADSS Aerial Outdoor Fiber Optic Cable 100M 120M 150M PE Single Sheath

6F-144F SM ADSS Aerial Outdoor Fiber Optic Cable 100M 120M 150M PE Single Sheath
