Specifications
Brand Name :
OEM/Takfly
Model Number :
GYFXTY
Certification :
CE,ROHS,REACH,ISO9001,ISO14001
Place of Origin :
China
MOQ :
2KM
Price :
USD200/pcs ~ USD500/pcs
Payment Terms :
T/T, Western Union, MoneyGram, Paypal, L/C
Supply Ability :
2000km channels each month
Delivery Time :
4-6 working days

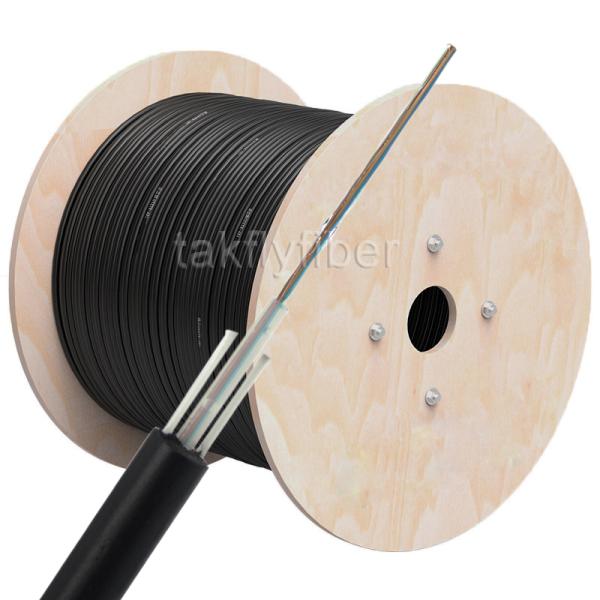

Packaging Details :
2-4km per Wooden Drum
Product Name :
GYFXTY Fiber Optic Cable
Sheath :
Single Sheath
Outer Sheath Material :
PE
Streength Member :
FRP
Description

4F 6F 12F 16F 24F GYFXTY Non-Metallic Singlemode Fiber Optic Cable PE Jacket FRP Strength Member


Description

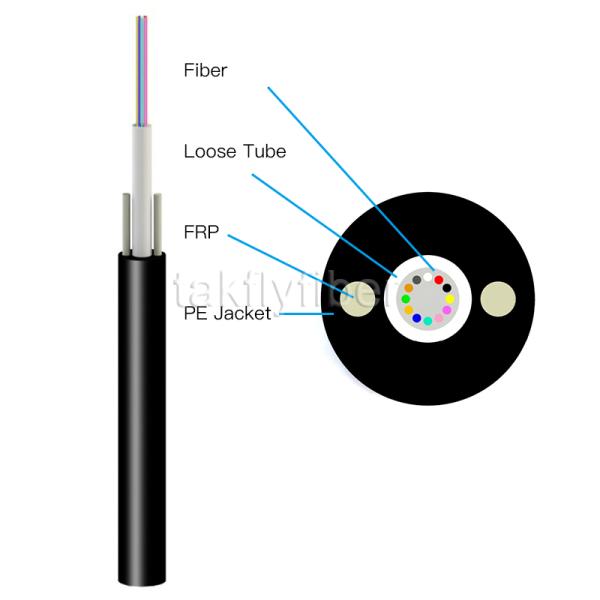

Non-Armored Uni-Tube optical cable with fibers placed in loose buffer tube.The cable core is protected with jelly to prevent water intrusion and migration, and coverwith a black polyethylene out jacket. Two embedded FRP or metallic wire provide desire tension.

Feature

  • Good mechanical and temperature performance
  • High strength loose tube that is hydrolysis resistant
  • Special tube filling compound ensure a critical protection of fiber
  • Crush resistance and flexibility
  • Two parallel FRP ensure tensile strength
  • Small diameter, light weight and friendly installation
  • Long delivery length

Application

  • Adopted to outdoor distribution
  • Suitable for aerial, pipeline laying method
  • Long distance and local area network communication

Optical Fiber Characteristics

G.652.D G.655 50/125μm 62.5/125μm
Attenuation @850nm ≤3.0 dB/km ≤3.0 dB/km
@1300nm ≤1.0 dB/km ≤1.0 dB/km
@1310nm ≤0.36 dB/km ≤0.40 dB/km
@1550nm ≤0.22 dB/km ≤0.23dB/km
Bandwidth @850nm ≥500 MHz·km ≥200 MHz·km
@1300nm ≥1000 MHz·km ≥600 MHz·km
Numerical Aperture 0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wavelengthλcc ≤1260nm ≤1480nm

Fiber and Loose Tube Color Code

Item Contents Value
Loose tube material PBT
diameter Ф2.0-2.6mm
strength member material FRP
diameter Ф1.0mm*2
Outer sheath material MDPE/HDPE
Thickness 1.5mm

Technical Data

Cable type

Diameter

(mm)

Weight

(Kg/km)

Max.Tension

(N)

Crush Resistance

(N/100mm)

Min. Bending Radius

(mm)

Storage temperature

(℃)
Long/Short Term Long/Short Term Dynamic Static
GYFXTY-2~24 6.2 40 400/1000 300/1000 20D 10D -20~+70
GYFXTY-2~24 7.2 60

4F 6F 12F 16F 24F GYFXTY Non-Metallic Singlemode Fiber Optic Cable PE Jacket FRP Strength Member4F 6F 12F 16F 24F GYFXTY Non-Metallic Singlemode Fiber Optic Cable PE Jacket FRP Strength Member

FAQ:

Q: Do you provide OEM service ?
A: Yes, we can print your logo or label on the products or on the box.

Q: Can you provide free samples ?
A: Some of low value samples can be free for you, but you need pay for the shipping cost.

Q: How can you guarentee the quality ?
A: Build on our perfect quality management system, all of our products were 100% tested before the shipment.

Q: What is your delivery time ?
A: Generally, sample: 3~5 working days. Formal order: 7-10 working days.

Q: What's your payment terms ?
A: We accept T/T, Western Union, Paypal, L/C
For samples: 100% payment. Formal order: 30%~100% as deposit, balance payment before shipment.
