Specifications
Brand Name :
OEM/Takfly
Model Number :
GCYF(X)TY
Certification :
CE,ROHS,REACH,ISO9001,ISO14001
Place of Origin :
China
MOQ :
2KM
Price :
USD400/pcs ~ USD1000/pcs
Payment Terms :
T/T, Western Union, MoneyGram, Paypal, L/C
Supply Ability :
2000km channels each month
Delivery Time :
4-6 working days
Packaging Details :
2-4km per Wooden Drum
Product Name :
Air Blown Outdoor Fiber Optic Cable
Sheath :
Single Sheath
Outer Sheath Material :
PE
Packing :
2-6km/drum
Description

12C 24C 48C 96C GCYFTY Outdoor Fiber Optic Cable Non-Metallic HDPE GCYFXTY Air Blown Micro FO Cable


Description

This product has good mechanical performance and the environmental performance, weight light, diameter is small, optical fiber capacity is big, sheath friction coefficient is low, the air blows the speed fast, the distance is long, the construction efficiency is high, the product cost is low.

Application

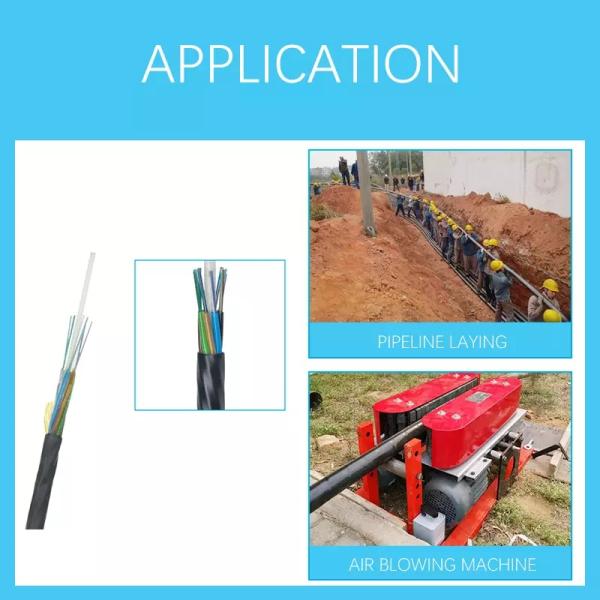

This product is suitable for FTTX, access network and backbone network.

Reliability

The product has completed mass production, with mature and stable production process, strict quality control requirements, regular product performance verification to ensure the reliability of the product.

Reference
This product is designed, purchased, manufactured, tested and tested according to the following standards, and is subject to the latest published standards.

Optical Fiber Characteristics

No Items Test Standard Test Method
1

Core non-circularity

 ≤ 6% ITU-T G.652
2

Cladding diameter

 125.0±0.7μm
3

Core/cladding concentricity error

 ≤ 0.6μm
4 Cladding non-circularity ≤ 1.0%
5 Coating diameter 245±10μm
6

Coating/cladding concentricity error

 ≤ 12μm

7

Attenuation coefficient

 1310nm≤0.35dB/km
1550nm≤0.21dB/km
9

Zero dispersion slope

 ≤ 0.092ps/(nm2·km)
10

Zero dispersion wavelength

 1300~1324nm
11 Polarization mode dispersion ≤ 0.20 ps/√km
12

Mode field diameter

 1310nm:9.0±0.4μm
13 Cut-off wavelength 1170~1330nm

14

Chromatic dispersion

 1288~1339nm≤3.4ps(nm·km)
1550nm≤18 ps/(nm·km)
1625nm≤22 ps/(nm·km)

Fiber and Loose Tube Color Code

No Color
1 Blue
2 Orange
3 Green
4 Brown
5 Grey
6 White
7 Red
8 Black
9 Yellow
10 Violet
11 Pink
12 Turquoise

Technical Data

Cable Type.

Fiber Count

Tube NO x

Fiber per tube

 Filler Count Tube diameter Sheath thickness Outer diameter Weight Micro tube diameter
mm mm mm kg/km mm

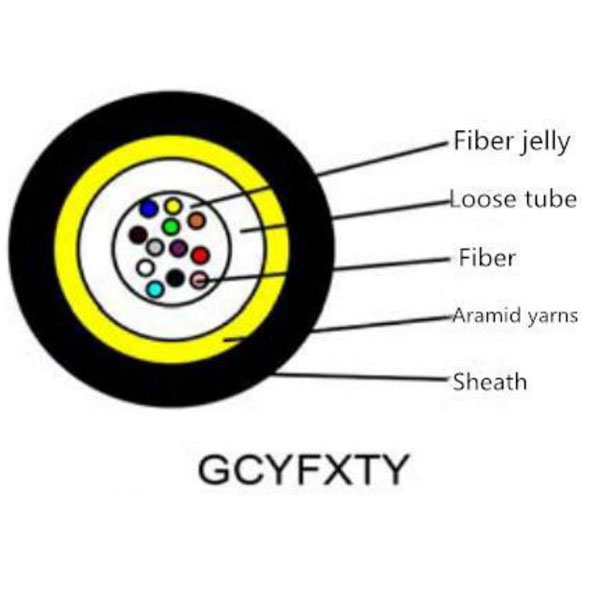

GCYFXTY 12 1x12 0 2.8 0.50 4.00 13 7.0/5.5
GCYFXTY 24 1x24 0 3.2 0.50 4.40 16 8.0/6.0

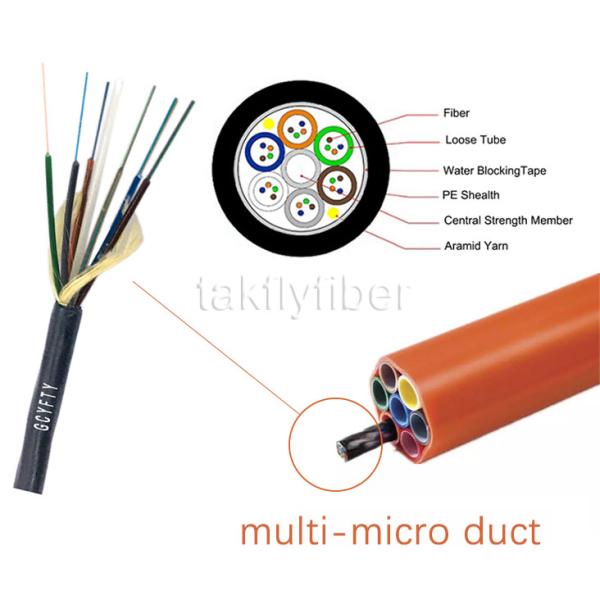

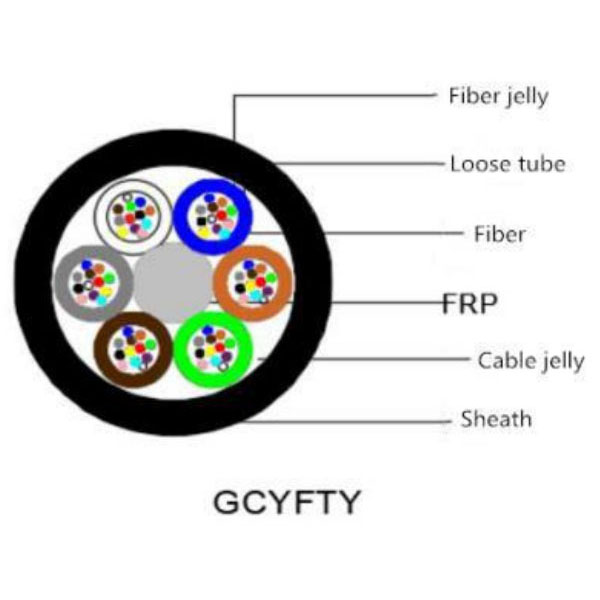

GCYFTY 12 1x12 5 1.55 0.45 5.60 23 10.0/8.0
GCYFTY 24 2x12 4 1.55 0.45 5.60 23 10.0/8.0
GCYFTY 36 3x12 3 1.55 0.45 5.60 23 10.0/8.0
GCYFTY 48 4x12 2 1.55 0.45 5.60 23 10.0/8.0
GCYFTY 60 5x12 1 1.55 0.45 5.60 23 10.0/8.0
GCYFTY 72 6x12 0 1.55 0.45 5.60 23 10.0/8.0
GCYFTY 96 8x12 0 1.55 0.50 6.60 34 10.0/8.0
GCYFTY 144 12x12 0 1.55 0.50 8.60 60 14.0/11.5

12C 24C 48C 96C GCYFTY Outdoor Fiber Optic Cable Non-Metallic HDPE GCYFXTY Air Blown Micro fO Cable12C 24C 48C 96C GCYFTY Outdoor Fiber Optic Cable Non-Metallic HDPE GCYFXTY Air Blown Micro fO Cable

12C 24C 48C 96C GCYFTY Outdoor Fiber Optic Cable Non-Metallic HDPE GCYFXTY Air Blown Micro fO Cable

12C 24C 48C 96C GCYFTY Outdoor Fiber Optic Cable Non-Metallic HDPE GCYFXTY Air Blown Micro fO Cable12C 24C 48C 96C GCYFTY Outdoor Fiber Optic Cable Non-Metallic HDPE GCYFXTY Air Blown Micro fO Cable

FAQ:

Q: Do you provide OEM service ?
A: Yes, we can print your logo or label on the products or on the box.

Q: Can you provide free samples ?
A: Some of low value samples can be free for you, but you need pay for the shipping cost.

Q: How can you guarentee the quality ?
A: Build on our perfect quality management system, all of our products were 100% tested before the shipment.

Q: What is your delivery time ?
A: Generally, sample: 3~5 working days. Formal order: 7-10 working days.

Q: What's your payment terms ?
A: We accept T/T, Western Union, Paypal, L/C
For samples: 100% payment. Formal order: 30%~100% as deposit, balance payment before shipment.
