Specifications
Brand Name :
Takfly
Model Number :
TKS-1806-02A
Certification :
CE,RoHS,FCC
Place of Origin :
China
MOQ :
10pcs
Price :
USD 0.3 ~ USD 1
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability :
50000pcs/week
Delivery Time :
2-3 working days
Packaging Details :
box + carton
Material :
ABS / ABS+PC
Adapter :
2 SC SX / 2 LC DX
Port :
1 / 2
Color :
White
Description
86 Type FTTH Faceplate Box, 86 Size SC-APC SC-UPC Wall Fiber Optic Socket, 2 Core Fiber Optic Wall Outlet Rosette

Description:
Fiber Access Terminal is a user terminal product that achieves fiber-to-desktop solutions with a reasonable design of internal space. For home or work area, complete dual-core fiber access and port output, can fully meet the requirements of fiber bending radius, and protect the fiber out of the fiber core to provide safe protection. Appropriate radius of curvature, allowing a small amount of redundant fiber inventory, to achieve FTTD (fiber to desktop) system applications.
Takfly 2 port FTTH small FAT is able to hold up to 2 subscribers. It is used as a termination point for the drop cable to connect with patch cable in FTTH indoor application. It integrates fiber splicing, termination, storage and cable connection in one solid protection box.

Feature:
1. Material: ABS/ABS+PC
2. Small size and light weight for easy installation
3. Double-layer design for easy installation and maintenance
4. Four cable entry, available from the top, bottom, right side into the line, easy to choose routing
5. Single-core, dual-core fiber adapter can choose
6. With dust-proof device to prevent dust
7. With a logo bar, easy to manage number and maintain
8. Applicable with fiber optic cable or indoor cable
9. Adapter Type: SC, LC
Application:
1. The telecommunication network, metropolitan area network, optical fiber communication system.
2. Optical testing equipment/instrument.
3. CATV optical fiber, optical fiber sensor.
4. Optical fiber broadband access network, FTTH optical fiber.
5. Optical fiber distribution frame, frame type and wall type optical fiber distribution unit.
Performance index:
Item Technical data
Model No. TKS-1806-02A
Application 3.0 x 2.0 mm drop cable or indoor cable
Fiber diameter 125μm ( G652D, G657A1, G657A2, G657B3 )
Tight cladding diameter 250μm & 900μm
Mode of application Singlemode & Multimode
Tensile strength >50 N
End-use temperature -40~+85ºC
Adaptor SC & LC
Insertion loss ≤0.2dB(1310nm & 1550nm)
output 2
Size 86*86*24 mm
Max fiber capacity 2 SC / 4 LC

Standard packing: 500 pieces per carton

MOQ: 20 pieces

Sample: Free sample is available for quality evaluation.

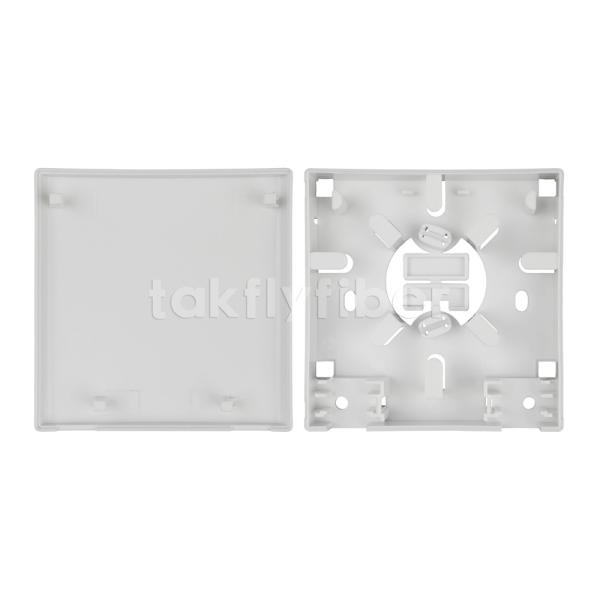

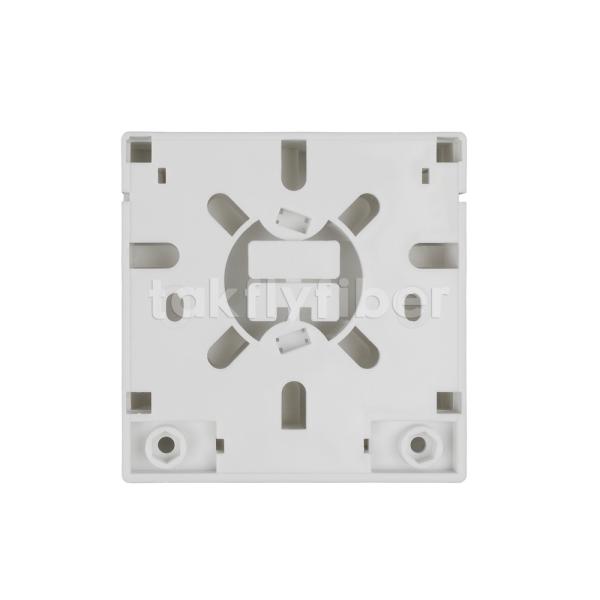

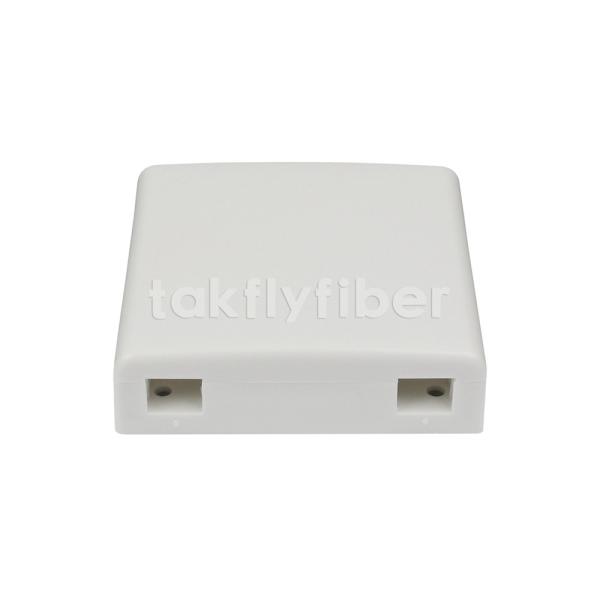

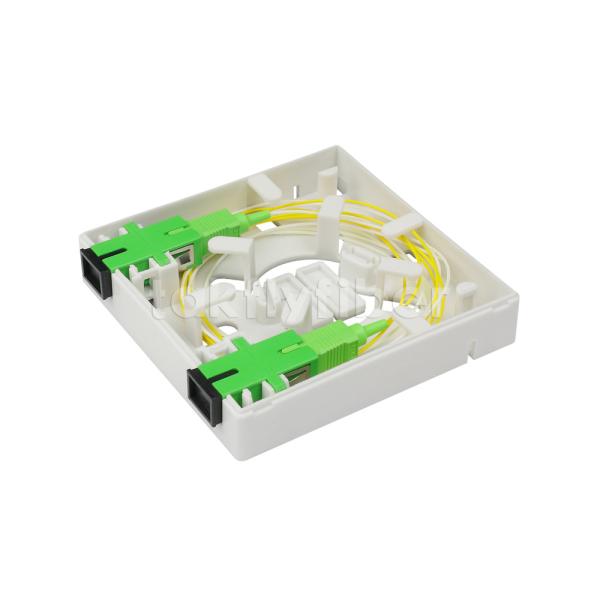

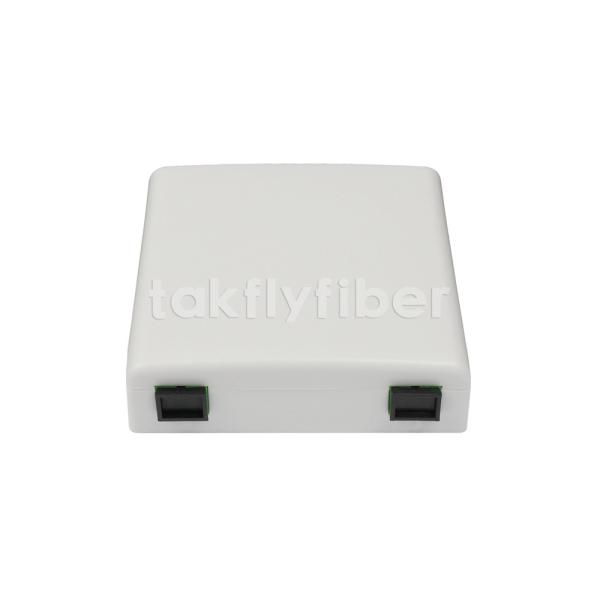

Pictures:

86 Type FTTH Faceplate Box SC APC SC UPC 2 Port Fiber Optic Wall Outlet

86 Type FTTH Faceplate Box SC APC SC UPC 2 Port Fiber Optic Wall Outlet

86 Type FTTH Faceplate Box SC APC SC UPC 2 Port Fiber Optic Wall Outlet

86 Type FTTH Faceplate Box SC APC SC UPC 2 Port Fiber Optic Wall Outlet

86 Type FTTH Faceplate Box SC APC SC UPC 2 Port Fiber Optic Wall Outlet
