Fiber Optic MTP MPO Patch Cord Cable 8 12 24 Core OM3 OM4
Fiber Optic MTP MPO Patch Cord Cable 8 12 24 Core OM3 OM4
Fiber Optic MTP MPO Patch Cord Cable 8 12 24 Core OM3 OM4
Fiber Optic MTP MPO Patch Cord Cable 8 12 24 Core OM3 OM4
Specifications
Brand Name :
Neutral/OEM
Model Number :
MTP-LC MPO-LC Patch Cord
Certification :
CE/ROHS/REACH/CPR/ISO9001/ISO14001
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
Western Union, L/C, T/T, Paypal
Supply Ability :
100PCS/Day
Delivery Time :
3-5 working days
Packaging Details :
Zip-lock Bag
Fiber Cores :
12 Cores
Fiber Type :
Multimode OM4
Length :
1M ,3M, 5M or customized
Cable :
3.0mm Diameter
Connector Type :
MTP-LC, MPO-LC
Cable Jacket :
LSZH，OFNP
Description

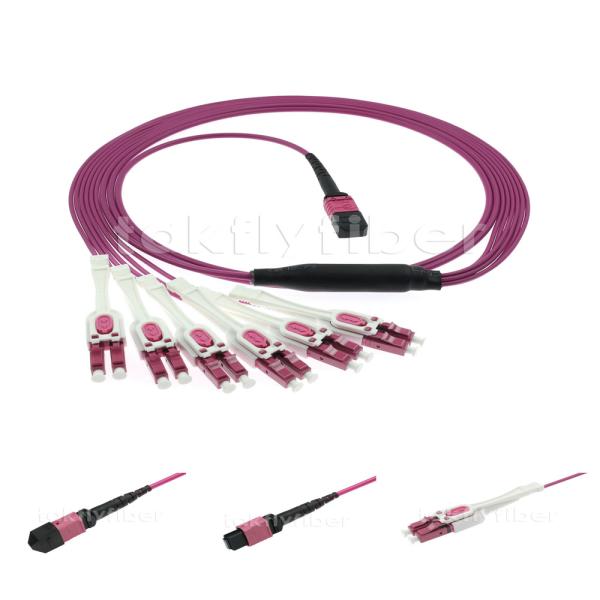

Fiber Optic MTP MPO Patch Cord Cable 8 12 24 Core OM3 OM4


Fiber Optic MTP MPO Patch Cord Name:

Fiber Optic MTP/MPO-LC Uniboot Patch Cord Cable Multimode OM4 12 Cores

Fiber Optic MTP MPO Patch Cord Description:

This type Fiber Optic MTP/MPO-LC Patch Cord Cable is with LC Uniboot Connector, which is Multimode OM4 12 Cores.

If you will need other cores like 8 cores, 24 cores or else, which is also available, and customization is accepted.

Fiber Optic MTP MPO Patch Cord Features:

Precision molded MT ferrule
High precision guide pins for exact alignment
Compact design, up to 4,8,12,24 fibers
IEC 61754-7 Compliant
Cable diameter 3.0mm, and 4.5mm available

Fiber Optic MTP MPO Patch Cord Applications:

  • Telecommunication Networks
  • Active Deviced/Transceiver Interface
  • Gigabit Ethernet
  • CATV, Video and Multimedia
  • Premise Installations
  • Optical Switch interframe connections
  • Data Center

Fiber Optic MTP MPO Patch Cord Specifications:

Item LC,SC,ST,FC....... MPO/MTP
End face type PC,UPC and APC PC and APC
Fiber type SM(G652,G655,G657)；MM(OM1-OM5)
Core number 12, 24
Cable Diameter 0.9,2.0,3.0 Mini Round cable:Max4.5mm； Ribbon cable:Max3.0*5.0mm
Insertion loss(dB) ≤ 0.3 Standard:≤0.35/0.7(Typical/Max) Low Loss:≤0.2/0.35(Typical/Max)
Return loss(Min)

UPC SM:40dB

APC SM:60 dB

PC MM:25 dB

 SM: APC:60dB MM: PC:20dB
Test Wavelength (nm) SM:1310/1550 MM:850/1300
Repeatability ≤ 0.1dB
Durability ≤ 0.2dB
Interchangeability ≤ 0.2dB


Fiber Optic MTP MPO Patch Cord Cable 8 12 24 Core OM3 OM4
