Specifications
Brand Name :
Neutral/OEM/Takfly
Model Number :
TK-PC-MPO-24F-OM3-12LCD
Certification :
CE, ROHS, REACH, CPR, ISO9001, ISO14001
Place of Origin :
Shenzhen, China
MOQ :
1
Price :
US$12.99~US$19.99/PC
Payment Terms :
Western Union, L/C, T/T,Paypal
Supply Ability :
1000PCS/Day
Delivery Time :
3-7working days
Packaging Details :
PE bag
Cores :
24Cores
Fiber Type :
Multimode , OM3
Length :
3m or customized
Cable Diameter :
3.0mm or Customized
Connector Type :
MPO , LC
Insertion Loss :
Standard: 0.6dB, Low Loss: 0.35dB
Return Loss :
MM PC: 25dB
Cable Jacket :
LSZH
Cable Color :
Aqua
Application :
Data Center, Telecom, Network
Product Name :
Data Center Fiber Optic Patchcord 24F MPO To 12 LC DX Uniboot OM3
Description

Data Center Fiber Optic Patchcord 24F MPO To 12 LC DX Uniboot OM3 , 3.0mm LSZH Aqua Jacket

MPO Fiber Optic Patchcord Description:

Takfly's MPO Serials patchcords can be MPO-MPO, MPO-LC, MPO-FC, MPO-SC, MPO-E2000, MPO-ST, MPO fan-out cable patch cord, MPO breakout cable patch cord, etc.
Takfly's MPO Patchcords' Quality guaranteed, 100% fully tested before shipping: End face test, polarity test, insertion loss and return loss test, 3D test,ect.
Takfly's MPO workshop is dust-free workshop with 6 MPO production lines, our MPO serials products are qualified with CE, ROHS, REACH, CPR EN50575, ISO9001 and ISO14001 standard.


MPO Fiber Optic Patchcord specifications:

Item LC / SC / ST / FC....... MPO / MTP
End face type PC / UPC / APC PC and APC
Fiber type SM(G652 / G655 / G657);MM(OM1-OM5)
Core number 2 / 4 / 6 / 8 / 12 / 24
Cable Diameter 0.9 / 2.0 / 3.0

Mini Round cable:Max4.5mm;

Ribbon cable:Max3.0*5.0mm

Insertion loss(dB) ≤ 0.3

Standard:≤0.35/0.7(Typical/Max)

Low Loss:≤0.2/0.35(Typical/Max)

Return loss(Min)

UPC SM:40dB

APC SM:60 dB

PC MM:25 dB

SM:

APC:60dB

MM:

PC:20dB

Test Wavelength(nm)

SM:1310/1550

MM:850/1300

Repeatability ≤ 0.1dB
Durability ≤ 0.2dB
Interchangeability ≤ 0.2dB
Operating Temperature -20℃~70℃
Storage Temperature -40℃~80℃
Outer Sheath Material PVC / LSZH
Bending radius(Static/Dynamic) 10D/20D
Length Customized


Applications

  • Data Center
  • Telecommunication Networks
  • Parallel optical interconnect between PC Cards and patch panels
  • Interconnection for O/E modules
  • Industrial & Military
  • Optical Switch interframe connections

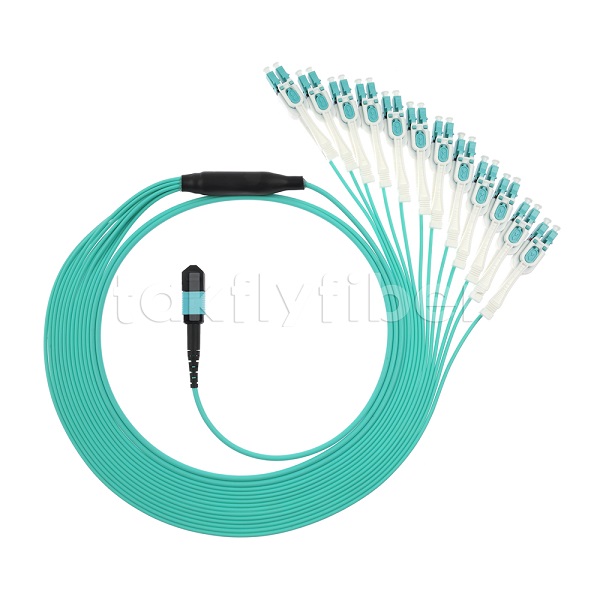

Data Center Fiber Optic Patchcord 24F MPO To 12 LC DX Uniboot OM3 3.0mm

Data Center Fiber Optic Patchcord 24F MPO To 12 LC DX Uniboot OM3 3.0mm
Why choose TAKFLY--Advantages as follows:
Professional manufacturer:


Established in 2000, with more than 400 workers, Takfly has 21 years manfufacturing experience in fiber optic products, mainly focus on : MPO/MTP Patch cord, Fiber Optic Patchcord, pigtail, adapter, attenuator, PLC Splitter, WDM/CWDM/DWDM, Termination Box, Fast Connector, Media Converter, POE Switch, SFP Transceiver and High Power products, ect.

  • We've certified with ISO9001, ISO14001, CE, ROHS, REACH, FCC, CPR and Anatel.
  • Main customer: Telefonica, Orange, Movistar, Vodafone, Singtel, Starhub, Corning, Amphenol, SENKO, ect.
  • Availability of R & D with more than 26 engineers, OEM, ODM customer designs are also welcomed .
  • High quality, attractive price and fast delivery(2-7days) ;
