E2000-SC Duplex Fiber Optic Cable 5 Meters FTTH Single Mode Optical Fiber Cable
E2000-SC Duplex Fiber Optic Cable 5 Meters FTTH Single Mode Optical Fiber Cable
E2000-SC Duplex Fiber Optic Cable 5 Meters FTTH Single Mode Optical Fiber Cable
E2000-SC Duplex Fiber Optic Cable 5 Meters FTTH Single Mode Optical Fiber Cable
Specifications
Brand Name :
Takfly/OEM
Model Number :
E2000-SC
Certification :
CE, ISO, RoHS, CPR, FCC
Place of Origin :
Shenzhen, China
MOQ :
1 pcs
Price :
Can be negotiated
Payment Terms :
L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability :
100000 pcs/ Month
Delivery Time :
3-15 working days
Packaging Details :
PP bag+ Carton box
Connector Type :
E2000 -SC
Fiber Count :
Zipcord duplex fibers
Cable Diameter :
2.0
Mode type :
G657A1
Cable color :
yellow color
Outer Sheath Material :
LSZ
Description

E2000-SC Duplex Fiber Optic Cable 5 Meters FTTH Single Mode Optical Fiber Cable

Fiber Optic Cable Description:

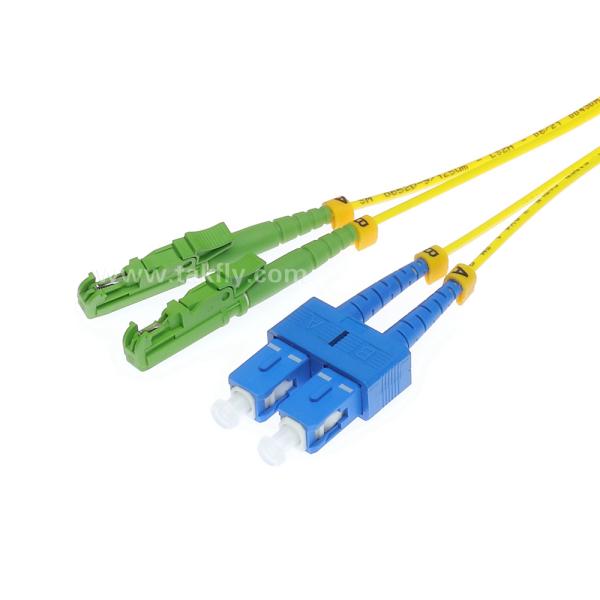

The E2000-SC Duplex Fiber Optic Cable 5 Meters FTTH Single-Mode Optical Fiber Cable, one side of the connector is E2000 APC type, and another side is an SC UPS connector with a clip.

The duplex SC connector is regular without a clip, so if you need a clip on the SC duplex connector, pls indicate it before we quote it for you. Because the price is different. But LC connectors are regular with a clip for the duplex LC.


More information about the E2000 fiber optic cable, pls feel free to contact us.

Fiber Optic Cable Applications:

  • CATV
  • Telecommunication networks
  • Active device termination
  • Local area networks(LANs)
  • Data processing networks
  • Test equipment
  • Wide area networks(WANs)

Fiber Optic Cable Features:

  • Low insertion loss and High reflection loss
  • Good exchangeability
  • Good durability
  • High-temperature stability
  • Standard: Telcordia GR-326-CORE

Fiber Optic Cable Specification:

Fiber Optic Cable Specification:
End face type PC, UPC, and APC
Fiber type SM(G652, G655, G657)； MM(OM1-OM5)
Cable Diameter 2.0,3.0 or customized(Simplex/duplex)
Insertion loss ≤ 0.3 dB
Return loss UPC SM≥50dB ,APC SM≥ 60 dB, PC MM ≥ 35 dB
Repeatability ≤ 0.1
Durability ≤ 0.2dB
Interchangeability ≤ 0.2dB
Tensile strength >70N
Operating -20℃~70℃
Temperature
Storage Temperature -40℃~80℃
Outer Sheath Material PVC,LSZH,TPU
Bending radius 10D/20D
(Static/Dynamic
Length Customized



Fiber Optic Cable types:
E2000-SC Duplex Fiber Optic Cable 5 Meters FTTH Single Mode Optical Fiber Cable


How to order Fiber Optic Cable

1. Connector type : SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
2. Mode type : single mode ( UPC and APC ) / multi mode ( PC )
3. Cable diameter : 0.9 / 2.0 / 3.0 mm ( can customized other diameter )
4. Coating material : PVC / LSZH
5. fiber count : simple / duplex / 4 core / 6core / 8 core /12 core / 24core/48 core / 96 core and so on
6. Cable type : G652D / G657A1 / G657A2 /G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 /OM5
7. Patch cord length : according to your requirement

8.MPO/MTP connector should let us know which method ( A type / B type /C type ), male or female, fiber count (4/8/12/16/24/32 fiber )
