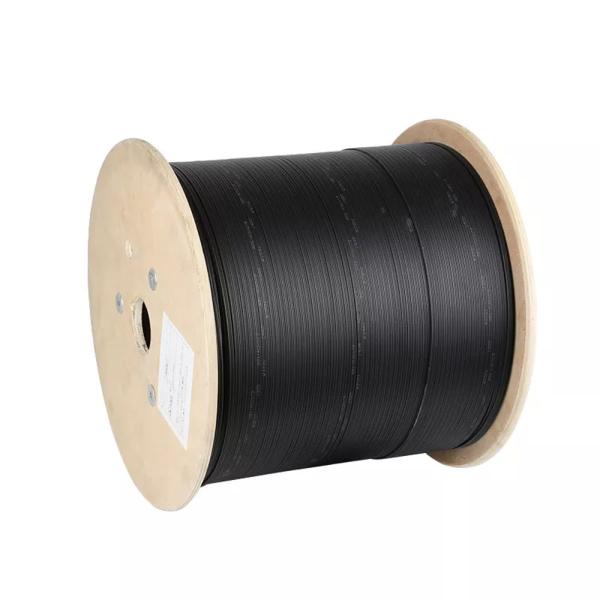

ANATEL Approved 1C 2C 4C G657A Flat FTTH Drop Cable GJYXCH Steel Wire Flat Drop Fiber Cable
ANATEL Approved 1C 2C 4C G657A Flat FTTH Drop Cable GJYXCH Steel Wire Flat Drop Fiber Cable
ANATEL Approved 1C 2C 4C G657A Flat FTTH Drop Cable GJYXCH Steel Wire Flat Drop Fiber Cable
ANATEL Approved 1C 2C 4C G657A Flat FTTH Drop Cable GJYXCH Steel Wire Flat Drop Fiber Cable
ANATEL Approved 1C 2C 4C G657A Flat FTTH Drop Cable GJYXCH Steel Wire Flat Drop Fiber Cable
ANATEL Approved 1C 2C 4C G657A Flat FTTH Drop Cable GJYXCH Steel Wire Flat Drop Fiber Cable
ANATEL Approved 1C 2C 4C G657A Flat FTTH Drop Cable GJYXCH Steel Wire Flat Drop Fiber Cable
ANATEL Approved 1C 2C 4C G657A Flat FTTH Drop Cable GJYXCH Steel Wire Flat Drop Fiber Cable
Specifications
Brand Name :
OEM/Takfly
Model Number :
GJYXCH, GJYXFCH
Certification :
CPR, ANATEL, CE, RoHS, FCC, REACH
Place of Origin :
China
MOQ :
2KM
Price :
USD33/km ~ USD100/km
Payment Terms :
T/T, Western Union, MoneyGram, Paypal, L/C
Supply Ability :
100,000km per month
Delivery Time :
1-2 weeks
Packaging Details :
Wooden drum, Plastic drum
Product Name :
GJYXCH FTTH Drop Cable
Fiber Amount :
1-12
Outer Sheath Color :
Black,Grey,White
Outer Sheath Material :
LSZH
Description

ANATEL Approved 1C 2C 4C G657A Flat FTTH Drop Cable, 1 Core G657A1 GJYXCH Steel Wire FTTH Drop Cable

Description:

FTTH Cable directly connected to their homes, their bandwidth, wavelength and transmission technology type are not restricted. The optical fiber unit id positioned in the centre. Two parallel strength member are placed at the two sides. A steel wire as the additional strength member is also applied ,then, the cable is completed with a black LSZH sheath.

Application:

Adopted to outdoor distribution;

Suitable for aerial, pipeline laying method;

As FTTH cable,for outdoor horizontal and vertical cabling.

Characteristics:

Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property;

Simple structure, light weight and high practicability;

Low smoke, zero halogen and flame retardant sheath.

Optical parameters and properties:

Optical

fiber type

 Test wavelength Decay

Full injection

bandwidth

(MHZ.km)

Effective modal

bandwidth

(MHZ.km)

Minimum

bending

radius(mm)

Typical

(dB/km)

Maximum

(dB/km)
G652D 1310/1550nm 0.36/0.22 0.5/0.4 ... ... 16
G657A1 10
G657A2 7.5
OM1 850/1300nm 3.0/1.0 3.5/1.5 ≥200/500 ... 30
OM2 ≥500/500 ... 30
OM3 ≥1500/500 ≥2000/... 7.5
OM4 ≥3500/500 ≥4700/... 7.5
OM5 850/953nm/1300nm 3.0/.../1.0 3.5/.../1.5 ≥3500/1850/500 ≥4700/2470/...

7.5

Specification:

Fiber count GJYXCH-1~4 GJYXFCH-1~4
Optical fiber Diameter(±1µm) 125µm
Coating diameter(±5µm) 250um
Messenger Material Steel wire
Diameter(mm) 1.0/1.2mm
Strength member Material Steel wire FRP/KFRP
Diameter(mm) 0.4~0.5mm

Outer

sheath

 Material LSZH
Thickness(mm) 0.5~0.8mm
Color Black
Cable Outside diameter(mm) 2.0*5.2mm
Cable weight (kg/km) 19 18

Max tensile

Force (N)

Long-term/

Short-ter

 250/500 250/500

Crush

resistance

(N/100mm)

Long-term/

Short-term

 1000/2200 1000/2200

Min bend

radius(D)

Dynamic/

Static

 20/10 20/10
Running temperature

-20 ~ +70 ℃

ANATEL Approved 1C 2C 4C G657A Flat FTTH Drop Cable GJYXCH Steel Wire Flat Drop Fiber Cable

ANATEL Approved 1C 2C 4C G657A Flat FTTH Drop Cable GJYXCH Steel Wire Flat Drop Fiber Cable

ANATEL Approved 1C 2C 4C G657A Flat FTTH Drop Cable GJYXCH Steel Wire Flat Drop Fiber Cable

ANATEL Approved 1C 2C 4C G657A Flat FTTH Drop Cable GJYXCH Steel Wire Flat Drop Fiber Cable

ANATEL Approved 1C 2C 4C G657A Flat FTTH Drop Cable GJYXCH Steel Wire Flat Drop Fiber Cable

FAQ:

Q: Do you provide OEM service ?
A: Yes, we can print your logo on the cable.

Q: Can you provide free samples ?
A: If we have stock, free sample is available.

Q: How can you guarentee the quality ?
A: Build on our perfect quality management system, all of our products were 100% tested before the shipment.

Q: What is the min
A: Generally 10km.

Q: What's your payment terms ?
A: We accept T/T, Western Union, Paypal, L/C
