1core 2core 4core FTTH Faceplate SC LC Adapter UL94V0 ABS Wall Mounting FTTH Rosette Box
1core 2core 4core FTTH Faceplate SC LC Adapter UL94V0 ABS Wall Mounting FTTH Rosette Box
1core 2core 4core FTTH Faceplate SC LC Adapter UL94V0 ABS Wall Mounting FTTH Rosette Box
1core 2core 4core FTTH Faceplate SC LC Adapter UL94V0 ABS Wall Mounting FTTH Rosette Box
1core 2core 4core FTTH Faceplate SC LC Adapter UL94V0 ABS Wall Mounting FTTH Rosette Box
1core 2core 4core FTTH Faceplate SC LC Adapter UL94V0 ABS Wall Mounting FTTH Rosette Box
1core 2core 4core FTTH Faceplate SC LC Adapter UL94V0 ABS Wall Mounting FTTH Rosette Box
1core 2core 4core FTTH Faceplate SC LC Adapter UL94V0 ABS Wall Mounting FTTH Rosette Box
1core 2core 4core FTTH Faceplate SC LC Adapter UL94V0 ABS Wall Mounting FTTH Rosette Box
1core 2core 4core FTTH Faceplate SC LC Adapter UL94V0 ABS Wall Mounting FTTH Rosette Box
1core 2core 4core FTTH Faceplate SC LC Adapter UL94V0 ABS Wall Mounting FTTH Rosette Box
1core 2core 4core FTTH Faceplate SC LC Adapter UL94V0 ABS Wall Mounting FTTH Rosette Box
Specifications
Brand Name :
Takfly
Model Number :
TKS-1805-04B
Certification :
CE,RoHS,FCC
Place of Origin :
China
MOQ :
10pcs
Price :
USD 0.7 ~ USD 1
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability :
50000pcs/week
Delivery Time :
2-3 working days
Packaging Details :
box + carton
Material :
ABS / ABS+PC
Adapter :
4 SC SX / 4 LC DX
Color :
Grey
Pigtial :
4 SC / 8 LC
Description
Manufacturer 1core 2core 4core roseta ftth faceplate box SC LC adapter UL94V0 ABS wall mounting FTTH rosette box

Description:

Fiber Access Terminal Box is used as a termination point for the feeder cable to connect with drop cable in the FTTx network system.

Fiber Access Terminal Box integrates fiber splicing, splitting, distribution, storage, and cable connection in one solid protection box.

Pre-terminated Fiber Access Terminal helps save installation time and labor cost by plugging the pre-terminated cable assemblies into the matching fiber adapters without terminating fiber optic cable in the field again.

Takfly 4 port FTTH small FAT is able to hold up to 4 subscribers. It is used as a termination point for the drop cable to connect with patch cable in FTTH indoor application. It integrates fiber splicing, termination, storage and cable connection in one solid protection box.

Feature:
1. It is used for different kinds of modules and applied to the working area subsystem.
2. It uses embedded surface frame, easy to install and disassemble, it is with protective door and dusty free, can do OEM for any customers and print requested LOGO.
3. With application of fiber SC duplex and other different environment installed plate or flush plate. All modules can be configured on customer's choice.
4. Cable management can be connected without cutting(with express port). All modules are free of welding.
Application:
1. The telecommunication network, metropolitan area network, optical fiber communication system.
2. Optical testing equipment/instrument.
3. CATV optical fiber, optical fiber sensor.
4. Optical fiber broadband access network, FTTH optical fiber.
5. Optical fiber distribution frame, frame type and wall type optical fiber distribution unit.
Performance index:
Item Technical data
Model No. TKS-1805-04B
Application 3.0 x 2.0 mm drop cable or indoor cable
Fiber diameter 125μm ( G652D, G657A1, G657A2, G657B3 )
Tight cladding diameter 250μm & 900μm
Mode of application Singlemode & Multimode
Tensile strength >50 N
End-use temperature -40~+85ºC
Adaptor SC & LC
Insertion loss ≤0.2dB(1310nm & 1550nm)
output 4
Size 100.6*80.6*28.8 mm
Max fiber capacity 4 SC / 8 LC

Standard packing: 200 pieces per carton

MOQ: 20 pieces

Sample: Free sample is available for quality evaluation.

Shipping way: Express, Air fright, Sea freight

OEM: Support

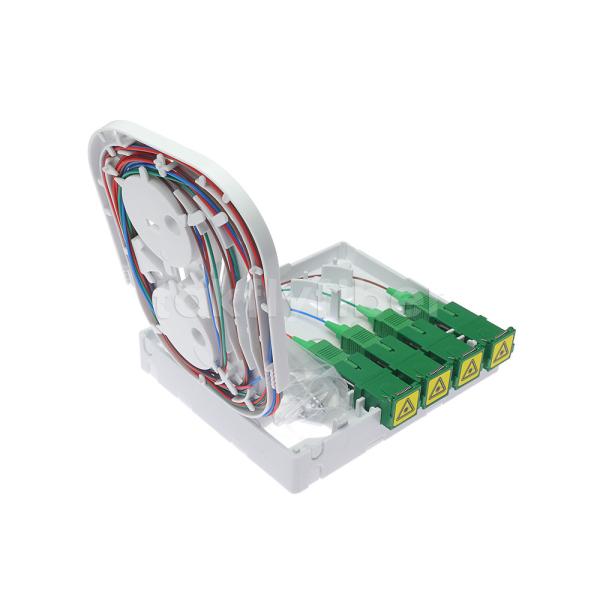

Pictures:

1core 2core 4core FTTH Faceplate SC LC Adapter UL94V0 ABS Wall Mounting FTTH Rosette Box

1core 2core 4core FTTH Faceplate SC LC Adapter UL94V0 ABS Wall Mounting FTTH Rosette Box

1core 2core 4core FTTH Faceplate SC LC Adapter UL94V0 ABS Wall Mounting FTTH Rosette Box

1core 2core 4core FTTH Faceplate SC LC Adapter UL94V0 ABS Wall Mounting FTTH Rosette Box

1core 2core 4core FTTH Faceplate SC LC Adapter UL94V0 ABS Wall Mounting FTTH Rosette Box

1core 2core 4core FTTH Faceplate SC LC Adapter UL94V0 ABS Wall Mounting FTTH Rosette Box

1core 2core 4core FTTH Faceplate SC LC Adapter UL94V0 ABS Wall Mounting FTTH Rosette Box

1core 2core 4core FTTH Faceplate SC LC Adapter UL94V0 ABS Wall Mounting FTTH Rosette Box
