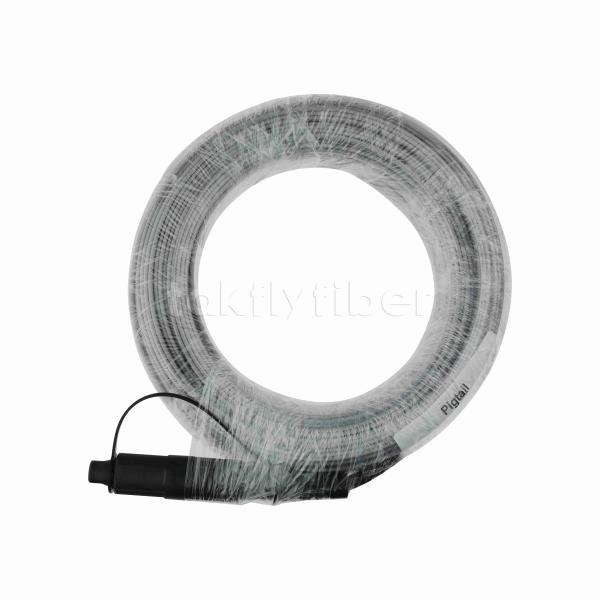

Optitap SC/APC 1Core FTTH Self-Support Drop Cable Fiber Optic Pigtail 40M SM G657A1 LSZH Low Friction Jacket

A FastConnect drop cable adopts an anti-vibration design. It allows plug and play (no splicing), helps customers deploy it fast, and reduces time. In addition, it ensures high network reliability and durability.

• Fiber Optic Attributes

• 1. Mode field diameter:8.6um±0.4um at 1310nm
• Cladding diameter:125.0um±0.7um
• Coating diameter:245um±10um
• Coating-cladding concentricity error:≤12.5um
• Cut-off wavelength:≤1260nm
• Attenuation coefficient:1310≤0.4dB 1550≤0.3dB

Fiber Optic Pigtail Specifications

• FTTH Cable information

• Number of fiber:1 core
• Fiber type:G657A1
• Strength member material: Steel wire;
• Diameter:0.5mm*2

Self support Messenger wire:

• Material:steel wire
• Diameter:1.2mm

Outer sheath:

• Material:LSZH Black
• Cable size:5.1*2.0mm

Connector Test specifications

Optical fiber performance

Why choose TAKFLY--Advantages as follows:
Professional manufacturer:

• With more than 24 years manufacturing experience in Fiber optic products;
• More than 450 assembly workers with 3 years experienced;
• More than 10 R&D Engineers;
• 16 Sets Germany imported Injection Machine and 16 Production Lines;
• More than 30 sets of Testing Machines: OTDR,3D,VFL,IL&RL test instrument; tension strenth tester, Crush Resistance tester, Power meter tester, light checker, ect.
• OEM Brand is acceptable.
• Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia ,Global Soure Electronic Exhibition,etc.

Quality Control:

• Spot check the raw material incoming inspection before production;
• Fully check after every individual process finished;
• Fully check production half done;
• Fully check the finished products before packing;
• Spot check before shipping;

Delivery:

• Samples: 1-3 working days.
• Mass Production Order: 3-7 working days.
• Packaging: Plastic Bag, Carton and Pallet are available according to your request.

Price: If your QTY is big, the price could be negotiated.

I have been working in this field more than 10 years, I believe, I could give you very good service and professional answers!

If you’re interested in our products or have any doubt, why not send me inquiry at once?
