Remote Control Direction Control Hydraulic Valve with Support After-sales Service
Remote Control Direction Control Hydraulic Valve with Support After-sales Service
Remote Control Direction Control Hydraulic Valve with Support After-sales Service
Remote Control Direction Control Hydraulic Valve with Support After-sales Service
Remote Control Direction Control Hydraulic Valve with Support After-sales Service
Remote Control Direction Control Hydraulic Valve with Support After-sales Service
Remote Control Direction Control Hydraulic Valve with Support After-sales Service
Remote Control Direction Control Hydraulic Valve with Support After-sales Service
Remote Control Direction Control Hydraulic Valve with Support After-sales Service
Remote Control Direction Control Hydraulic Valve with Support After-sales Service
Remote Control Direction Control Hydraulic Valve with Support After-sales Service
Remote Control Direction Control Hydraulic Valve with Support After-sales Service
Specifications
Application :
General
Port Size :
OEM
Warranty :
3 years
Place of Origin :
Tianjin, China
Power :
Manual
Temperature of Media :
High Temperature, Low Temperature, Medium Temperature, Normal Temperature
Brand Name :
OEM
Structure :
BUTTERFLY
Media :
Water
Customized support :
OEM, ODM, OBM
Color :
Customized
Size :
Customized
Weight :
Depends on specifications
Material :
Customized
Name :
butterfly valve
Certificate :
Complete
Quality :
Excellent
After-sales service :
Support
Standard :
Customized Service
Body material :
Ductile Iron
Type :
Bypass Control Valves
Packaging Details :
Wooden case
MOQ :
1
Price :
$10.00/sets 10-19 sets
Description
Product Display

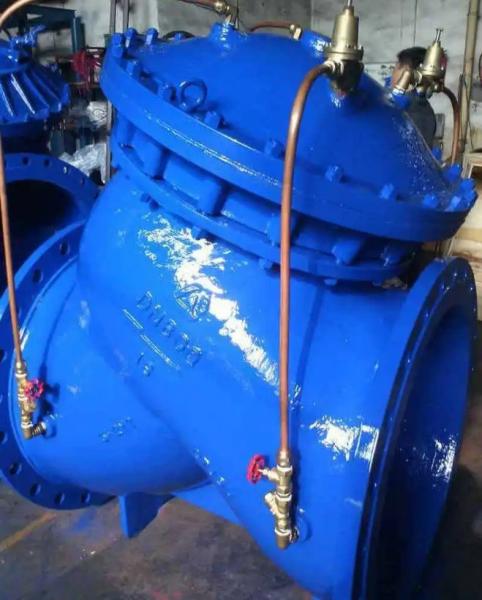

Purpose Multi-function Control Valve
This valve is used mainly for water supply and drainage system and can be set on the pump outlet to prevent the pump from getting
harmed the medium back flow. it can also be set on the mouth of a water outlet pipe to prevent the medium from backflow.
Features
Simple structure, reliable performance, long durable, open-close times can be up to over million ones, suitable for sewage.

Executive Standard
GB/T 9113.1
API 609 Category A
BS EN593/BS5155
Performance parameters
Nominal diameter:2"-24"/DN50-DN600
Working pressure:10Bar/16Bar/25Bar
Face-to-face: API 609 Table 1/ISO 5752 Series 20/BS 5155
Flange accommodation: ANSI B16.1 Class125/150
EN1092-2 PN6/10/16/25
Top Flange:ISO5211
Tightness Inspection: API 598/ISO 5208,/EN12226-2
Main part material
Body: Ductile Iron ,Cast steel, Stainless Steel
Disc: Ductile Iron ,Cast steel, Stainless Steel
Stem: Stainless Steel
Sealing ring: Stainless Steel/PTFE
Packing: Flexible Graphite/PTFE
Remote Control Direction Control Hydraulic Valve with Support After-sales Service
Remote Control Direction Control Hydraulic Valve with Support After-sales Service
Specification
Remote Control Direction Control Hydraulic Valve with Support After-sales Service
Production Process
Remote Control Direction Control Hydraulic Valve with Support After-sales Service
Pressure Testing
Each valve shall be subject to pressure test before delivery. Unqualified valves shall not be sold.16 kg shell pressure test, pressure test pressure 24 kg; Maintain the pressure for 2 minutes; Sealing pressure test: test pressure 17.6 kg; Hold the pressure for 2 minutes
Remote Control Direction Control Hydraulic Valve with Support After-sales Service
Company Profile
Remote Control Direction Control Hydraulic Valve with Support After-sales Service
PMingyi Intelligent Equipment ( Tianjin) Co.,Ltd. is a leading producer that integrates the research, designand customized development, production and sales services of mechanical products. We provide OEM/ODM one-stop service for
clients,specialized invarious tank heads and ends, including elliptical heads, torispherical heads, hemispherical heads, flat heads, conical heads, dish heads, etc. Various types of tank heads are made in different materials grades like Carbon Steel, Stainless Steel, Aluminum, etc.
Remote Control Direction Control Hydraulic Valve with Support After-sales Service
Our team has good knowledge and expertise in forming all type of materials into different shapes, our hard working and flexible craftsmanship is ready non-stop to execute the orders within the shortest possible lead time and to maintain our commitments with our clients. We always provide the most economical and efficient solutions for clients tomaintain a sustainable business for the long-term.
Remote Control Direction Control Hydraulic Valve with Support After-sales Service
Remote Control Direction Control Hydraulic Valve with Support After-sales Service
Our Certificates
Remote Control Direction Control Hydraulic Valve with Support After-sales Service
Remote Control Direction Control Hydraulic Valve with Support After-sales Service
Remote Control Direction Control Hydraulic Valve with Support After-sales Service
Remote Control Direction Control Hydraulic Valve with Support After-sales Service
Package & Transport
Remote Control Direction Control Hydraulic Valve with Support After-sales Service
Application
1. Power industry
2. Water works
3. Offshore industry
4. Wastewater treatment
5. Oil and gas production
6. Pipeline
7. Commercial buildings
Remote Control Direction Control Hydraulic Valve with Support After-sales Service
FAQ
1. Q: Are you a manufacturer or trading company?
A: We are valve manufacturer and factory, and not trading company.
2. Q: Do you have agent or representative abroad?
A: We do not have agent abroad, please contact us to purchase valves
From TIANJIN TANGFA WATTS VALVE Co., Ltd...
Directly. 3. Q
: What's your product range? A: We can produce Butterfly valve, Gate valve, Check valve, Y strainer, Rubber Joint
By ISO/ANSI/DIN/JIS/ EN/GOST/AS standard.
4. Q: Is there any stock in your factory? And how about your lead time?
A: We stock valves with normal sizes. The lead time depends on your quantity,
Generally 30-35 days.
5. Q: Which countries do you export to?
A: We export directly to vast majority of countries in the world.
6. Q: What certificates will you provide?
A: We can provide CE/ ISO / WRAS.
7. Q: After-sales service
A: 18 months year warranty for all kinds of products.
As an experienced manufacturer, you can rest assured of the quality and sales service.
8. Q: Payment
A: T/T, L/C, OA, D/P, D/A.
9. Q: Transportation
A: Transported by DHL, UPS, EMS, FedEx, SF, by Air, by Sea.
10. Q: Do you provide free sample?
A: Free sample is OK for us.
11. Q: Do you accept custom design on size?
A: Yes, if the size is reasonable.
