Specifications
Brand Name :
Trancar Industries
Model Number :
TCM-CF
Certification :
ISO/CE
Place of Origin :
China
MOQ :
1 set
Price :
USD 12000-30000 Dollars
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
10 sets per Month
Delivery Time :
35 workdays
Packaging Details :
Standard Export Package
Product Name :
Steel tank shell Circumferential Seams smoothing machine
Color :
Blue/Red/Grey etc
Dimensions :
2000*900*3500mm
Weight :
2200 kg
voltage :
380V 415V 400V
Condition :
100% New
Certicaition :
CE/ISO
Warranty :
1 year
After-sales service :
Video technical support/Online surpport/Engineer oversea
Provide :
OEM & ODM
Description

Hefei Trancar Industries Steel tank shell Circumferential Seams smoothing machine with CE certificate

Automatic smoothing machine automatic planishing machine is designed for steel tank shell,cylinder surface welded seams welding seam treatments,such as planishing / flatten / crush and smoothing treatment after welding,So that to get better surface sanitary cylinder tanks.

There are longitudinal and circumferential welded joints on steel tank surface,so we have longitudinal welding seam planishing machine and circumferential joints planishing machine for option.Both two kinds welds seam planisher could be design & produced by Trancar Industries based on clients’ demands.

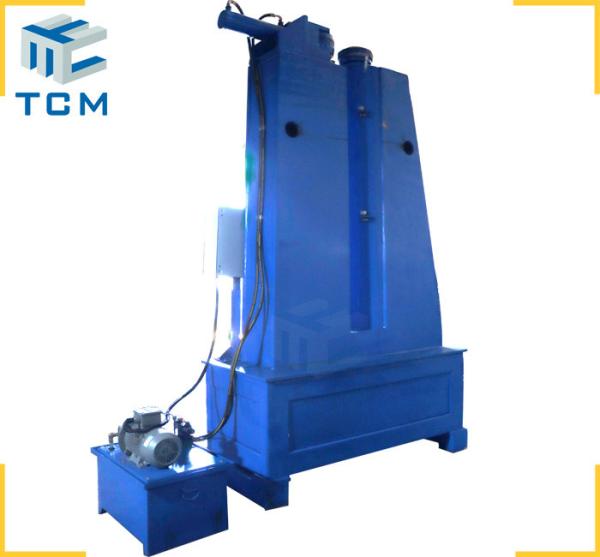

TCM-CP planishing equipment is an cylinder circumferential joints planishing machine.The machine is mainly composed of fuselage,rolling wheel,rolling guide rail,top tightening cylinder,hydraulic station,main transmission mechanism, lubrication and electrical control system.It’s mainly for planishing steel tank circular welded joints (seam),crushing tank shell welded joints and flatten vessel circular welding seams.It is widely applied in the industries of pharmaceuticals,chemical,environmental purification,food & beverage, water filtration,etc.

For more please contact us via contact@trancarindustries.com.

Steel tank shell Circumferential Seams smoothing machine package & delivery:

Standard export package will be used for planishing machine dispatch.

TCM-CF Steel tank shell cylinder Circumferential Seams smoothing machine parameter

Normal configuration(customer design acceptable)
Steel metal tank size Tank shell diameter 800-5000 mm
Tank shell Max.Weight 1 Ton / 2 Ton / 5 Ton /10 Ton
Planishing Speed ≦1000 mm/minute
Welded Seam Width 50-70mm / Based on demands
Planishing machine size Machine Dimension 2000*900*3500mm
Smoothing Roller Material Steel Gr12 case hardening
Operating pressure 12 Mpa
Input total Power / 6 kw
Power Supply 380V 415V / 50Hz 60HZ / 3p or Customization

Smoothing Machine For Circumferential Seams On Steel Tank Shell Surface

Smoothing Machine For Circumferential Seams On Steel Tank Shell Surface

CUSTOM DESIGN SERVICE IS AVAILABLE,CONTACT FOR MORE WELDING SEAM PLANISHING SOLUTIONS FOR YOUR TANKS AND SHEET.#WELDSFLATTENMACHINE #WELDINGSEAMPLANISHINGMACHINE #WELDEDJOINTSFLATTENEQUIPMENT
