Specifications
Brand Name :
Trancar Industries
Model Number :
TCM-WR
Certification :
CE/ISO
Place of Origin :
China
MOQ :
1 set
Price :
USD 15000-50000 Dollar per set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
20 sets per Month
Delivery Time :
35 work days
Packaging Details :
Custom design plywood box
Product name :
automatic grinding machine for steel wire rod surface grinding polishing
Color :
Yellow/Red/White etc
Condition :
100% new
Provide :
ODM & OEM
Description

Updated automatic grinding machine for steel wire rod surface grinding polishing

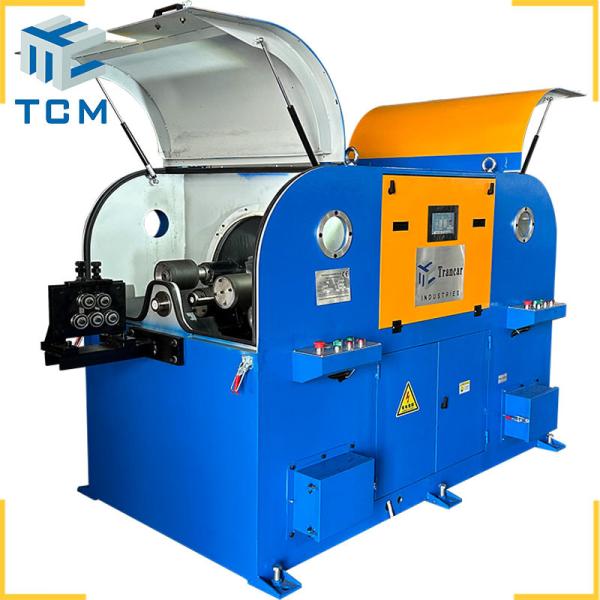

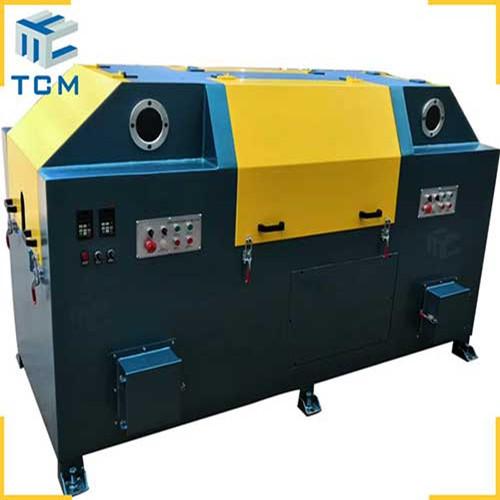

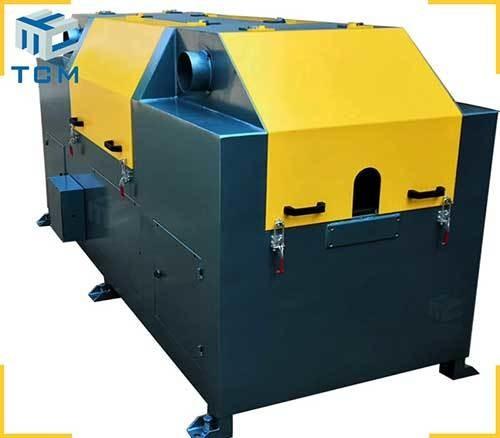

Trancar Industries Model TCM-WR automatic steel wire rod grinding machine is design for stainless steel metal wire rods’ surface grinding and buffing.This machine adopts mechanical method to process the surface of metal wire rod to grind,polish and rust,replace the original pickling, environmental protection and energy saving,meet the requirements of mass production,achieve high production efficiency and stable and reliable product quality.

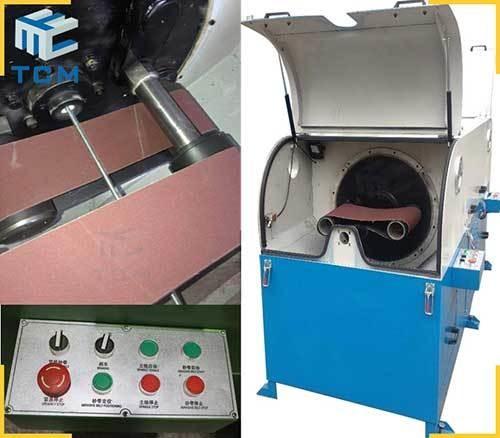

This belt sander removes oxide scale or oxide film and its particles from the wire.Through the four fixed rollers (single side) and two tension rollers supported by the turntable,two high-speed rotating abrasive belts are driven to polish,and the rotation speed of the turntable and the feed speed of the wire match each other.

The thickness of the double-headed belt can be freely combined according to the product's finish requirements.Custom design service is available.#WireRodgrindingmachine #surfacegrinder #Wiregrindingmachine #steelwiregrindingmachine

Better price Steel Wire Rod grinding machine parameter:

Normal configuration(customer design acceptable)

Wire Rod Diameter

1-5mm / 5-8mm / 8-16mm / 16-25mm

Machine Dimension

(L×W×H) 2650×1050×1300mm

Abrasive Belts Size

1600*500 mm / 1350*300mm / 1250*300mm etc

Production Efficiency

Polishing working speed

120-200 m/h

Input total Power

35 kw

Power Supply

380V 415V / 50Hz 60HZ / 3p or Customization

Machine Weight

/

2100kg

Color

Grey/Green/Blue/Red/Yellow Custom design

For option

Dust Collection system is available during polishing.

Automatic Grinding Machine For Steel Wire Rod Surface Grinding Polishing

Trancar Industries wire polishing machine package and delivery:

Automatic Grinding Machine For Steel Wire Rod Surface Grinding Polishing

Automatic Grinding Machine For Steel Wire Rod Surface Grinding Polishing

Contact Trancar Industries For more steel wire automatic polishing solutions
