Plasma Welder Steel Tank Automatic Welding Machine TIG Welding Machine
Plasma Welder Steel Tank Automatic Welding Machine TIG Welding Machine
Plasma Welder Steel Tank Automatic Welding Machine TIG Welding Machine
Plasma Welder Steel Tank Automatic Welding Machine TIG Welding Machine
Plasma Welder Steel Tank Automatic Welding Machine TIG Welding Machine
Plasma Welder Steel Tank Automatic Welding Machine TIG Welding Machine
Plasma Welder Steel Tank Automatic Welding Machine TIG Welding Machine
Plasma Welder Steel Tank Automatic Welding Machine TIG Welding Machine
Plasma Welder Steel Tank Automatic Welding Machine TIG Welding Machine
Plasma Welder Steel Tank Automatic Welding Machine TIG Welding Machine
Specifications
Brand Name :
Trancar Industries
Model Number :
TCM-TW
Certification :
CE/ISO
Place of Origin :
China
MOQ :
1 set
Price :
USD 15000-100000 Dollar per set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
20 sets per Month
Delivery Time :
45 work days
Packaging Details :
Custom design plywood box
Product Name :
Steel tank automatic tig Welding machine plasma welder
Color :
Blue/Yellow/Red/White etc
Dimension :
8000x2000x3800 mm
Weight :
3500 kg
Condition :
100% new
After-sales service :
Video support/Engineer oversea
Description

Steel tank cylinder automatic Welding machine

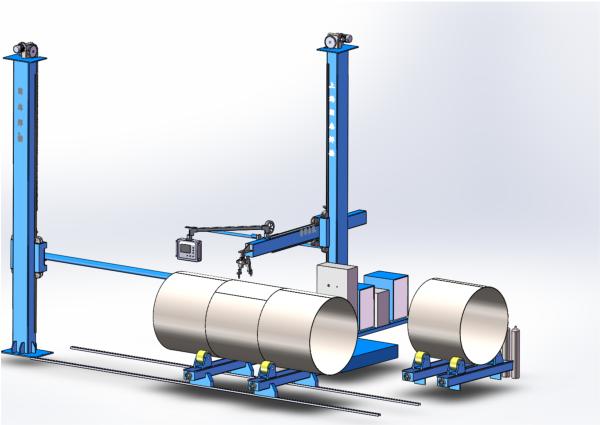

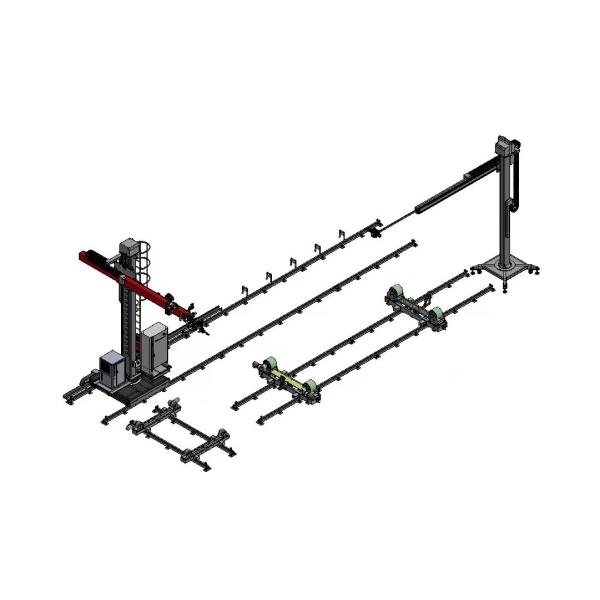

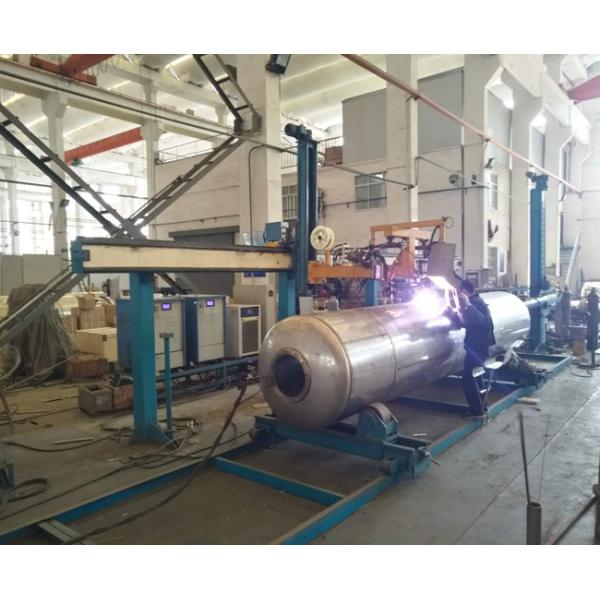

TCM-TW auto welding machine is designed for steel pipe tube and tank shell fitting up welding.The welding source is laser or TIG.This type machine mainly made up of upright pillar,transverse beam, return and elevating mechanism,expansion mechanism of transverse arm,cross regulation,electrical box,and bottom base and so on.It’s 2 in 1 auto welding machine which could weld longitudinal and circular tanks.For more details,please feel free to contact us,custom design pipe welding machine is available based on clients demands.

TCM-TW Steel tank automatic Welding machine parameter:

Normal configuration(customer design acceptable)

Steel pipe size

Outside diameter

200-4000mm

Length

<=6000 mm

Tank Roller Max.Loading capacity

5 Ton /10 Ton or customization

Welding Machine size

Machine Dimension

8000*2000*3800mm

Boom expansion speed

120—1200 mm/min

Boom elevating speed

1000 mm/min

Power Supply

220V / 380V 415V / 50Hz 60HZ / 3p or Customization

Machine Weight

/

3500 kg

Color

Blue/Grey/Green/Red/Yellow Custom design

Welding machine and solutions

Plasma Welder Steel Tank Automatic Welding Machine TIG Welding Machine

Plasma Welder Steel Tank Automatic Welding Machine TIG Welding Machine

Plasma Welder Steel Tank Automatic Welding Machine TIG Welding Machine
