1500W 2000W 3000W Handheld Fiber Laser Welding Machine
1500W 2000W 3000W Handheld Fiber Laser Welding Machine
1500W 2000W 3000W Handheld Fiber Laser Welding Machine
1500W 2000W 3000W Handheld Fiber Laser Welding Machine
1500W 2000W 3000W Handheld Fiber Laser Welding Machine
1500W 2000W 3000W Handheld Fiber Laser Welding Machine
1500W 2000W 3000W Handheld Fiber Laser Welding Machine
1500W 2000W 3000W Handheld Fiber Laser Welding Machine
1500W 2000W 3000W Handheld Fiber Laser Welding Machine
1500W 2000W 3000W Handheld Fiber Laser Welding Machine
1500W 2000W 3000W Handheld Fiber Laser Welding Machine
1500W 2000W 3000W Handheld Fiber Laser Welding Machine
Specifications
Brand Name :
Trancar Industries
Model Number :
1500W / 2000W / 3000W
Certification :
CE/ISO
Place of Origin :
China
MOQ :
1 set
Price :
USD 5000-25000 Dollar per set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
20 sets per Month
Delivery Time :
15 work days
Packaging Details :
Custom design plywood box/Carton Boxes
Product Name :
Handheld Fiber Laser Welding machine
Laser Power :
1500W / 2000W / 3000W
Laser Beam :
1070nm
Optical Fiber :
25um ,10M
Dimensions :
880x410x660mm
Weight :
220kg
Condition :
100% new
Spot Diameter :
0.2 to 3mm
Focal Length :
F=100mm
Repeat Precision :
±0.02mm
Description

1500W 2000W 3000W handheld fiber laser welding machine from China

Machine Introduction:

The fiber continuous welding machine is a high-end, new type of welding method. The laser beam is coupled to

the fiber,and after being transmitted over a long distance, it is processed into parallel light. Focusing on the workpiece

to carry out continuous welding, the welding effect is stronger and the weld seam is more fine and beautiful due to the

continuity of the light output. According to the different needs of different industries, the equipment can meet the needs

of users in different industries, such as advertisment letters, metal plate, cabinet, shelf, door, window, elevator,

Washing Basin, etc. many metal products industries.

1500W 2000W 3000W Handheld Fiber Laser Welding Machine

1500W 2000W 3000W Handheld Fiber Laser Welding Machine

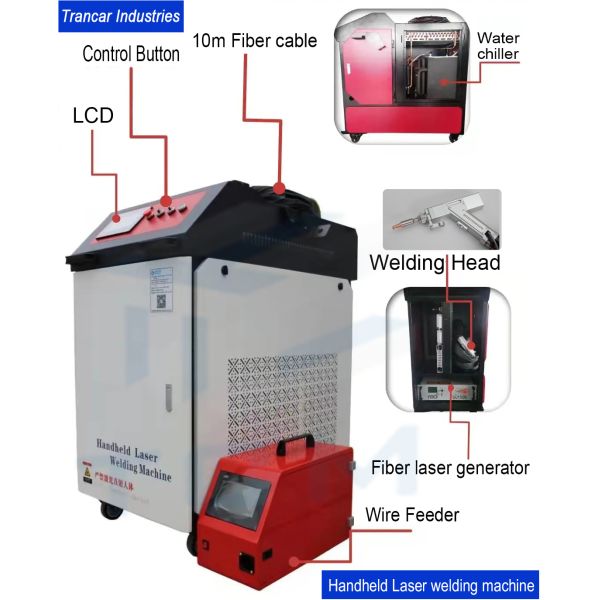

Equipment features:

1,2000W Reci fiber laser source, the laser life 50,000-60,000 hours, free maintenance.

2, Hand-held holding welding head is easily operated ,pciking and moving.

3,Using special welding software .it has function of continuous laser beam and the adjustable output waveform,

which can assure the precious and high-speed welding

4, 2000W maximum welding 4-5mm stainless steel.

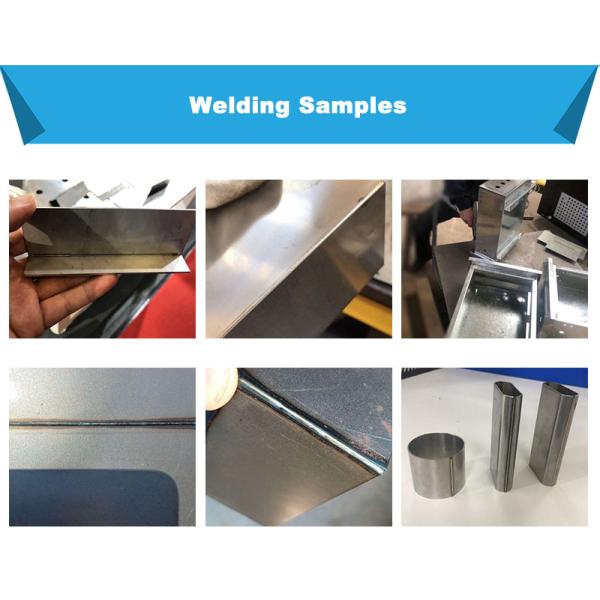

Application

Suitable for welding different metal stainless steel, mild steel,aluminum,brass etc.

1500W 2000W 3000W Handheld Fiber Laser Welding Machine

Main Technical parameters

Laser power

1500W / 2000W / 3000W

1500W
Laser wavelength

108nm

1080nm
Welding gap (1m/min) 4-5mm stainless steel
Welding gap (1m/min) 4-5 mm carbon steel
Welding gap (1m/min) 3-4mm aluminum alloy
Welding gap

＜0.2mm
Auto wire feeding

0.8-1.6mm wire
Optical length

10M
Power consumption

≤ 7 KW
Power supply

380V 50-60HZ
Water cooling Customized industrial double temperature water cooling
Welding gas Argon or Nitrogen
Machine weight 220 KG

1500W 2000W 3000W Handheld Fiber Laser Welding Machine

For more detailed fiber laser welding solutions please contact Trancar industries directly.
