Specifications
Brand Name :
Trancar Industries
Model Number :
TCM-D
Certification :
CE/ISO
Place of Origin :
China
MOQ :
1 set
Price :
USD 9000-25000 Dollar per set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
25 sets per Month
Delivery Time :
35 work days
Packaging Details :
Custom design plywood box/Carton Boxes
product_name :
Dished Head surface grinding equipment
brand :
Trancar Industries
type :
surface grinding machine
material :
steel
features :
automatic,interior and exterior surface grinding
Warranty :
18 Month
Voltage :
380V 400V 415V etc
Provide :
ODM & OEM
Description

Hefei Trancar Industries steel dished head interior and exterior surface grinding equipment automatic surface grinding machines

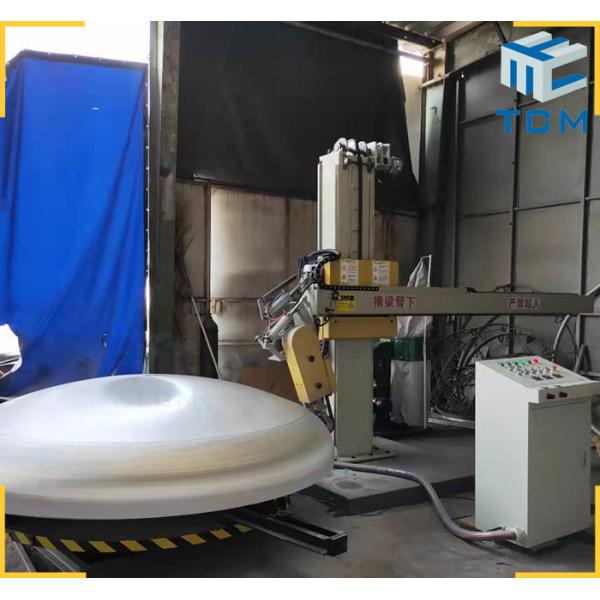

Trancar Industries TCM steel dish head grinding equipment is made up of column and boom manipulator,It could grind steel dished head interior and exterior surface in mechanical way.For dished head grinding equipment working video please contact us.

TCM-D series steel automatic grinding equipment is suitable for all kinds of standard steel metal head's surface grinding,such as cylinder heads,vessel heads,tank caps,spherical cap,dished end,conical head,spherical head,tank covers,special heads surface polishing,stainless steel oval head inside and outside surface grinding polishing, pressure vessel head polishing etc.

This machine makes surface friction through the contact of polishing wheel and the work piece then to polish the head surface inside and outside,and grind weld surface.And improve the surface smoothness of the work piece.According to head inside surface curve.it can be divided into three sections curve:subsection,time-sharing and different speed.The running time of the beam can be adjusted directly in the control cabinet with three time-controllers.

The running speed of the up and upon of boom is set in the corresponding frequency speed controller.The running track of grinding head and head surface consistent when the machine is polishing.According to the grinding head floating technology.The grinding head close to the work piece's surface to grind uniformly when the machine is doing polish working.

Beside steel dished head grinding equipment,Trancar Industries also produce automatic polishing machine for steel tank shell,cylinder body surface grinding.Trancar Industries polishing equipment are widely used in the fields of pharmaceutical industry,medical industry,food & Beverage industry,water purification,Pressure vessel industry,Cosmetic industry,waste water treatment,Semiconductor industry,Photovoltaic industry etc.

Steel dished head grinding equipment parameter:

Normal configuration(customers' requirement acceptable)

Available Polishing workpiece size

(Tank head/dish ends)

Inside & outside diameter

450~5000mm / 6000 mm

Turntable Max.Loading capacity

1 Ton / 2 Ton /5 Ton / 10 Ton for option or custom design 15 Ton,20 Ton.

Polishing Precision

Surface roughness(Ra)

<=0.25μm

Production Efficiency

/

6~12 m2/hour

Total Dimension

Machine Dimension

3500*1600*3080mm

Column Dimension

300x400x8 mm

Beam Dimension

150x200x6 mm

Input total Power

/

12 kw

Power Supply

380V 415V / 50Hz 60HZ / 3p or Customization

Color

Grey/Green/Blue/Red/Yellow Custom design

Machine Weight

/

2250kg

Suitable Polishing Material

Abrasive sanding belts,grinding wheels (flap/cloth/ emery/Nylon wheel etc)

Steel Automatic Polishing Machine Dished End Polishing Machine Steel Automatic Polishing Machine Dished End Polishing Machine

Steel Automatic Polishing Machine Dished End Polishing Machine

Polishing machine working in client's workshop:

Steel Automatic Polishing Machine Dished End Polishing Machine

Polishing machine surface grinding equipment delivery & package:

Steel Automatic Polishing Machine Dished End Polishing Machine

Steel Automatic Polishing Machine Dished End Polishing Machine

Contact Trancar Industries for more steel surface grinding equipment polishing machine & solutions:
