Specifications
Brand Name :
Trancar Industries
Model Number :
TCM-YT
Certification :
CE/ISO
Place of Origin :
China
MOQ :
1 set
Price :
USD 9000-25000 Dollar per set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
25 sets per Month
Delivery Time :
35 work days
Packaging Details :
Custom design plywood box/Carton Boxes
Product Name :
steel cylinder and tank cap surface grinding buffing polishing machine
Dimension :
3500x1600x3050mm
Weight :
3500kg
Color :
Blue/Red/Grey
Voltage :
380V 400V 415V etc
Usage :
Steel tank surface cleaning,rust removal,mirror surface achieving
Polishing Efficiency :
8-12 m2 per hour
Warranty :
1 year
Atfer-sales service :
Video support/Engineer oversea/Technical online
Provide :
ODM & OEM
Description

2 in 1 dual use automatic polishing machine for steel cylinder and tank cap surface grinding buffing from Hefei Trancar Industries Co.,Ltd China

Trancar Automatic polishing machine:

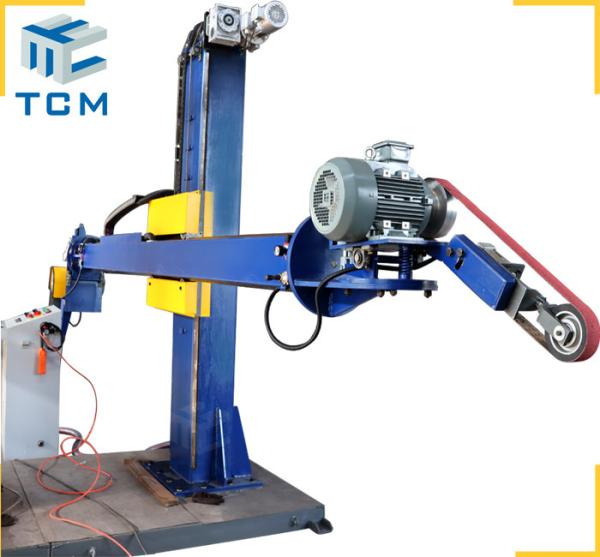

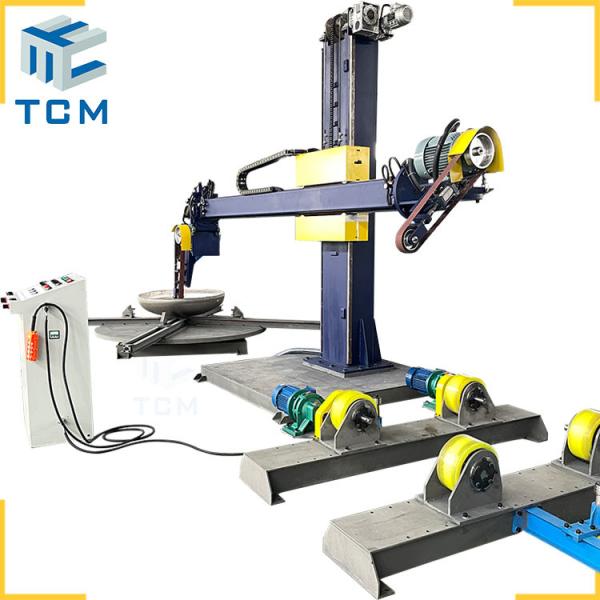

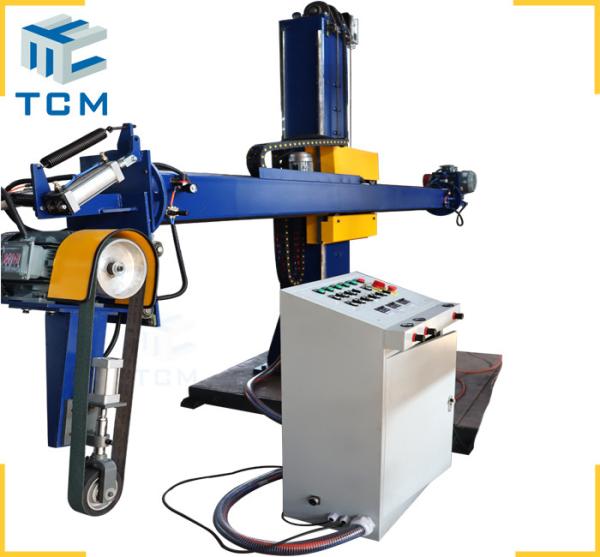

TCM-YT column and boom manipulator polishing machine is 2 in 1 dual use multifunction automatic polishing machine for stainless steel cylinder shell and tank cap interior & exterior surface grinding buffing.This model is mainly for both tank shell and dished head tank cap surface’s treatments, such as polishing grinding and buffing with two polishing motors on each side of machine beam(boom),economical and environmental.But it’s couldn’t working at the same time.

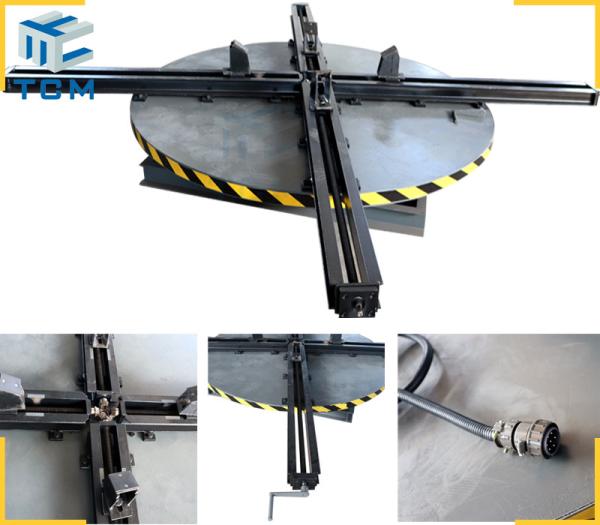

TCM-YT polishing machine can polish & grind for the different workpiece like tank body,tank head and dish ends.Using impeller with different grinding mesh grit to meet the demand on polishing.It is widely applie to medical,chemical,environmental purification,food and beverage,as well as water filtration,etc.Max.loading capacity 5 ton cylinder tank rotatory roller and 2 ton max.loading capacity tank caps rotary table clamping system are equip on machine.Custom made service is available too.

steel cylinder and tank cap automatic polishing machine parameter:

Normal configuration(customer design acceptable)

Steel metal tank size

Outside diameter

400~5000mm / 7000 mm

Inside diameter

400~5000mm / 7000 mm

Length

<=5000mm / 8000 mm

Tank Roller Max.Loading capacity

1 Ton / 2 Ton / 5 Ton /10 Ton or customization

(13T,15T,20T)

Dish end/Tank Head Size

Inside & outer Diameter

450~5000mm / 6000 mm

Turntable Max.loading capacity

1 Ton / 2 Ton /5 Ton / 10 Ton for option or custom design 15 Ton,20 Ton.

Polishing Precision

Surface roughness(Ra)

<=0.25μm

Production Efficiency

Polishing working speed

6~12 m2/h

Total Dimension

Machine Dimension

4500*1600*3080mm

Column Dimension

300x400x8 mm

Beam Dimension

150x200x6 mm

Input total Power

/

15 kw

Power Supply

380V 415V / 50Hz 60HZ / 3p or Customization

Machine Weight

/

3550kg

Color

Grey/Green/Blue/Red/Yellow Custom design

Suitable Polishing Materials

Abrasive sanding belts,grinding wheels. (flap/cloth/ emery/Nylon wheel etc)

Dispatch:steel polishing machine package and container loading

2 In 1 Automatic Polishing Machine For Steel Cylinder Tank Cap Surface Grinding Buffing

2 In 1 Automatic Polishing Machine For Steel Cylinder Tank Cap Surface Grinding Buffing

Trancar steel cylinder tank cap polishing machine workshop in factory:

2 In 1 Automatic Polishing Machine For Steel Cylinder Tank Cap Surface Grinding Buffing

2 In 1 Automatic Polishing Machine For Steel Cylinder Tank Cap Surface Grinding Buffing
