400V Steel Dish Head Tank Cap Surface Automatic Grinding And Polishing Machine
400V Steel Dish Head Tank Cap Surface Automatic Grinding And Polishing Machine
400V Steel Dish Head Tank Cap Surface Automatic Grinding And Polishing Machine
400V Steel Dish Head Tank Cap Surface Automatic Grinding And Polishing Machine
400V Steel Dish Head Tank Cap Surface Automatic Grinding And Polishing Machine
400V Steel Dish Head Tank Cap Surface Automatic Grinding And Polishing Machine
400V Steel Dish Head Tank Cap Surface Automatic Grinding And Polishing Machine
400V Steel Dish Head Tank Cap Surface Automatic Grinding And Polishing Machine
400V Steel Dish Head Tank Cap Surface Automatic Grinding And Polishing Machine
400V Steel Dish Head Tank Cap Surface Automatic Grinding And Polishing Machine
400V Steel Dish Head Tank Cap Surface Automatic Grinding And Polishing Machine
400V Steel Dish Head Tank Cap Surface Automatic Grinding And Polishing Machine
Specifications
Brand Name :
Trancar Industries
Model Number :
TCM-D
Certification :
ISO 9001 CE
Place of Origin :
China
MOQ :
1 sets
Price :
5000-12000 USD/set
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
20 sets per month
Delivery Time :
10-35 days
Packaging Details :
Standard Export packages
Name :
Steel dish head surface automatic polishing machine
Dimension :
3500x1060x3080mm
Weight :
2250 kg
Power supply :
380V/400V/415V etc
Frequency :
50Hz/60Hz
Application :
Tank heads surface grinding polishing buffing
Turntable Max.loading capacity :
1T/3T/5T/10T etc
Color :
Blue/Red/Gray
After-sales service provided :
Engineer oversea service available
OEM/ODM :
Available
Warranty :
1 year
Polishing Precision :
Ra <=0.25μm
Model :
TCM-D
Description

Steel dish head tank cap surface automatic polishing grinding machine

How to get mirror surface for your stainless steel dish head mirror surface with Trancar Industries TCM-D automatic polishing machine?

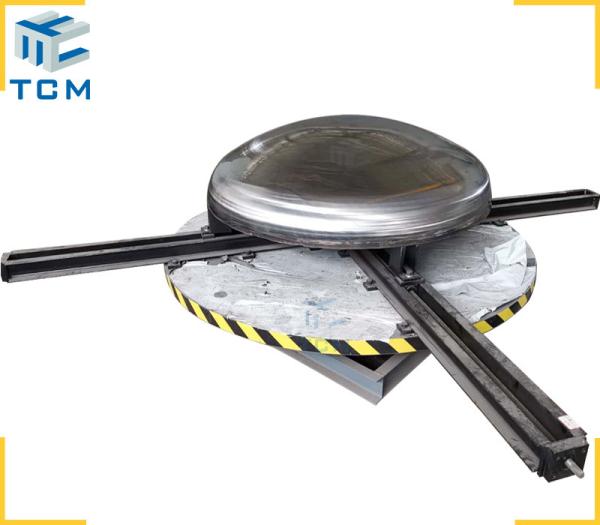

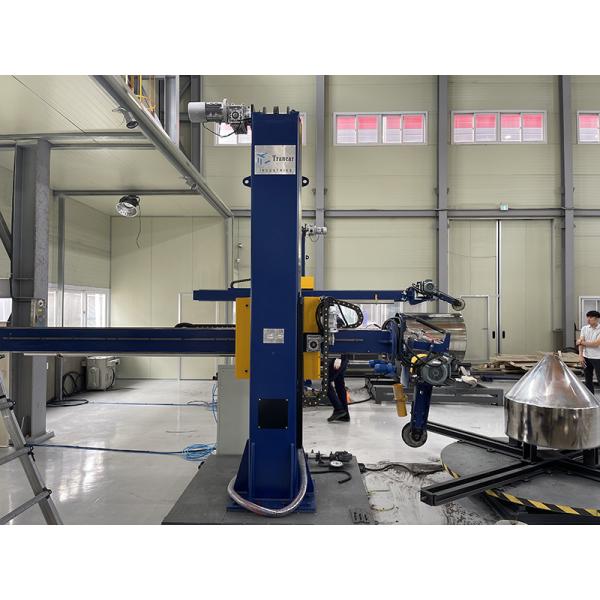

TCM-D column and boom manipulator automatic surface grinding machine is for steel metal tank end,dish head,tank cap / bottom / cone inner outer surface polishing and buffing.

This model is mainly used for the surface polishing stainless steel / metal /aluminum /copper dished end / tank head / cylinder head.Also could for vertical tank surface grinding.

TCM-D grinding machine is suitable for all kinds of standard head polishing,conical head polishing,spherical head surface polishing,dish head polishing,special heads polishing,stainless steel oval head inside and outside surface grinding polishing, pressure vessel head polishing etc.it’s widely used in the fields of pharmaceutical industry,medical industry,food & Beverage industry,water purification,Pressure vessel industry,Cosmetic industry,waste water treatment,Semiconductor industry,Photovoltaic industry etc.

TCM-D Automatic dished head polishing machine parameter:

Normal configuration(customers’ requirement acceptable)

Available Polishing workpiece size

(Tank head/dish ends)

 Inside & outside diameter 450~5000mm / 6000 mm
Turntable Max.Loading capacity 1 Ton / 2 Ton /5 Ton / 10 Ton for option or custom design 15 Ton,20 Ton.
Polishing Precision Surface roughness(Ra) <=0.25μm
Production Efficiency / 6~12 m2/hour
Total Dimension Machine Dimension 3500*1600*3080mm
Column Dimension 300x400x8 mm
Beam Dimension 150x200x6 mm
Input total Power / 12 kw
Power Supply 380V 415V / 50Hz 60HZ / 3p or Customization
Color Grey/Green/Blue/Red/Yellow Custom design
Machine Weight / 2250kg
Suitable Polishing Material Abrasive sanding belts,grinding wheels (flap/cloth/ emery/Nylon wheel etc)
