180 Degree 5m/Min Hydraulic Tilt Table , H Beam Container Tilter
180 Degree 5m/Min Hydraulic Tilt Table , H Beam Container Tilter
180 Degree 5m/Min Hydraulic Tilt Table , H Beam Container Tilter
180 Degree 5m/Min Hydraulic Tilt Table , H Beam Container Tilter
Specifications
Place of Origin :
China
Brand Name :
weldsuccess
Certification :
CE, ISO9000
Model Number :
FZ180
OEM :
Acceptable
MOQ :
1set
Price :
Negotaible
Packaging Details :
Mainframe naked in container and electric control part packed in plywood case then in container
Delivery Time :
20days
Payment Terms :
TT/LC
Supply Ability :
30sets/month
Price terms :
FOB (Shanghai) or CIF (named port)
Description

Hydraulic Tilter 180° Overturning Machine

Quick Details

  • The equipment mainly used for overturn 90° or 180° of work piece during the process of H-beam production;
  • It is the special equipment for overturning and movable;
  • Beam welding structure with enough capacity and intensity;

1. Introduction

The equipment mainly used for overturn 90° or 180° of work piece during the process of H-beam production. It is the special equipment for overturning and movable, which is widely used for welding overturning, straightening overturning and manual welding. It also can be used in other applications. We also welcome special requirements.

2. Main Parameters

Model

FZ180

Applicable work piece weight (t)

≤20t

Travel motor power (kW)

1.5

Travel speed (m/min)

5

Overturning oil cylinder diameter (mm)

φ150

Max pressure of hydraulic system (MPa)

16

Rail center distance (mm)

700 or upon actual conditions

Above are our standard models and parameters, and it can be designed and manufactured on request.
* We reserve the right to alter specifications without prior notice.

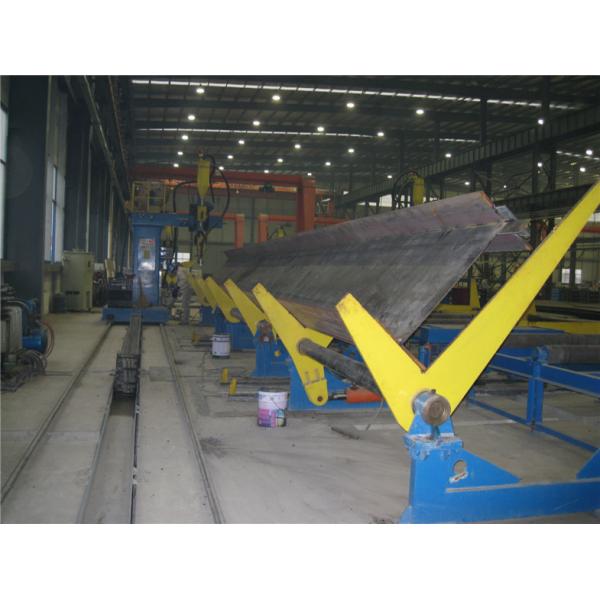

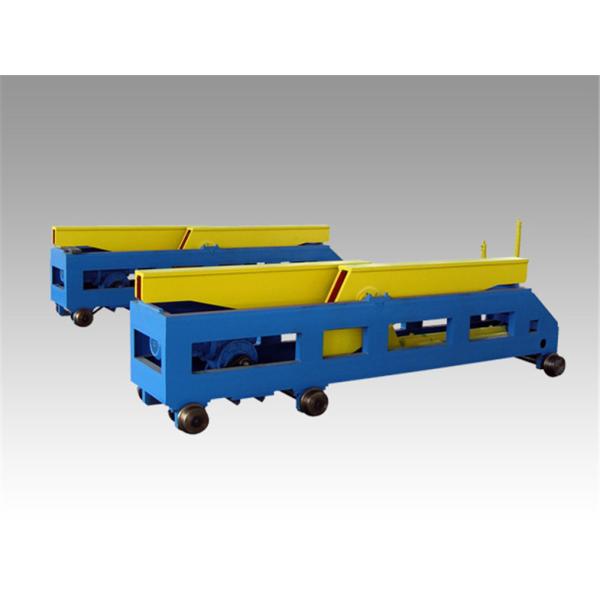

3. Reference photo

180 Degree 5m/Min Hydraulic Tilt Table , H Beam Container Tilter

180 Degree 5m/Min Hydraulic Tilt Table , H Beam Container Tilter

4. Comparative advantage

  • ISO9000&CE certified;
  • International warranty;
  • Punctual delivery;
  • Professional and experienced engineer team to ensure the advanced design about structure and electric;
  • Experienced and skilled workers to care for each work flow from material cutting, welding, grinding to final assembly and testing to ensure high machine quality;
  • Professional and experienced after sale service team to guarantee quick and satisfied installation, commissioning or service;
  • Optimum materials and outsourcings to ensure the best performance;
  • Commissioning and testing before delivery;
  • Factory inspection is encouraged;
