Electron Box Beam Welding Machine Hydraulic 1.5kW 5m/Min CE
Electron Box Beam Welding Machine Hydraulic 1.5kW 5m/Min CE
Electron Box Beam Welding Machine Hydraulic 1.5kW 5m/Min CE
Electron Box Beam Welding Machine Hydraulic 1.5kW 5m/Min CE
Specifications
Place of Origin :
Guoheng
Brand Name :
weldsuccess
Certification :
CE, ISO9000
Model Number :
FZ series
OEM :
Acceptable
MOQ :
1set
Price :
Negotiable
Packaging Details :
Mainframe naked in container and electric control part packed in plywood case then in container
Delivery Time :
30days
Payment Terms :
TT/LC
Supply Ability :
10sets/month
Price terms :
FOB (Shanghai) or CIF (named port)
Description

Stable Box Beam Welding Production Line , Electron Beam Weld

Quick Detail

  • This overturning machine is mainly used for overturning the box beam 90 or 180 degrees so as to feed to next stage for welding;
  • It’s hydraulic type overturning. Three oil cylinders drive 3 pieces of L-shaped rack turn 90 or 180 degree synchronously;
  • Beam welding structure;

1. Introduction


The equipment mainly used for overturn 90° or 180° of work piece during the process of box-beam production. It is the special equipment for overturning and movable, which is widely used for welding overturning, straightening overturning and manual welding.
It also can be used in other applications. We also welcome special requirements.

2. Main Parameters


Model

FZ180

Applicable work piece weight (t)

≤20t

Travel motor power (kW)

1.5

Travel speed (m/min)

5

Overturning oil cylinder diameter (mm)

φ150

Max pressure of hydraulic system (MPa)

16

Rail center distance (mm)

700 or upon actual conditions

Above are our standard models and parameters, and it can be designed and manufactured on request.
* We reserve the right to alter specifications without prior notice.

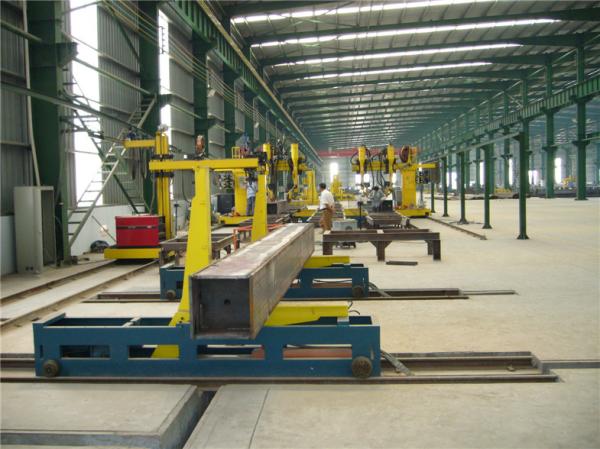

3. Reference photo

Electron Box Beam Welding Machine Hydraulic 1.5kW 5m/Min CE

4. Comparative advantage

  • ISO9000&CE certified;
  • International warranty;
  • Punctual delivery;
  • Professional and experienced engineer team to ensure the advanced design about structure and electric;
  • Experienced and skilled workers to care for each work flow from material cutting, welding, grinding to final assembly and testing to ensure high machine quality;
  • Professional and experienced after sale service team to guarantee quick and satisfied installation, commissioning or service;
  • Optimum materials and outsourcings to ensure the best performance;
  • Commissioning and testing before delivery;
  • Factory inspection is encouraged;
