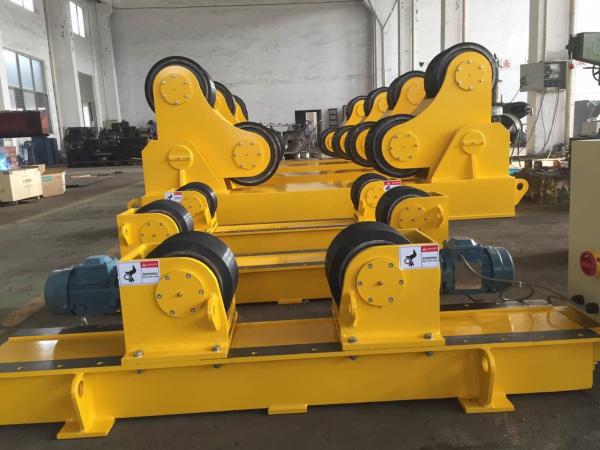

Adjustable Welding Rollers / Metallic Rollers France Schneider Inverter

1. Quick Detail

• Bolt adjustable pipe welding rotator with travel boogie;
• Broadly used in pipe or vessel fit-up processes;
• Schneider or Panasonic inverter to realize VFD speed control and synchronous rotation of rollers;

2. Main Parameters

3. Main features

The standard models of our pipe welding rotator or roller beds have the following features:

• Steplessly controllable rotary drives by means of A.C. or D.C. motor (on request) drive via self-locking
• worm gear reducers;
• Schneider or Panasonic inverter to realize VFD speed control and synchronous rotation of rollers;
• Heat treatment to main welding parts after welding; sand blasting treatment to main welding parts before
• painting;
• Fine machining to upper surface of base;
• Roller distance is bolt adjustable and roller surrounding angle among 45°～110°;
• All motion parts have lubrication system;
• Main electric elements are ABB/Siemens brands;
• Hand pendant with Forward-Stop-Reverse and speed potentiometer are standard;
• Lifting lug on the base of roller bed;
• Standard color:

Optional features:

• Roller material options: Metallic or Rubber roller;
• Self-centering/self-alignment rack;
• Foot switch;
• Servo drive;
• Anti-explosion motor&control panel;

4. Supply range

• Driving turning roll 1set
• Idle turning roll 1set
• Electric control system [including 1piece of electric control cabinet, 1piece of remote control box with cable 6m] 1set
• Technical documents (with manual book, conformity certificate, packing list, etc) 1set
