40T Lead Screw Adjusting Pipe Welding Rotator 100-1000mm/Min CE
40T Lead Screw Adjusting Pipe Welding Rotator 100-1000mm/Min CE
40T Lead Screw Adjusting Pipe Welding Rotator 100-1000mm/Min CE
40T Lead Screw Adjusting Pipe Welding Rotator 100-1000mm/Min CE
40T Lead Screw Adjusting Pipe Welding Rotator 100-1000mm/Min CE
40T Lead Screw Adjusting Pipe Welding Rotator 100-1000mm/Min CE
40T Lead Screw Adjusting Pipe Welding Rotator 100-1000mm/Min CE
40T Lead Screw Adjusting Pipe Welding Rotator 100-1000mm/Min CE
40T Lead Screw Adjusting Pipe Welding Rotator 100-1000mm/Min CE
40T Lead Screw Adjusting Pipe Welding Rotator 100-1000mm/Min CE
Specifications
Brand Name :
weldsuccess
Model Number :
CHGK-20
Certification :
CE
Place of Origin :
CHINA
MOQ :
1set
Price :
Negotiable
Supply Ability :
50sets/months
Delivery Time :
within 15days
Packaging Details :
Seaworthy Packages
Name :
Lead Screw Adjustable Welding Turning Rolls
Load Capacity :
40T
Suitable Pipe Diameter :
400--4200mm
Motor Power :
2*1.1KW
Rotation Speed :
100--1000mm/min
Roller Material :
PU
Way of Speed Control :
Variable Frequency Drive--France Schneider Inverter
Applicable Industries :
pressure vessel, boiler, piping
Description

40T Lead Screw Adjusting Pipe Welding Rotator with Siemens Motor and Schneider Inverter

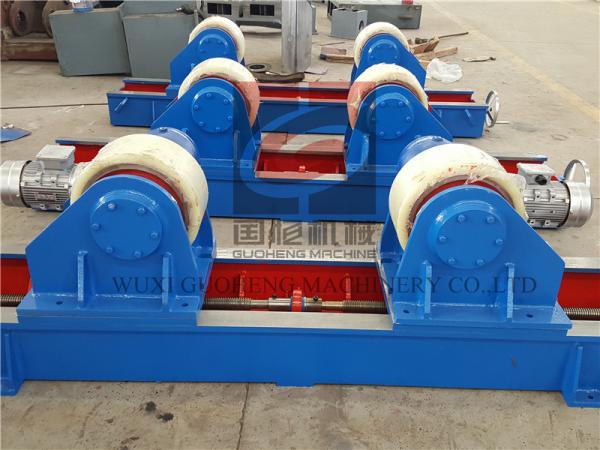

Welding Turning Rolls​ Introduction:

This series is lead-screw adjustable type. Our welding roller beds designed for maximum workpiece loads from

2T to 80T are used for the rotation and positioning of heavy, rotationally symmetrical workpieces like tanks, pipes

or boilers for further machining or welding. We also provide tailor-made welding rotator according to your special

requirements.

Specifications:

Model CHGK20 CHGK40 CHGK60 CHGK80
Max loading T 20 40 60 80
Suit diameter mm Min 400 600 700 700
Max 4200 4500 5000 5500
Rubber Roller mm Dia 350 400 450 500
Width 120 120 120 120
Metallic roller mm Dia 340 390 440 494
Width 45 60 70 80
Linear speed m/h 6-60
Speed Control vfd
Motor power kW 2*1.1 2*1.5 2*1.5 2*2.2
Roller distance mm Min 600 800
Max 1800 2000
Above are our standard models and parameters, and it can be designed and manufactured on request.

40t tube turning rolls features

The standard models of our roller beds have the following features:

  • Steplessly controllable rotary drives by means of A.C. or D.C. motor (on request) drive via self-locking worm gear reducers;
  • Schneider or Panasonic inverter to realize VFD speed control and synchronous rotation of rollers;
  • Heat treatment to main welding parts after welding; sand blasting treatment to main welding parts before painting;
  • Upper surface of base is treated with fine machining;
  • Roller distance is lead-screw adjustable and roller surrounding angle among 45°～110°;
  • All motion parts have lubrication system;
  • Main electric elements are ABB/Siemens brands;
  • Hand pendant with Forward-Stop-Reverse and speed potentiometer are standard;
  • Lifting lug on the base of roller bed;
  • Standard color:

Optional features:

  • Roller material options: Metallic or PU roller;
  • Undercarriage/travel boogie;
  • Interface for integral control with welding column&boom;
  • Foot switch;
  • Anti-explosion motor&control panel;
