Marine Building 20T Welding Turning Roller , 1000mm-4000mm Automatic Welding Machine
Marine Building 20T Welding Turning Roller , 1000mm-4000mm Automatic Welding Machine
Marine Building 20T Welding Turning Roller , 1000mm-4000mm Automatic Welding Machine
Marine Building 20T Welding Turning Roller , 1000mm-4000mm Automatic Welding Machine
Specifications
Place of Origin :
China
Brand Name :
weldsuccess
Certification :
CE,ISO9000
Model Number :
HGK*T series
MOQ :
1set
Price :
Negotiable
Packaging Details :
Mainframe naked in container and electric control part packed in plywood case then in container
Delivery Time :
25-35 days
Payment Terms :
TT/LC
Supply Ability :
100sets/month.
Price Terms :
FOB (Shanghai) or CIF (named port)
Name :
Automatic Welding Rotator
Loading capacity :
20T
Suit diameter mm :
1000mm-4000mm
Linear speed mm/min :
100-1000mm/min
Motor power :
2*1.1KW
Usage :
engineering machinery, marine building
Description

Marine Building 20T Pipe Welding Rotator Suit Diameter 1000mm-4000mm

Description​

The 20T Welding Rotator is auxiliary welding equipment. It uses the friction between the welding workpiece and the

roller to drive the cylindrical (or conical) welding workpiece to rotate. The welding rotator is often used in combination

with the welding manipulator. They can weld the inner and outer longitudinal seams and inner and outer circumferential

seams of cylindrical workpieces

Main Parameters

Model

HGK20T

Max loading T

20

Suit diameter mm

Min

1000

Max

4000

PU Roller mm

Dia

350

Width

200

Linear speed mm/min

100—1000

Tilt angle °

20°

Speed Control

VFD

Motor power kW

2*1.1

Above are our standard models and parameters, and it can be designed and manufactured on request.

*We reserve the right to alter specifications without prior notice.

Applications

It used in many industries such as pressure vessel, boiler, freezing equipment, power station construction,

metallurgical, engineering machinery, marine building, and petro-chemical industries etc.

Optional features:

  • Roller material options: Metallic or Rubber roller;
  • Interface for integral control with welding column&boom;
  • Foot switch;

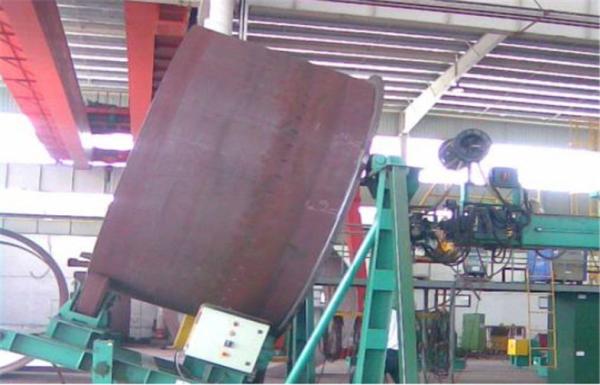

Pipe Welding Rotator show :

Marine Building 20T Welding Turning Roller , 1000mm-4000mm Automatic Welding Machine

Comparative advantage

  • ISO9000&CE certified;
  • Professional and experienced engineer team to ensure the advanced design about structure and electric;
  • Experienced and skilled workers to care for each work flow from material cutting, welding, grinding to final
  • assembly and testing to ensure high machine quality;
  • Professional and experienced after sale service team to guarantee quick and satisfied installation,
  • commissioning or service;
  • Optimum materials and outsourcings to ensure the best performance;
  • Commissioning and testing before delivery;
  • Factory inspection is encouraged;
