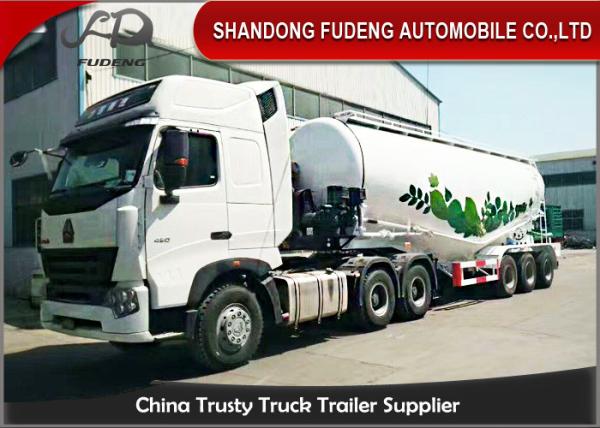

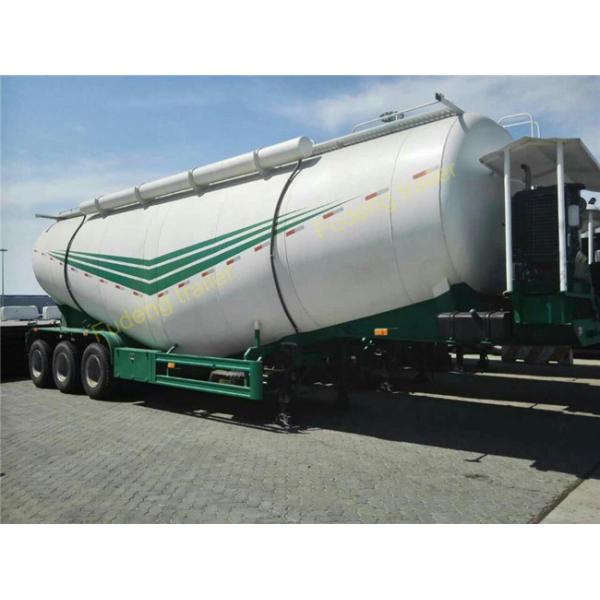

13 Ton 3 Axle Bulk Cement Tanker Trailer Three Axle Semi Trailer
13 Ton 3 Axle Bulk Cement Tanker Trailer Three Axle Semi Trailer
13 Ton 3 Axle Bulk Cement Tanker Trailer Three Axle Semi Trailer
13 Ton 3 Axle Bulk Cement Tanker Trailer Three Axle Semi Trailer
Specifications
Brand Name :
Fudeng
Model Number :
SDFD03
Certification :
CE, ISO9001, CCC
Place of Origin :
Shandong, China
MOQ :
1 set
Price :
negotiation
Payment Terms :
T/T, L/C or negotiate
Supply Ability :
600 sets per month
Delivery Time :
25-40 days after 30% deposit
Packaging Details :
Paint and wax spraying
Material :
Carbon steel
Color :
Fudeng logo or as customer's request
Volume :
30cbm to 80cbm customized
Suspension :
Mechanical or air suspension
ABS :
KEMI brand optional
Usage :
Transport cement, powder, silos
Landing gear :
Double speed
King pin :
3.5 inch or 2.0 inch
Description

13 Ton 3 Axle Bulk Cement Tanker Trailer Three Axle Semi Trailer

Widely praised as the industry’s most cement dry bulk trailers,Fudeng Trailer offers vessel integrity, low tare weights, high efficiency, long wear, easy cleanout and Fudeng Trailer craftsmanship throughout, to keep your operation running at maximum efficiency. Fudeng Trailer dry-bulk trailers have all the qualities desired in an efficient solution, It’s Fudeng Trailer craftsmanship, combined with the exceptional durability, thoughtful engineering and high payloads customers have come to expect from every premium Fudeng Trailer product—peace of mind that frees you up to focus on the most important project of all—building your business.

Bulk Cement/Powder Transport Semi Trailer
Rated Load 40000 kg- 80000 kg
Tare Weight 10000/9100 kg
Wheel Base 5600+1310+1310 (mm)
Tyre Specifications 11.00R20 12PR
No. Of the Tyres 12
Axle 13Tonnage
No. Of the Axles 3
Axle-load 13000 kg
Pieces of leaf-spring 10
Suspension Leaf spring suspension
Departure Angle 32
Front/Rear Overhang 950 mm
Main Beam Material Q345B manganese plates, automatic submerged arc welded
Brake System dual-pipes braking system with automatic air chambers
Brake Air Chamber 6pcs
Body thickness 5mm
Layer No. 2
Manhole 3
Diesel Engine 4102
Air Compressor 12 cbm
Landing Gear Dual line speed 28T
Color and Logo As the buyer’s request
Electrical System 24V, 7core socket, lights according to European standards.
Tool Box 1 box of standard tools
Spare tire carrier 1 set
Color and Logo Depends on the buyer’s requirement.
The traction pin 3.5’ or 2’
Pin Height According to the height of the tractor saddle.

Our features:

Discharging Line

Each feed funnel, corrosion decreasing, fast, easy to intervene in, not having blockage risk, flanged, bolt connected, direct discharging line with backside output by driving direction via DN 200 bottom output piping, and cam lock connected lid at output end. Welded joints strengthened with foreign reinforcement against corrosion.

Air Line Installation

Ergonomic, controlled and providing quick response opportunity, easy to reach, defined and systematic, providing pass of pressurized air coming from compressor to inside body, controlled, inside tank air inlet valve
