Three Axle Flatbed Container Trailer 40 Ft Flatbed Trailer For Tractor
Three Axle Flatbed Container Trailer 40 Ft Flatbed Trailer For Tractor
Three Axle Flatbed Container Trailer 40 Ft Flatbed Trailer For Tractor
Three Axle Flatbed Container Trailer 40 Ft Flatbed Trailer For Tractor
Specifications
Brand Name :
Fudeng
Model Number :
SDFD1704 Flatbed trailer
Certification :
CE, ISO, CCC, SGS, ADR
Place of Origin :
Shandong, China
MOQ :
1 set
Price :
negotiation
Payment Terms :
L/C, T/T or negotiate
Supply Ability :
600 sets per month
Delivery Time :
25-40 days after 30% deposit
Packaging Details :
Paint and wax spraying
Material :
Carbon Steel
Usage :
Transport 20ft and 40ft container, or bulk cargo
Color :
White, yellow, red, green, blue customized
Pattern :
Fudeng logo or as customer's request
Suspension :
Mechanical or air suspension
Capacity :
30-50 ton available
Function :
Bulk cargo or container transport
King Pin :
2" (50mm) or 3.5" (90mm)
Description

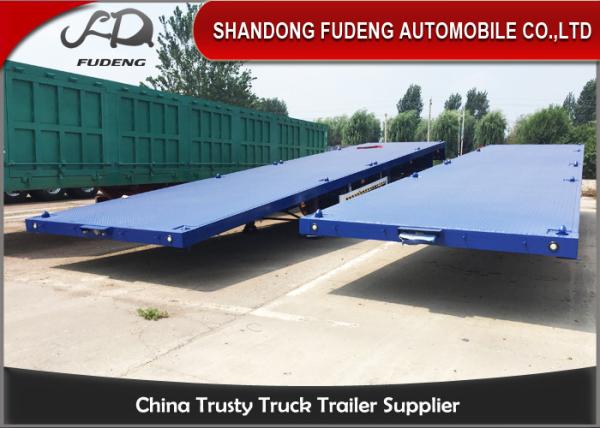

Three axles Container carrier flatbed semi trailer 40 foot for tractor

Fudeng can offer different type or flatbed trailer for dry loads and containers. These kind of Flatbed Trailers are used for carrying container, steel bar, other items which is loaded with pallet and normal cargo laoders. Fudeng can offer Flatbed Trailers with different specification according to country regulations and customer demand from 20 tons to 70 tons.

Flatbed container trailers are versatile open trailers used to transport a wide range of products and materials. Also known as flat, float, flat deck, and high boy trailers, some of the common products they are used to haul are:

  • 40ft container, 20ft container
  • Flat steel
  • Coiled steel
  • Channel steel
  • Rebar
  • Lumber
  • Pipe
  • Pre-cast concrete
  • Building materials
  • Other products that can be strapped down to a flat deck.

Specification
Name flatbed semi trailer 3 axle 40 ton
Model SDFD1704
Overall dimension 12500 *2500 * 1550mm
Loading capacity 40T
Axle brand and number 13T Fuwa Brand, 3 units
Wheel base(mm) 6880+1310+1310
Kingpin 50# or 90#
Steel Spring 90/16/10 leaf spring suspension
The material of Main beam

The height of the beam is 500 mm,

upper plate is14mm,down plate is 16mm,

middle plate is 8mm.
Tyre and quantity 12R22.5 12pieces
Landing gear 28T, double speed operation
Platform plate 3mm Checkered steel plate
Brake system Dual Line braking system , with ABS.
Brake air chamber Four double and two single chamber

Three Axle Flatbed Container Trailer 40 Ft Flatbed Trailer For Tractor

Three Axle Flatbed Container Trailer 40 Ft Flatbed Trailer For Tractor

Our Features:

  • Frame: The frame is manufacture by a structure, which are made of high strength steel. The gooseneck design reasonably to get a balanced consideration of the intensity, rigidity and toughness, maintaining a low center of gravity, heavy loading mass, not easy to be distorted.
  • Axles: The axle can be selected in different famous brand of BPW and SAF, KIC, FUWA ect. domestic and overseas. Also, the ABS system can be optional with Haldex and WABCO etc., can be greatly increase the stability and safety.
  • Suspension system: Mechanical suspension and air suspension series optional.
