10 Wheelers LPG LNG Fuel Transfer Trailer 3*13 Ton FUWA Axles Carbon Steel Tank
10 Wheelers LPG LNG Fuel Transfer Trailer 3*13 Ton FUWA Axles Carbon Steel Tank
10 Wheelers LPG LNG Fuel Transfer Trailer 3*13 Ton FUWA Axles Carbon Steel Tank
10 Wheelers LPG LNG Fuel Transfer Trailer 3*13 Ton FUWA Axles Carbon Steel Tank
10 Wheelers LPG LNG Fuel Transfer Trailer 3*13 Ton FUWA Axles Carbon Steel Tank
10 Wheelers LPG LNG Fuel Transfer Trailer 3*13 Ton FUWA Axles Carbon Steel Tank
Specifications
Brand Name :
FUDENG Brand
Model Number :
LPG/LNG/CNG Tanker trailers
Certification :
Asmi/CE/ISO/ADR/DOT
Place of Origin :
Shandong China(Mainland)
MOQ :
One Unit
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500Units per Month
Delivery Time :
20-30days after deposit
Packaging Details :
1.By bulk 2. By container 3. As your requirements
Axles :
Fuwa/BPW Optional
Suspension :
Mechanical suspension Or Air suspension
Product name :
LPG Tanker semi trailers
Material :
Carbon Steel
Certificate :
CCC ISO9001 SGS Asmi
Size :
10870x2507x3770mm Customized
Max payload :
60Tons
Color :
Customized
Price :
negotiation
Description

3 Axles LPG Tanker trailers10 wheelers Fuel oil tank LPG LNG Gasline Tanker Semi Trailer

All LPG Tanker Trailer Adopts Famous Brand

Famous Brand Axle Support:Fuwa/BPW/Jinsheng brand

Trailer Durable and High Truck Attendance Rate

Chassis:

China Best Q345B-T700 support Stronger Trailer Skeleton

Tire:

Good Quality Tire support Trailer Running Safety&Smoothly

King Pin:

JOST Detachable Type support Durable and Fast&Easy Replace

Emergency Valve:

Fast Response,Low Failure support Safetly&Protect Tire Longer Time Use

LPG Tanker trailers Specification:

Standard in China
1 GB150-1998 Steel pressure vessels
2 GB/T19905-2005 Liquefied gas truck
3 Pressure vessel safety technology and inspection procedures
4 Liquefied gas tanker safety monitoring procedures
Tanker Essential Information
1 Dimensions(length*width*height) 1300×2500×4000(MM)
2 Estimated Tare Weight 14926KG
3 Payload 25074KG
4 Total Weight 40000KG
Shell Of Tanker
1 Products LPG, Butane , Propane
2 Fluidproperty flammable
4 Design temperature to 50ºC
5 Design pressure 1.61MPa
6 Corrosion allowance 1.0mm
7 Major materials of bearing pressure Tanker body : Q345R , 12mm
End plate : Q345R , 14mm
Main Beam : Q345B
8 Filling weight per volume
9 Maximum filling weight
10 Compartments One
11 Baffle inside the tank 14-off Aluminium bolted plate , thickness is 5mm
12 Shape Cylindrical ; Ellipse head
Detection
1 Heat treatment Overall heat treatment in a furnace , 500ºC to 560ºC
2 Flaw detection 100% Flaw detection
3 Hydrostatic test 2.66MPa
4 Magnaflux Aim at welding place flaw detection can not cover
Manhole (As customer's requirement )
1 Quantity 1 ; On top
Safety Valve (As customer's requirement )
1 Quantity Two
2 Location On the top of tanker ;
3 Type Only weld suitable flange
4 Size As customer's requirement
Liquidometer (As customer's requirement )
1 Quantity and Model 1
2 Location On left side of tanker
3 Type Only weld suitable flange
4 Size As customer's requirement
Valve and pipe Detail (As customer's requirement )
Running System
1 Axles 3 13 TON FUWA Axles
2 Suspension system 1 FUWA Air suspension
3 Wheel rim 12 8.25*22.0
4 Tyre 12 Brand : Triangle,425/65R22.5
5 Kingpin 1 JOST2",bolt on ,in rubbing plate
6 Landing legs 2 JOST D200 single linkage,Gear type
Pneumatic Brake System
1 Spring brake chamber 6 FUWA
2 Air connector 2 FUWA
3 Relay Valve 1 BRAND:WABCO
4 ABS 1 KEMI ABS
Electronical System
1 7-Pin Socket 1 24V 7-pin socket
2 LED Lamp 1 All kinds of lamp
3 Cable 1 Stander cable
Accessories
1 Small Tool box 1
2 Wheel carrier 1
3 Fire extinguisher 2 With red box
4 Cabinet 1
5 Plastic fender 6
6 Static conductive belt 1
7 Impeller blasting 1 Completely
8 Paint 1 As customer requirements

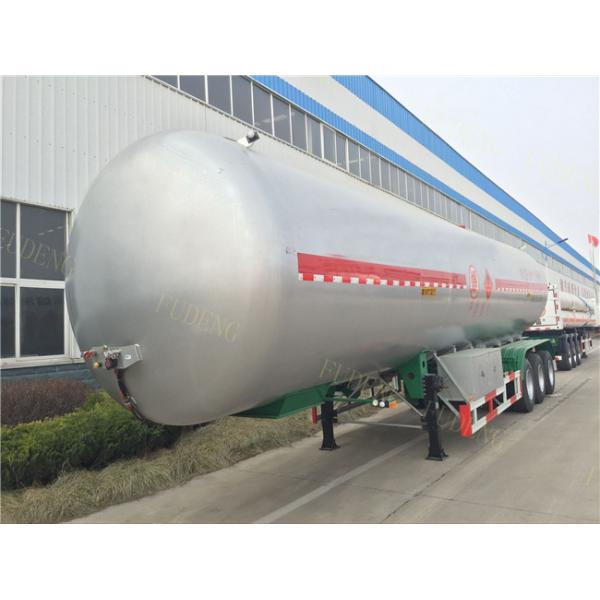

3 Axles LPG Tanker trailers model.

10 Wheelers LPG LNG Fuel Transfer Trailer 3*13 Ton FUWA Axles Carbon Steel Tank

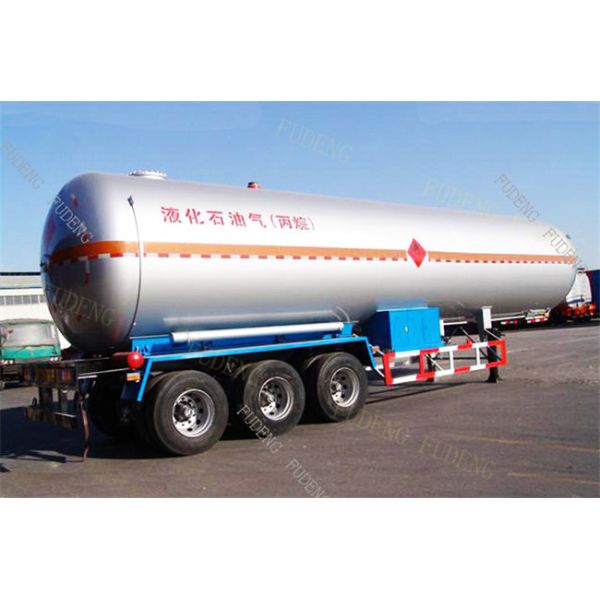

Standard 25Tons LPG Tanker trailers.

10 Wheelers LPG LNG Fuel Transfer Trailer 3*13 Ton FUWA Axles Carbon Steel Tank

Welcome to our company!

1. We can pick up you in the airport port
2 book the hotel for you
3. show around the workshop and production line
4. we can supply the truck parts
5. we can supply the stock trucks if you need the trucks urgently.
