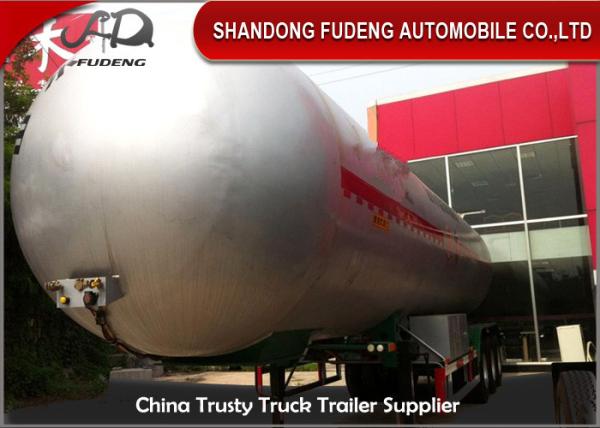

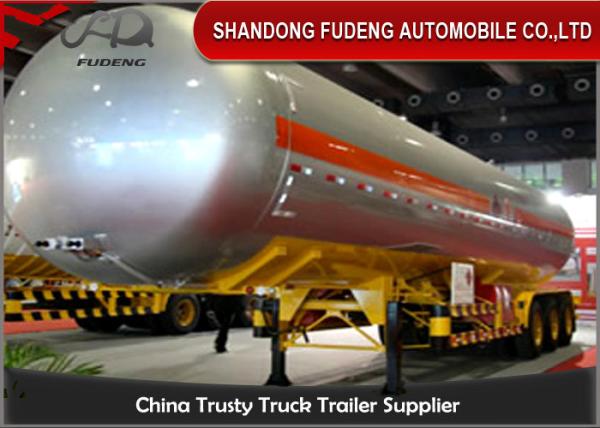

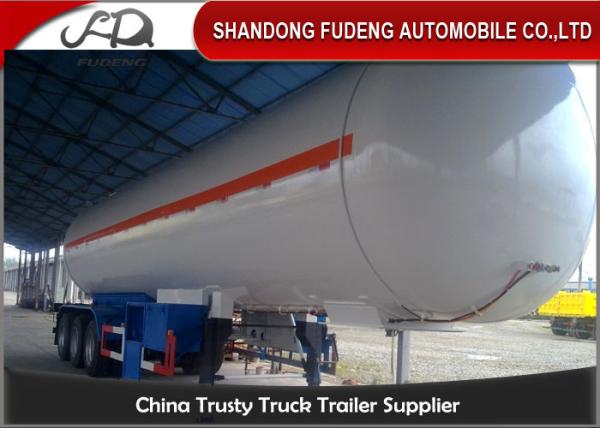

Auto Cylindrical LPG Tank Trailer With Ellipse Head 50cbm Three Axles
Auto Cylindrical LPG Tank Trailer With Ellipse Head 50cbm Three Axles
Auto Cylindrical LPG Tank Trailer With Ellipse Head 50cbm Three Axles
Auto Cylindrical LPG Tank Trailer With Ellipse Head 50cbm Three Axles
Auto Cylindrical LPG Tank Trailer With Ellipse Head 50cbm Three Axles
Auto Cylindrical LPG Tank Trailer With Ellipse Head 50cbm Three Axles
Specifications
Brand Name :
FUDENG Brand
Model Number :
SDFDZH040733
Certification :
BV, ISO,CCC
Place of Origin :
Shandong China(Mainland)
MOQ :
1 set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
200 sets per Month
Delivery Time :
20 - 30 work days after deposit
Packaging Details :
By bulk or As your requirements
Tire :
11.00r20 12r22.5 or other
Logo :
Customized
Axle :
FUWA
Landing Gear :
28ton
King pin :
Fabricated type, Jost 2" or 3.5"
Landing gear :
JOST brand
Brake System :
Dual Line Braking System
Price :
negotiation
Description

50m3 3 axles auto lpg tank semi trailer / 50cbm tri-axle lpg tanker truck trailer

) LPG tank Designing pressure:0.7 ~ 2.16Mpa Designing temperature:500C

2 ) The various types LPG tank is researched and manufactured by stress analysis design and has obvious advantage of large capacity.light weight and high efficiency.

3 ) We inspect the quality of lpg tank product strictly,ensure that A and B type of welding seam pass the examination of level two radiographic test,C and D type of welding seam pass the examination of level one radiographic test.

4 ) There are domestic or imported safety accessories with high quality ,its matching is complet for lpg tank.

5 ) The anticorrosion coating of LPG tank adopt the following process, sandblast, spray painting ,purging and so on.

Specification

LPG TANK SEMI TRAILER
Dimensions(length*width*height) 13000*2500*3995(mm)
Estimated Tare Weight 15514KG
Payload 24486KG
Total Weight 40000KG
Effective Volume 57 CBM
Products LPG, Butane , Propane
Fluid property flammable
Design temperature -40°C to 50°C
Design pressure 1.61MPa
Corrosion allowance 1.0mm
Major materials of bearing pressure Tanker body : Q345R , 12.5mm,End plate : Q345R , front:10mm,Rear:12.5mm ,Main Beam : T700
Filling weight per volume 420Kg/m3
Maximum filling weight 24486Kg
Compartments One
Baffle inside the tank 14-off Aluminum bolted plate , thickness is 5mm
Shape Cylindrical ; Ellipse head
Heat treatment Overall heat treatment in a furnace , 500°C to 560°C
Flaw detection 100% Flaw detection
Hydrostatic test 2.1MPa
Magnaflux Aim at welding place flaw detection can not cover
Manhole 1 ; On top
Safty Valve 1
Axles 3 13 TON
Suspension system 1 Leaf spring
Tyre 7 ISO Certificated 12 R22.5 vacuum with 9.00
Kingpin 1 90# and 50# Bolt-atble
Landing legs 1 28Ton
7-Pin Socket 1 24V 7-pin socket
LED Lamp 1 All kinds of lamp
Small Tool box/Wheel carrier 1/1
Fire extinguisher 2With red box

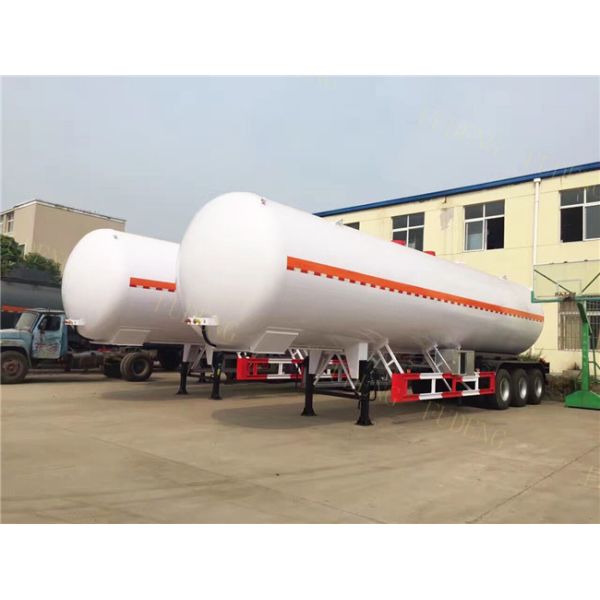

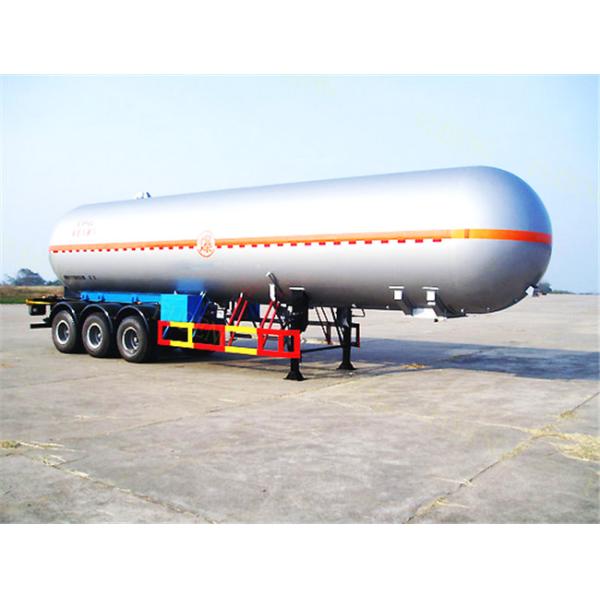

Auto Cylindrical LPG Tank Trailer With Ellipse Head 50cbm Three Axles

Auto Cylindrical LPG Tank Trailer With Ellipse Head 50cbm Three Axles

Packaging & Shipping

1. By Bulk Ship or Roro Ship

2. By Container

3. By SKD Type.

Welcome to visit our company!
