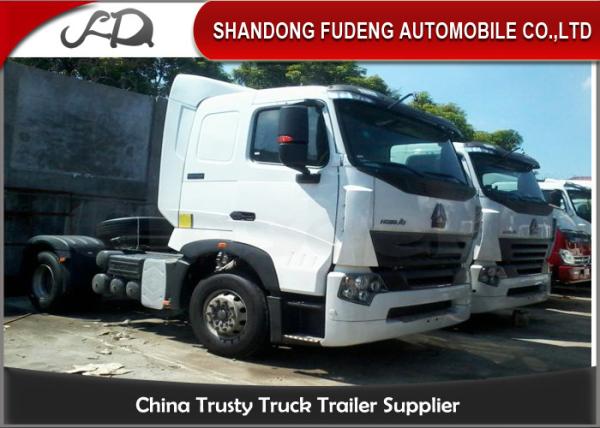

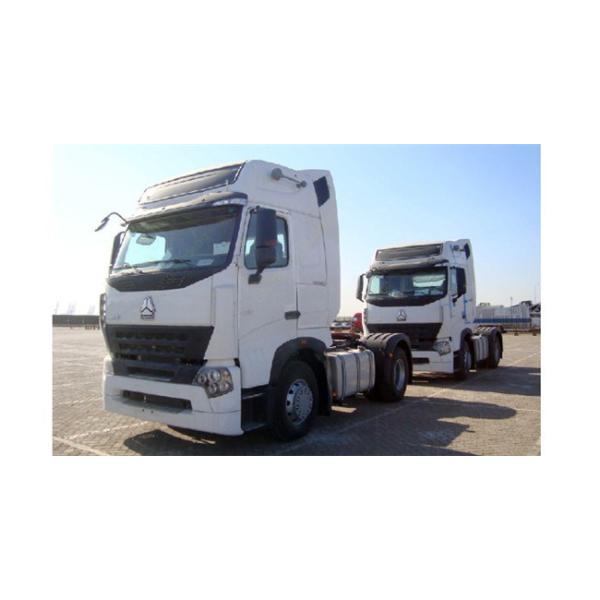

336 HP Mini Tractor Head Trucks With Tubeless Tire 4 × 2 Drive Wheel
336 HP Mini Tractor Head Trucks With Tubeless Tire 4 × 2 Drive Wheel
336 HP Mini Tractor Head Trucks With Tubeless Tire 4 × 2 Drive Wheel
336 HP Mini Tractor Head Trucks With Tubeless Tire 4 × 2 Drive Wheel
Specifications
Brand Name :
SINO HOWO
Model Number :
FDZH040623
Certification :
CE , ISO , CCC
Place of Origin :
Shandong, China
MOQ :
1 unit
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1200 units per month
Delivery Time :
25-35 days after 30% deposit
Packaging Details :
Bulk cargo or Ro - ro
Drive Wheel :
4×2
Color :
Optional
Tire Design :
Tubeless
Transmission Type :
Manual
Tyre and Quantity :
295/80r22.5 11 Pieces(1 Spare)
Trademark :
Sinotruk
Tire Certification :
ECE , GCC , ISO , DOT
Transport Package :
Pulish with Wax Before Shipment
Price :
negotiation
Description

Sinotrucks 336 HP mini Tractor Head Trucks / Prime Mover / Tractor Truck with 4 × 2 drive wheel

1. Technical parameters of the Veldlion Tractor Trucks.


(1) For construction and industrial trucks
(2) Quick Details:
6x4 Heavyduty Tractor Truck for trailers:
Engine Power: 336hp/ 371Hp
Rated Traction/Towing Weight: 40000kg
Gross Weight: 25000kg

We also supply you the other type of HOWO, 4*2, 4*4, 6*2, 6*4, 6*6, 8*4 different engine power(270HP, 290HP, 310HP, 330HP, 350HP, 380HP, and 420HP), EURO II, and EURO III dump truck. We could choose the right truck for you and confirm that is your good assistant in your work.

Specification

Cabin Driving type 4x2 LHD
Model: ZZ4187S3511W
HOWO 76 Standard cab, with two bunks, one bed, 70°hydraulically tillable to the front as attached photo for ref.
Vehicle Main Dimensions Overall dimensions (L x W x H)mm 6200x2500x3800
Wheel base (mm) 3500
Wheel track (front/rear) (mm) 2022/1830
Approach/Departure angle(°) 16/20
Weight in KGS Tare Weight 9210
Loading Capacity 17560
Front axles loading capacity 1x7000
Rear axles loading capacity 1x16000
Max. driving speed(km/h) 95
Engine Brand Sinotruk
Model WD615.47
Type 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
Horse Power(HP) 371HP
Emission standard Euro II
Gearbox HW19710, 10 forwards & 2 reverse
Clutch Reinforced diaphragm clutch, diameter 430mm
Steering Gear ZF 8098,power steering, hydraulic steering with power assistance
Fuel tank (L) 200
Tire 12R22.5 All steel radial tire , 6 pieces
Suspension Front: 9 semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers and stabilize
Rear: 14 leaf semi-elliptic leaf springs with bogie springs.
Brakes Service brake: dual circuit compressed air brake
Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels
Auxiliary brake: engine exhaust valve brake


Details

336 HP Mini Tractor Head Trucks With Tubeless Tire 4 × 2 Drive Wheel

336 HP Mini Tractor Head Trucks With Tubeless Tire 4 × 2 Drive Wheel

Service


1. Provide customer new products with good quality and competitive price.
2. Welcome customers to visit our company any time, and receipt them.
3.Supply spare parts, and often communicate with customer to help them solve problem.
4. Glad to do what we can do for our customer.
Our purpose is everything for customer.
