Three Axles Container Side Loader Trailer / 40 Feet Side Loader Truck
Three Axles Container Side Loader Trailer / 40 Feet Side Loader Truck
Three Axles Container Side Loader Trailer / 40 Feet Side Loader Truck
Three Axles Container Side Loader Trailer / 40 Feet Side Loader Truck
Three Axles Container Side Loader Trailer / 40 Feet Side Loader Truck
Three Axles Container Side Loader Trailer / 40 Feet Side Loader Truck
Three Axles Container Side Loader Trailer / 40 Feet Side Loader Truck
Three Axles Container Side Loader Trailer / 40 Feet Side Loader Truck
Specifications
Brand Name :
FUDENG Brand
Model Number :
Side loader trailer
Certification :
CE/SGS/ BV/ADR/dot
Place of Origin :
Shandong China(Mainland)
MOQ :
1 Unit side loader trailers
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500 Units per month
Delivery Time :
20-30 work days after deposit
Packaging Details :
Shipping by the Bulk cargo
Axles :
BPW/FUWA/Chinese brand
Function :
Loading 20ft 40ft Container
Load capacity :
30-80Tons
Power source :
Power Take Off Or Diesel Engine
Key word :
Side loader trailers
Brand :
FUDENG
Material :
Steel
Operation :
Remote Control And Manual Operation
Price :
negotiation
Description

FUDENG Sider loader semi trailers 3 axles 40ft container self loading trailers

20ft &40ft Container side loader truck is superstructure designed to be fitted onto a Sino Truck truck chassis. The 20ft&40ft Container side loader truck is the lightest and most easily maneuverable side loader in the world. with its compact structure and most easily maneuvrable side loader in ther world. Excellent for use in narrow places an d where 20ft containers are dominating.

Side loader trailer Details:

Container handling~ Lift Capacity up to 72,000 Kg

1 loaded 20 ft, / 2 30,000 Kg. each max

2.20 ft, 40 ft, 45 ft, (48 ft 53ft) loaded

3.We Stack Hi-Cube Containers 2 high ,

4.Containers can be weighed at your location

5.We transport LOADED / UNLOADED.

Specification:

Item Parameters
Max. lifting capacity kg
 37000kg
Max. working range 4000mm
Max. stabilizer outreach 3200mm
Curb mass 14500kg
Mass of sidelifter 7250kg
Maximum gross mass 40000kg
Outline dimension of semi-trailer(L×W×H) 14100×2500×4000mm
Outline dimension of sidelifter(L×W×H) 1020×2500×2490mm
Wheel base 8000+1350+1350mm
Track(front axle/rear axle) 1820/1820/1820mm
Front overhang / Rear overhang -/2370mm
Approach angle/Departure angle -/13°
Function Transport 2*20ft and 1*40ft container
Main beam The height of the beam is 500 mm, upper plate is14mm,down plate is 16mm,middle plate is 8mm.
Loading weight 40T
Axle Brand FUWA 13Ton Axle
Axle Number Three
Container twist locker 12 Screw type
King pin 50mm/90mm removeable

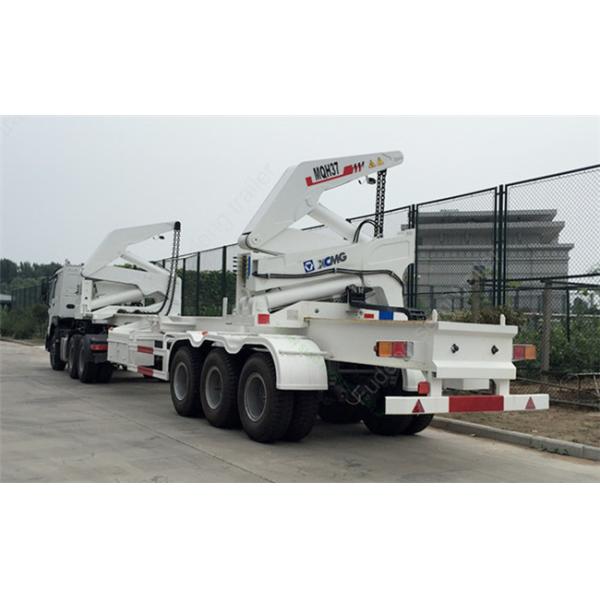

20&40ft Side loader trailers.

Three Axles Container Side Loader Trailer / 40 Feet Side Loader Truck

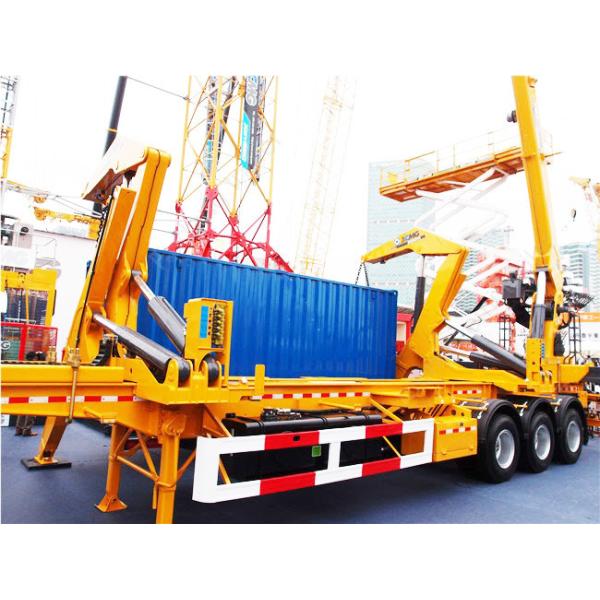

40ft Side loader trailers.

Three Axles Container Side Loader Trailer / 40 Feet Side Loader Truck

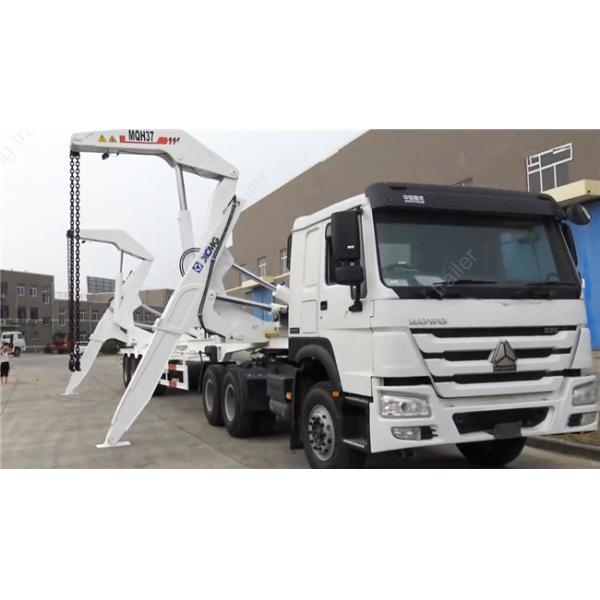

37Tons Side loader trailers.

Three Axles Container Side Loader Trailer / 40 Feet Side Loader Truck

Welcome to visit our factory!
