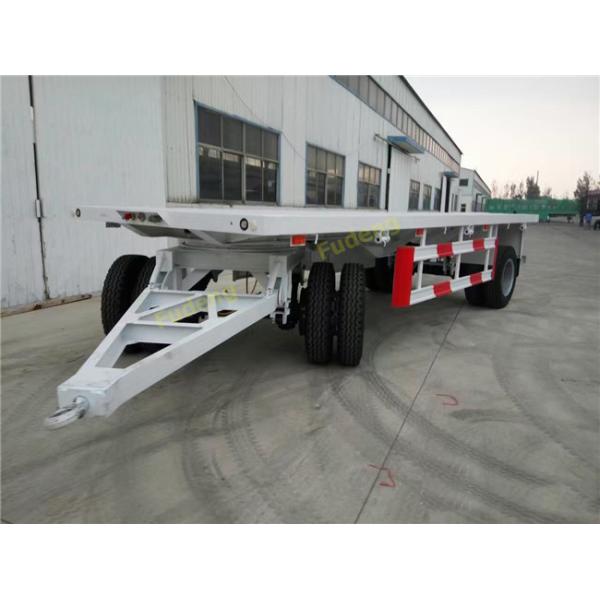

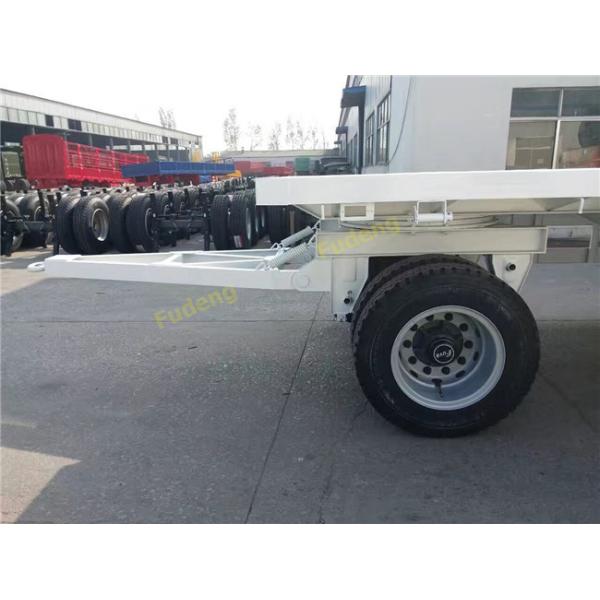

2 Axles Drawbar Trailer Custom Side Wall With Turntable Mechanical / Air Suspension
2 Axles Drawbar Trailer Custom Side Wall With Turntable Mechanical / Air Suspension
2 Axles Drawbar Trailer Custom Side Wall With Turntable Mechanical / Air Suspension
2 Axles Drawbar Trailer Custom Side Wall With Turntable Mechanical / Air Suspension
Specifications
Brand Name :
Fudeng
Model Number :
SDFD1716 Draw Bar Trailer
Certification :
CE, ISO, CCC, SGS, ADR
Place of Origin :
Shandong, China
MOQ :
1 set
Payment Terms :
L/C, T/T or negotiate
Supply Ability :
600 sets per month
Delivery Time :
25-40 days after 30% deposit
Packaging Details :
Paint and wax spraying
Price :
negotiation
Material :
Carbon Steel
Usage :
Transport bulk cargo
Color :
White, Yellow, Red, Green, Blue Customized
Pattern :
Fudeng Logo Or As Customer's Request
Suspension :
Mechanical Or Air Suspension
Capacity :
30-50 Ton Available
Axle :
Fuwa, BPW brand or Chinese brand
Conditions :
New
Tires :
12R22.5 Vacuum Tire / 11.00R20
Description

2 axles drawbar full trailer for farming with turntable side wall customized

As a truck trailer manufacturer, we can supply the full trailer including the full trailer with side wall, drawbar trailer , low bed / flatbed full trailer, dump full trailer and tanker full trailer.

farm trailer with side wall.

2 Axles Drawbar Trailer Custom Side Wall With Turntable Mechanical / Air Suspension

Draw Bar trailer functions:

This series full trailers are mainly used in the agricultural products, and bulk cargo or electrical appliance transportation.
The rated capacity varies widely from 30Tons to 100Tons, and the dimension different from 7000mm to 18000mm, we can manufacture it according to your needs.
The axles can be Fuwa / Bpw with different tonnages by your need with price differences.
The suspensions can be: Air suspension, mechanic (leaf spring suspension), bogie suspension, etc.
The side wall height and side or back door numbers and opening ways have several options for your better usage.

Dimensions(LxWxH) 8700×2500×3500mm
Body dimension 7200X2500*1350
Tare Weight 9000kg
Loading Capacity 30Ton
Axle FUWA Brand 13T* 3 axles
Suspension America type mechanical Suspension
Leaf spring Leaf spring 10pcs*90*13mm
Tire Double star brand 11.00R20 *12pcs
Wheel rim Better brand 8.0-20 *12pcs
Turntable Diameter is 1100mm 15T
Traction hook DN50
Traction bar Length is 1.5m
The material of Main beam

Height of beam: 400mm, Upper plate is 12mm, Middle plate is 8mm,Down plate is 14mm .

Opting for high tensile steel Q345,welded by automatic submerged-Arc processes.
Platform plate 3 mm
Braking system Chinese local brand RE6 relay valve ;T30/30 spring brake chamber;40L air tanks
Electrical Voltage 24V, Receptacle 7 ways (7 wire harness), Side marker lamp LED type
Painting Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint wax spray
Marking According to the requirement of the buyer
Side Guard According to the requirement of the buyer
Accessories One standard tool box,one spare tire carrier,one crank,one shaft headwrench,four side light,two rear light
Shipping Terms: By bulk cargo carrier, RORO or 40HQ container.

2 Axles Drawbar Trailer Custom Side Wall With Turntable Mechanical / Air Suspension
