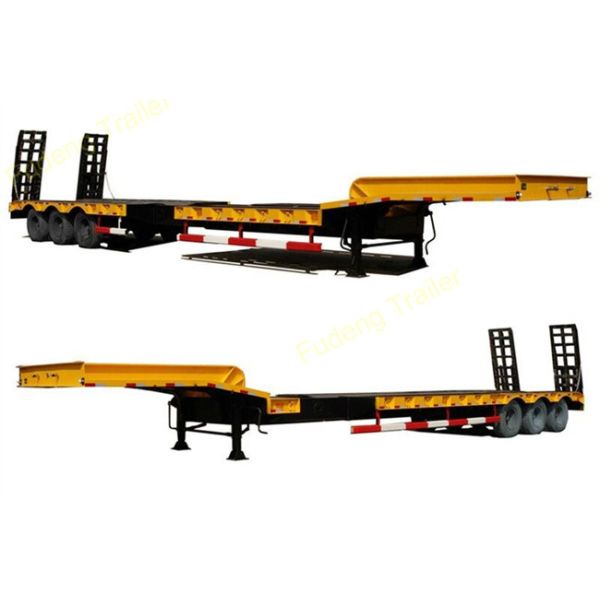

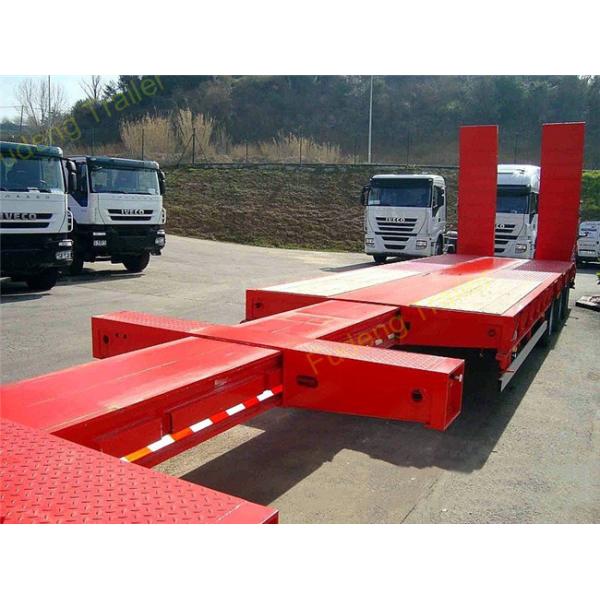

3 Axles Warranty Extendable Lowboy Trailer High Strength Steel Material
3 Axles Warranty Extendable Lowboy Trailer High Strength Steel Material
3 Axles Warranty Extendable Lowboy Trailer High Strength Steel Material
3 Axles Warranty Extendable Lowboy Trailer High Strength Steel Material
3 Axles Warranty Extendable Lowboy Trailer High Strength Steel Material
3 Axles Warranty Extendable Lowboy Trailer High Strength Steel Material
3 Axles Warranty Extendable Lowboy Trailer High Strength Steel Material
3 Axles Warranty Extendable Lowboy Trailer High Strength Steel Material
Specifications
Brand Name :
Fudeng
Model Number :
SDFDZH040801
Certification :
BV,SGS, CNCA, CIQ
Place of Origin :
Shandong, China
MOQ :
1 set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100 sets per month
Delivery Time :
25 - 40 work days after 30% deposit
Packaging Details :
Paint and wax spraying
Drive Type :
3 Axles
Advantage :
Customized Design
Color :
Customized
Material :
High Strength Steel Material
Axle brand :
Optional
Payload :
30 -120 ton available
Warranty :
2 years
King pin :
50# or 90#
Price :
negotiation
Description

3 axles low bed truck trailers / extendable low bed trailer with warranty

Description:

We have perennial cooperation suppliers of raw materials with really good quality and have certain

amount reserve, saving cost and production cycle, and make the product standardization. Constantly

updated product design, technology is guaranteed.

Applications:

Apply to transport longer larger parts, miscellaneous pieces of cargo, large components and equipment.

Competitive Advantage:

1. All colors are available according to your choice.

2. Fast production period, and quick arrangement of delivery.

3. Professional team for spare parts and aftersales services.

Specifications
Dimension 12.5m - 28m ×2.5m×1.5m (Outside)
Payload 40T-120T
Tare weight About 7.5T
Bottom Platform 3-6mm thick checkered plate or flat plate
Chassis
Frame Welding design or Special design I beam, connected by bolts and nuts, Q345B carbon steel material
Frame Beam Upper and lower plate is20mm,middle is10mm.height is 500 mm
Frame Floor The Thickness is 3-8 mm flat bed
Axle 3 axles or customized, BPW/FUWA/HUAJING brand
Landing Gear JOST (D200T)or CHINA BRAND 28T
King Pin JOST 2.00 or 3.5 inch bolt-in king pin
Suspension Mechanical suspension/Germany or America type/air suspension
Leaf Spring 90mm(W)*13mm(T)*10 Layer/90mm(W)*16mm(T)*10 Layer/ 100mm(W)*16mm(T)*10 Layer
Pneumatic Braking System WABCO RE 6 relay valve; Spring brake chamber (TKL brand); one piece of 45L air tanks.
Rim 8.5-20,9.0-20,8.25-22.5,9.0-22.5 optional
Tire 11.00R20,12.00R20,11R22.5,12R22.5,315/80R22.5 Tire optional
ABS Optional
Accessories One standard tool box
Voltage 24V
Packing and shipping
Painting Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Shipping Terms By Bulk Cargo/RORO
