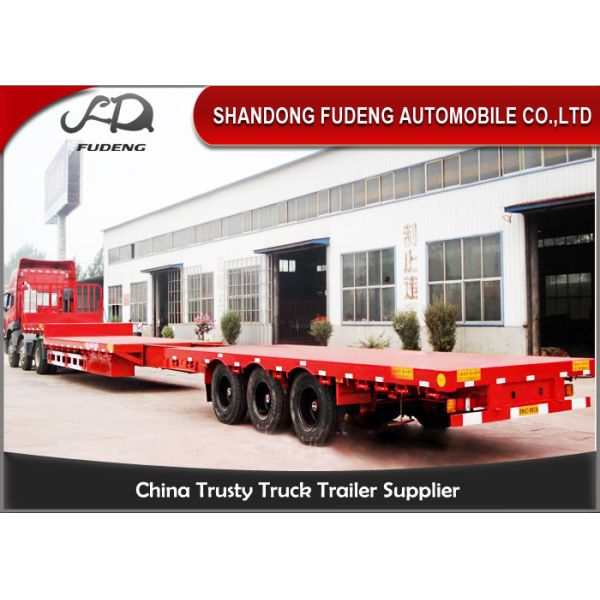

Over Length Flatbed Extendable Semi Trailer Double / Three Steering Axles
Over Length Flatbed Extendable Semi Trailer Double / Three Steering Axles
Over Length Flatbed Extendable Semi Trailer Double / Three Steering Axles
Over Length Flatbed Extendable Semi Trailer Double / Three Steering Axles
Over Length Flatbed Extendable Semi Trailer Double / Three Steering Axles
Over Length Flatbed Extendable Semi Trailer Double / Three Steering Axles
Over Length Flatbed Extendable Semi Trailer Double / Three Steering Axles
Over Length Flatbed Extendable Semi Trailer Double / Three Steering Axles
Specifications
Brand Name :
Fudeng
Model Number :
SDFDZH040802
Certification :
ECE, GCC, CE, ISO9001, DOT, CCC, SGS
Place of Origin :
Shandong, China
MOQ :
1 set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100 sets per month
Delivery Time :
25 - 35 work days after 30% deposit
Packaging Details :
In Nude
Condition :
New
Transport :
Wind Blade or Long Cargos
Axles :
2 / 3 Axle
Material :
Steel Material
Scale :
Heavy duty
owing Pin Diameter :
50mm or 90mm
Warranty :
2 years
Shape :
Flatbed
Price :
negotiation
Description

2 / 3 Axles Over Length Cargo Flat Bed Extendable Semi Trailer

Functions


1. This series road transporting over length cargo wind blade,wind power transporting ,extendable length trailer is very hot sale for transportng company.


2. The capacity is for 30tons - 500tons , we can manufacture it according to your needs.


3. The axles can be Fuwa / Bpw with different tonnages by your need with price differences.


4. The suspensions can be: Air suspension, mechanic (leaf spring suspension), bogie suspension, etc


5. The loading deck can be concave beams, tire appeared cover, totally flatbed, or extendable.


6. The loading ramps can be rear end designed, or front loading ladders, which can be mechanic spring ladders and hydraulic loading ramps by different needs

Product Information

Product
steering axles over length wind power trailer		 Over Length Flatbed Extendable Semi Trailer Double / Three Steering Axles

Brand Name
Fudeng Brand

Place of Origin
Shandong province, China

Color
Any color will be available

Product Specifications

Parameter

Outside Dimensions (L*W*H)
(20 - 60meters)*2500*1550

features
steering axles and overlength ,can more than 30meters

steering
Steering on every wheel

Rated Load
30-100 ton

Tare Weight
optional

Running Gear

Tires
specification
8.25-15, 7.50-15 or small vacuum tyre with no tube

No. of tires
optional

Spare tire carriers
optional

Axles
Brand
FUWA (BPW optional)

No. of axles:
2,3 or 4

Axle-load
12000kg

Wheel rim
24 units of 7.50-20 rim or 8.00

Suspension
rigid suspension or air suspension

Brakes
brand
TKL brand

Brake chamber
double air chamber

System
Dual line braking system /ABS

Under Frame

Main Beam
material
I beam ,Q345B, automatic submerged arc welded

specification
Height is 500mm,upper plate is 14mm,lower plate is 16mm,middle is 8mm

Cross Beam material
Q235B

Side beam
Channel steel

Plate form
Steel Sheet 3mm thickness or diamond plate(Also can choose other thickness ,such as 2mm,2.3mm,4mm,5mm,6mm)

King Pin
50# or 90#

Landing gear
28Ton

Accessory
One tooling box with a set of standard trailer tool

Electrical

Voltage
24V

Receptacle
7 ways (7 wire harness)

Lights
Front corner marker lamp :red ;reflector lamp :white

Side marker :orange
Rear lamp :red; rear reflector :white; turn single lamp :orange

Other

Usage		 This trailer is available for transporting large cargo of 100-3000 tons which cannot be disassembled in the industries of electricity, mines, chemical industry, building as well as bridge construction.


Painting ,marking and side guard can according to the customer's requirement

Over Length Flatbed Extendable Semi Trailer Double / Three Steering Axles

Over Length Flatbed Extendable Semi Trailer Double / Three Steering Axles

Our advantage

1, we can do the designs according to the customers' requirements


2,we can offer you the high quality and reasonable price


3,we can offer your a good after-sell service


4,we have strong prefessinal design team


5,prompt delivery.small order is welcome
