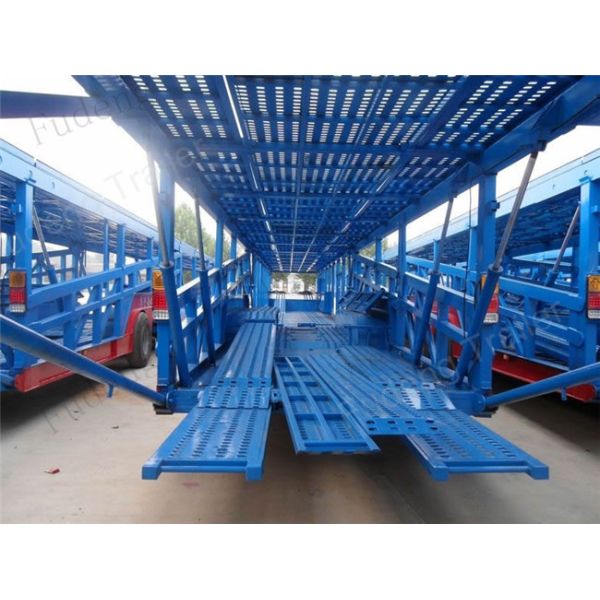

Steel Chassis Automatic Car Carrier Trailer Double Axles Double Floor
Steel Chassis Automatic Car Carrier Trailer Double Axles Double Floor
Steel Chassis Automatic Car Carrier Trailer Double Axles Double Floor
Steel Chassis Automatic Car Carrier Trailer Double Axles Double Floor
Specifications
Brand Name :
FUDENG Brand
Model Number :
Car carrier trailers
Certification :
CCC / ISO / SGS / BV
Place of Origin :
Shandong,China(Mainland)
MOQ :
One unit Car carrier trailers
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500Units per Month
Delivery Time :
20-30days after deposit
Packaging Details :
Nude packed, RORO or Bulk Cargo Shipping
Product name :
Car carrier trailers
Axles :
Fuwa/BPW/Chinese brand
Number of cars :
8 To 24 Sets
Usage :
Transport cars
Suspension :
Mechanical suspension
Color :
Customized
Material :
Steel
Length :
Customized Dimension
Price :
negotiation
Description

Double Floor Steel Chassis Auto Vehicle Transporter Truck Semi Trailer

Car carrier trailers Description :

A car-carrying trailer, known variously as a car carrier trailer, car hauler, auto transport trailer,

etc., is a type of trailer or semi-trailer designed to efficiently transport passenger vehicles via truck.

Like other semi-trailers, most commercial car-carrying trailer attach to the tractor using a fifth

wheel coupling. Trailers can either be enclosed, possessing walls like a conventional box trailer,

which affords the shipped vehicles more protection at the cost of lower capacity; or open, as in the commonly seen skeletal tube steel design, which exposes the vehicles to the elements but allows for greater carrying capacity.

Car carrier trailers Specification:

10 Car/SUV Transportation Semi Trailer

(These configurations are just for your reference,we will design&produce as your specific requirements.)
Model FLY9321TDP
Tire No. 4
Axle No. 2
Tire specification 11R22.5
Rear tread(mm) 1840/1840
Outside Dimension L×W×H 17000x2400x3000 mm
Main Frame Q345B manganese plates, automatic submerged arc welded
Floor Steel Sheet 3mm thickness or diamond plate
Suspension Steel leaf spring suspension system
Rated load 30-50 T
Wheel Rim 8
Pin Size 2' and 3.5' inter-changeable Pin
Spare Wheel Carrier One set of spare wheel carrier including a riser.
Braking System 2-Line compressed air brake system on all wheels with additional parking brake.
Brake Air Chamber Automatic Air Chambers
Electrical System 1. Voltage: 24v 2. Receptacle: 7 ways(7 wire harness)
Accessory One tooling box with a set of standard trailer tool
Landing gear Capacity of 28ton,factory brand
Lights System

LED electrical system to international standards includes taillights, sidelights and

direction indicators.
Loading Capacity Two floors,5cars each floor; 10cars in total.

Car carrier Trailer Model.

Steel Chassis Automatic Car Carrier Trailer Double Axles Double Floor

10 sets car carrier trailers.

Steel Chassis Automatic Car Carrier Trailer Double Axles Double Floor
