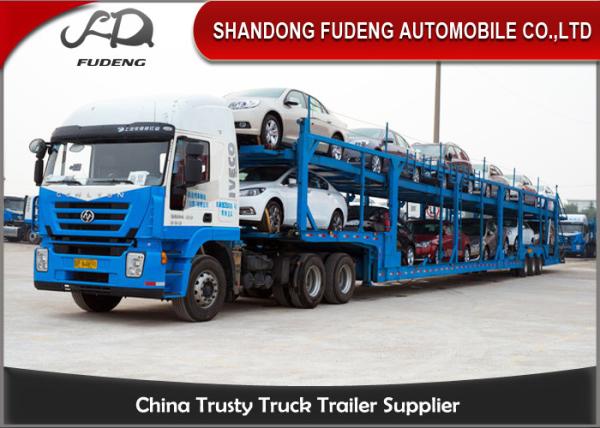

Double Axles Vehicle Transport Trailer Wheelbase Dimensions 10 Cars Carry
Double Axles Vehicle Transport Trailer Wheelbase Dimensions 10 Cars Carry
Double Axles Vehicle Transport Trailer Wheelbase Dimensions 10 Cars Carry
Double Axles Vehicle Transport Trailer Wheelbase Dimensions 10 Cars Carry
Specifications
Brand Name :
FUDENG Brand
Model Number :
Car carrier trailers
Certification :
CCC / ISO / SGS / BV
Place of Origin :
Shandong,China(Mainland)
MOQ :
One unit Car carrier trailers
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500Units per Month
Delivery Time :
20-30days after deposit
Packaging Details :
Nude packed, RORO or Bulk Cargo Shipping
Product name :
Car carrier trailers
Axles :
Fuwa/BPW/Chinese brand
Number of cars :
8 To 24 Sets
Usage :
Transport cars
Suspension :
Mechanical suspension
Color :
Customized
Material :
Steel
Length :
Customized Dimension
Price :
negotiation
Description

Tri axle car carrier trailer transport truck and trailer wheelbase dimensions

Car Carrier trailers Description :

A car-carrying trailer, known variously as a car carrier trailer, car hauler, auto transport trailer,

etc., is a type of trailer or semi-trailer designed to efficiently transport passenger vehicles via truck.

Like other semi-trailers, most commercial car-carrying trailer attach to the tractor using a fifth

wheel coupling. Trailers can either be enclosed, possessing walls like a conventional box trailer,

which affords the shipped vehicles more protection at the cost of lower capacity; or open, as in the commonly seen skeletal tube steel design, which exposes the vehicles to the elements but allows for greater carrying capacity.

Car carrier trailers Specification:

Manufacture 10 car carrier trailers/ auto vehicle transport truck trailer
Rated load 30T-60T
Loading Capacity Two floors,5cars each floor; 10cars in total
Outside Dimensions 18000x2400x3000 mm
Tyre No 12
Wheelbase 1310mm
Rear tread 1840/1840 mm
Axle NO. 2
Traction Pin 2' and 3.5' inter-changeable Pin
Landing gear Capacity of 28ton
Tire Specifications 11R22.5
Spare Tire Carrier One set of spare wheel carrier including a riser
Main Beam

Main Beams:Q345B manganese plates, automatic submerged arc

welded
ABS Optional
Suspension Steel leaf spring suspension system
Brake System

2-Line compressed air brake system on all wheels with additional

parking brake
Brake Chamber Automatic Air Chambers
Electrical System 1. Voltage: 24v 2. Receptacle: 7 ways(7 wire harness)
Lights System

Capacity of 28ton,factory brand Lights SystemLED electrical system to

international standards includes taillights, sidelights and direction

indicators.
Tool Box 1 box of standard tools
Floor Steel sheet 3mm thickness or diamond plate
Color and Logo Depends on the customer's requirement
Usage Mainly appropriate for the transportation of vehicle.

2 Axles Car carrier Trailer Model.

Double Axles Vehicle Transport Trailer Wheelbase Dimensions 10 Cars Carry

8 sets car carrier trailers.

Double Axles Vehicle Transport Trailer Wheelbase Dimensions 10 Cars Carry

Welcome to visit our factory!
