Tri - Axle Hydraulic Dump Semi Trailer U Or Square Shape 40CBM Box Dimension
Tri - Axle Hydraulic Dump Semi Trailer U Or Square Shape 40CBM Box Dimension
Tri - Axle Hydraulic Dump Semi Trailer U Or Square Shape 40CBM Box Dimension
Tri - Axle Hydraulic Dump Semi Trailer U Or Square Shape 40CBM Box Dimension
Specifications
Brand Name :
FUDENG Brand Dump Semi Trailers
Model Number :
Dump Semi Trailers
Certification :
ISO ,BV,SGS
Place of Origin :
Shandong,China(Mainland)
MOQ :
One unit Dump semi trailers
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500Units per Month
Delivery Time :
20-30days after deposit
Packaging Details :
Nude packing.Shipping by the Bulk cargo or Ro-Ro
Axles :
Fuwa/BPW/Chinese brand
Materal :
Steel
Shape :
U or Square shape
Landing Gear :
JOST 28Tons
Payload :
30-60Tons
Size :
9000mm X2500mm X3700 mm
Color :
Customized
Functions :
Transport sand,earth work, stone,etc
Price :
negotiation
Description

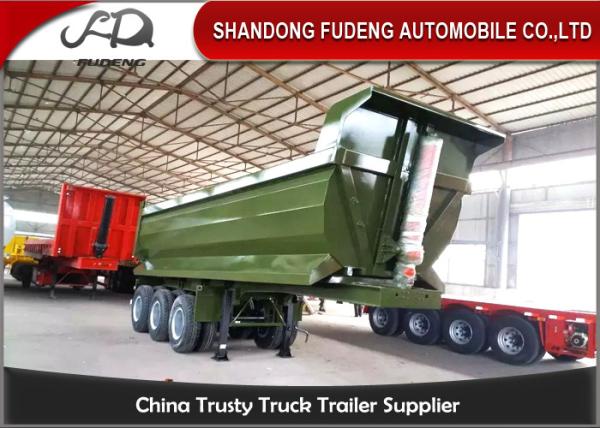

Tri-axles 60 tons rear dump tipper semi trailer 2 or 3 axlessand rock coal transport

U shape Dump semi Trailer equiped with HYVA hydraulic cylinder, which is famous

brand. It has more reliable and more safety.With access to a multi-sized dump trailer, FUDENG

Vehicle provides quality, reliable and delivers safe for any size project in oversea market. It is

a public works job or a private developer project.​

Specifications
Tank Body
Shape U shape
Dimension 9*2.7*1.85m (Outside)
Box Dimension 8.3*2.6*1.85m 40cbm
Payload 40T
Tare weight About 11T
Lifting system 196 hydraulic jacking Hyva Brand
Chassis
Frame Welding design or Special design Two beams.Square beam, connected by bolts and nuts, Q345B carbon steel material Two beams.
Frame Beam Upper and lower plate is 16mm and 18mm, middle is 8mm.height is 500 mm Bottom plate :5mm Side plate:5mm
Axle 3 axles, 16T FD Brand
Landing Gear Standard 28T JOST brand
King Pin 2.00 or 3.5 inch bolt-in king pin JOST brand
Suspension Mechanical suspension
Leaf Spring 90mm(W)*16mm(T)*10 Layer
Pneumatic WABCO RE 6 relay valve, 3 axles synchronization
Braking System
Tire 315/80R22.5 optional
ABS KEMI brand
Accessories One standard tool box
Voltage 24V

60Tons Dump semi trailers Model.

Tri - Axle Hydraulic Dump Semi Trailer U Or Square Shape 40CBM Box Dimension

3 Axle Dump Semi Trailer is ideal equipment to transport construction materials. It equipped with famous hydraulic lifting system hyva cylinder. It is also equiped with famous axle BPW or Fuwa brand. Its tires are also famous brand, Double Coin or Triangle brand as your optional choice.

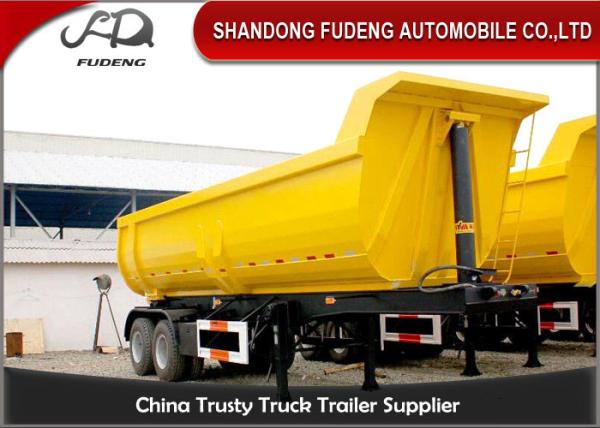

2 Axles U Shape Dump semi trailer.

Tri - Axle Hydraulic Dump Semi Trailer U Or Square Shape 40CBM Box Dimension

Welcome to visit our factory!
