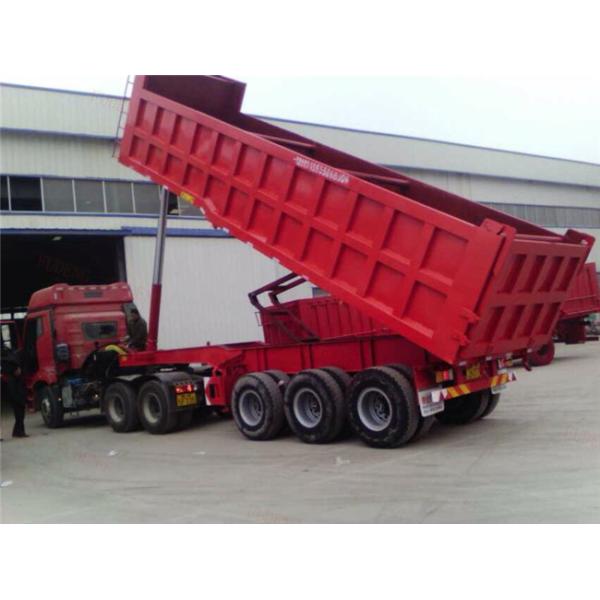

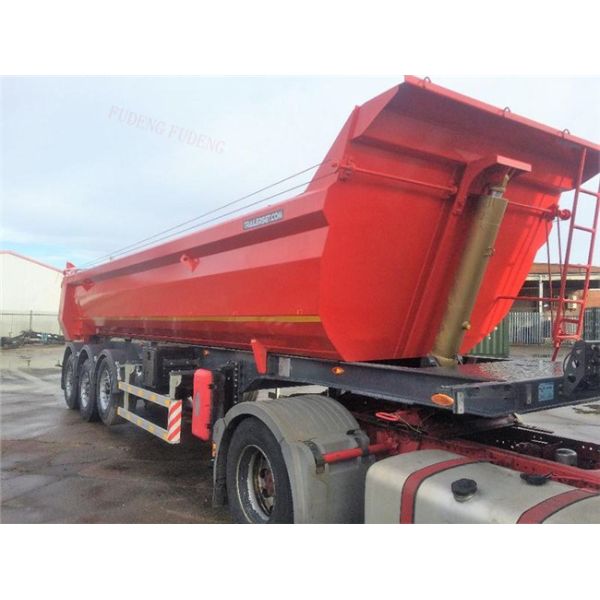

Three / Double Axle Heavy Duty Dump Trailers , Steel Frame Tipper Semi Trailer
Three / Double Axle Heavy Duty Dump Trailers , Steel Frame Tipper Semi Trailer
Three / Double Axle Heavy Duty Dump Trailers , Steel Frame Tipper Semi Trailer
Three / Double Axle Heavy Duty Dump Trailers , Steel Frame Tipper Semi Trailer
Specifications
Brand Name :
Fudeng
Model Number :
SDFD1704 dump semi trailer
Certification :
CE, ISO, CCC, SGS, ADR
Place of Origin :
Shandong, China
MOQ :
1 set
Payment Terms :
L/C, T/T or negotiate
Supply Ability :
600 sets per month
Delivery Time :
25-40 days after 30% deposit
Packaging Details :
Paint and wax spraying
Material :
Carbon Steel
Usage :
Transport sand, stone and bulk cargo
Color :
White, yellow, red, green, blue customized
Axle :
Fuwa or Bpw or Chinese brand axle
Suspension :
Mechanical or air suspension
Capacity :
40-80 ton available
Feature :
hyva hydraulic cyclinder
Size :
10000 mm*2500 mm*3500mm
Price :
negotiation
Description

Tipping semi trailer 3 axles dump truck trailer hyva hydraulic cyclinder

When you want a semi tipper to meet your haulage requirements Fudeng has one perfectly suited to the task, if not Fudeng has the manufacturing skills to make it for you.

Tipper Trailer Specifications
Chassis
Frame Welding design or Special design I beam, connected by bolts and nuts, Q345B carbon steel material
Frame Beam Upper and lower plate is20mm,middle is10mm.height is 500 mm
Axle 2 or 3 axles, BPW/FUWA/HUAJING brand
Landing Gear JOST (D200T) or CHINA BRAND 28T
King Pin JOST 2.00 or 3.5 inch bolt-in king pin
Suspension Mechanical suspension/Germany or America type/air suspension
Leaf Spring 90mm(W)*13mm(T)*10 Layer/90mm(W)*16mm(T)*10 Layer/ 100mm(W)*16mm(T)*10 Layer
Pneumatic Braking System WABCO RE 6 relay valve; Spring brake chamber (TKL brand); one piece of 45L air tanks.
Rim 8.5-20,9.0-20,8.25-22.5,9.0-22.5 optional
Tire 11.00R20,12.00R20,11R22.5,12R22.5,315/80R22.5 Tire optional
ABS Optional
Accessories One standard tool box
Voltage 24V

Three / Double Axle Heavy Duty Dump Trailers , Steel Frame Tipper Semi Trailer

When you’re hauling grain, rocks, sand, gravel or waste, all the semi tippers available from Fudeng factory are built to withstand the harshest conditions, only the very best materials and world class manufacturing know how are used to create what is regarded as one of the finest quality and toughest semi trailers around.

Three / Double Axle Heavy Duty Dump Trailers , Steel Frame Tipper Semi Trailer

Look through the pictures to discover the full range and specifications of each individual Semi Tipper trailer we offer, if you can’t find what you want then give us a call and we will work with you to make the trailer you want.
