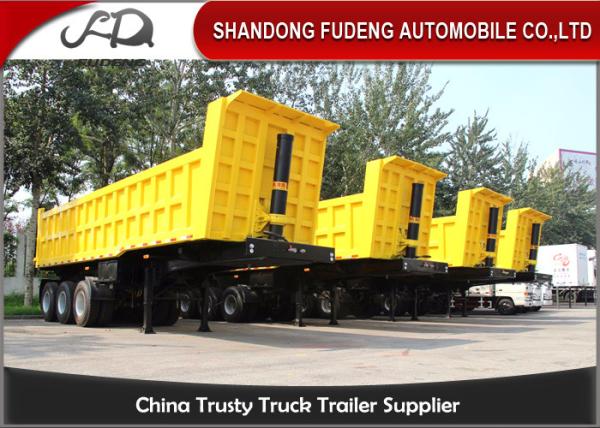

35 CBM 60 Ton End Dump Semi Trailer , Steel Mechanical Dump Trailer
35 CBM 60 Ton End Dump Semi Trailer , Steel Mechanical Dump Trailer
35 CBM 60 Ton End Dump Semi Trailer , Steel Mechanical Dump Trailer
35 CBM 60 Ton End Dump Semi Trailer , Steel Mechanical Dump Trailer
Specifications
Brand Name :
Fudeng
Model Number :
SDFD1704 dump semi trailer
Certification :
CE, ISO, CCC, SGS, ADR
Place of Origin :
Shandong, China
MOQ :
1 set
Payment Terms :
L/C, T/T or negotiate
Supply Ability :
600 sets per month
Delivery Time :
25-40 days after 30% deposit
Packaging Details :
Paint and wax spraying
Material :
Carbon Steel
Usage :
Transport sand, stone and bulk cargo
Color :
White, yellow, red, green, blue customized
Axle :
Fuwa or Bpw or Chinese brand axle
Suspension :
Mechanical or air suspension
Capacity :
40-80 ton available
Feature :
hyva hydraulic cyclinder
Load capacity :
50 ton to 80 ton
Price :
negotiation
Description

35 cbm 60 ton end dump trailer tractor hydraulic tipping mechanical suspension

The Fudeng 60 ton semi tipper trailer designed specifically for the needs of grain, sand , small stone, offering a high quality tipping trailer that maximizes payload, at a competitive price.

35 CBM 60 Ton End Dump Semi Trailer , Steel Mechanical Dump Trailer

Tipper Trailer Specifications
Chassis
Frame Welding design or Special design I beam, connected by bolts and nuts, Q345B carbon steel material
Frame Beam Upper and lower plate is20mm,middle is10mm.height is 500 mm
Axle 2 or 3 axles, BPW/FUWA/HUAJING brand
Landing Gear JOST (D200T) or CHINA BRAND 28T
King Pin JOST 2.00 or 3.5 inch bolt-in king pin
Suspension Mechanical suspension/Germany or America type/air suspension
Leaf Spring 90mm(W)*13mm(T)*10 Layer/90mm(W)*16mm(T)*10 Layer/ 100mm(W)*16mm(T)*10 Layer
Pneumatic Braking System WABCO RE 6 relay valve; Spring brake chamber (TKL brand); one piece of 45L air tanks.
Rim 8.5-20,9.0-20,8.25-22.5,9.0-22.5 optional
Tire 11.00R20,12.00R20,11R22.5,12R22.5,315/80R22.5 Tire optional
ABS Optional
Accessories One standard tool box
Voltage 24V

35 CBM 60 Ton End Dump Semi Trailer , Steel Mechanical Dump Trailer

Look through the pictures to discover the full range and specifications of each individual Semi Tipper trailer we offer, if you can’t find what you want then give us a call and we will work with you to make the trailer you want.
