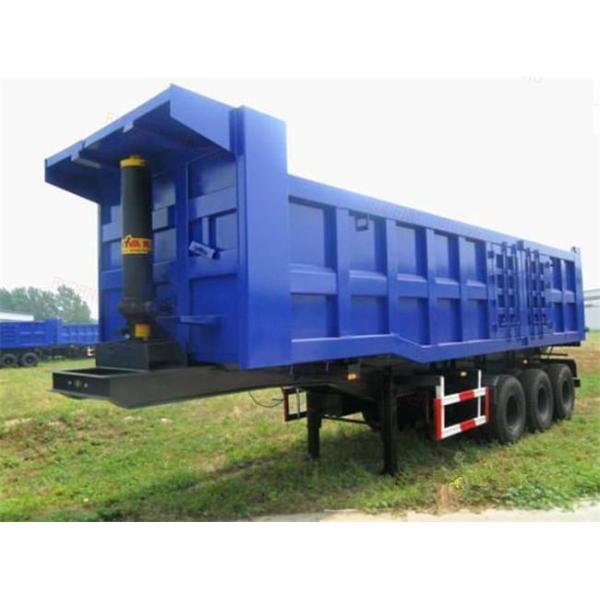

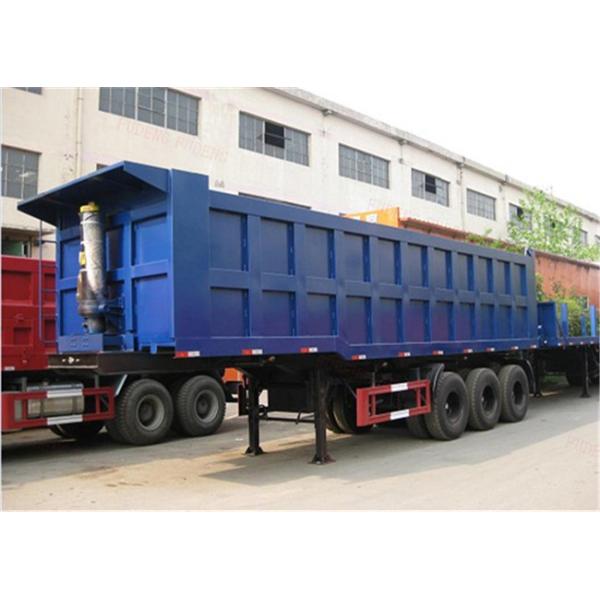

 Hyva Hydraulic Cylinder Dump Semi Trailer 40T-100T Payload Steel Q345B Frame
 Hyva Hydraulic Cylinder Dump Semi Trailer 40T-100T Payload Steel Q345B Frame
 Hyva Hydraulic Cylinder Dump Semi Trailer 40T-100T Payload Steel Q345B Frame
 Hyva Hydraulic Cylinder Dump Semi Trailer 40T-100T Payload Steel Q345B Frame
Specifications
Brand Name :
Fudeng
Model Number :
SDFD1704 dump semi trailer
Certification :
CE, ISO, CCC, SGS, ADR
Place of Origin :
Shandong, China
MOQ :
1 set
Payment Terms :
L/C, T/T or negotiate
Supply Ability :
600 sets per month
Delivery Time :
25-40 days after 30% deposit
Packaging Details :
Paint and wax spraying
Material :
Carbon Steel
Usage :
Transport sand, stone and bulk cargo
Color :
White, yellow, red, green, blue customized
Axle :
Fuwa or Bpw or Chinese brand axle
Suspension :
Mechanical or air suspension
Capacity :
40-80 ton available
Feature :
hyva hydraulic cyclinder
Size :
10000 mm*2500 mm*3500mm
Price :
negotiation
Description

Large capacity dumping semi trailer transport coal , grain , sand

When you’re hauling grain, rocks, sand, gravel or waste, all the semi tippers available from Fudeng factory are built to withstand the harshest conditions, only the very best materials and world class manufacturing know how are used to create what is regarded as one of the finest quality and toughest semi trailers around.

Specifications
Tipper Body
Shape Rectangle or U shape
Dimension 7.5-12m×2.5×4m (Outside)
Payload 40T-100T
Tare weight About 7.5T-15T
Lifting system Full set of Hyva hydraulic system/Chinese brand
Chassis
Frame Welding design or Special design I beam, connected by bolts and nuts, Q345B carbon steel material
Frame Beam Upper and lower plate is20mm,middle is10mm.height is 500 mm
Axle 2 or 3 axles, BPW/FUWA/HUAJING brand
Landing Gear JOST (D200T) or CHINA BRAND 28T
King Pin JOST 2.00 or 3.5 inch bolt-in king pin
Suspension Mechanical suspension/Germany or America type/air suspension
Leaf Spring 90mm(W)*13mm(T)*10 Layer/90mm(W)*16mm(T)*10 Layer/ 100mm(W)*16mm(T)*10 Layer
Pneumatic Braking System WABCO RE 6 relay valve; Spring brake chamber (TKL brand); one piece of 45L air tanks.
Rim 8.5-20,9.0-20,8.25-22.5,9.0-22.5 optional
Tire 11.00R20,12.00R20,11R22.5,12R22.5,315/80R22.5 Tire optional
ABS Optional
Accessories One standard tool box
Voltage 24V
Packing and shipping
Painting Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Shipping Terms By Bulk Cargo/RORO


 Hyva Hydraulic Cylinder Dump Semi Trailer 40T-100T Payload Steel Q345B Frame

 Hyva Hydraulic Cylinder Dump Semi Trailer 40T-100T Payload Steel Q345B Frame

Look through the pictures to discover the full range and specifications of each individual Semi Tipper trailer we offer, if you can’t find what you want then give us a call and we will work with you to make the trailer you want.
